Запчасти Case IH 56FTS (46) - ELECTRIC STACK DRIVE CONTROL

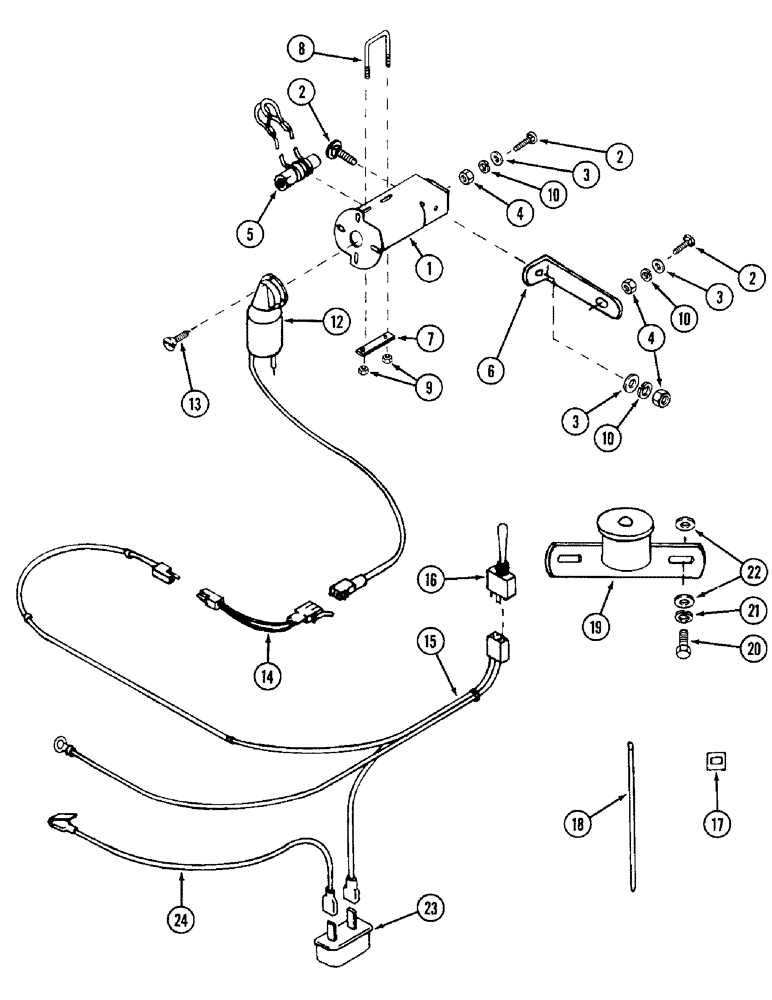

Схема запчастей Case IH 56FTS - (46) - ELECTRIC STACK DRIVE CONTROL

Артикул

Название

Примечание

Количество

1

1960244C1

DRIVE PLATE

BRACKET - chute drive

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

3

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

1960245C1

CABLE ASSY.

CABLE - drive

1шт.

6

1960254C1

BRACKET

- level wind

1шт.

7

1960247C1

STRAP

1шт.

8

1960246C1

U-BOLT

1шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

10

492-11038

LOCK WASHER,3/8"

3шт.

12

1960248C1

MOTOR

ASSEMBLY - chute drive

1шт.

13

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - 1/4 NC x 1/2 inch, tapping

3шт.

14

1960256C1

PLUG

ADAPTER - wire harness

1шт.

15

1960250C1

ELECTRICAL WIRE

HARNESS - electrical, chute drive

1шт.

16

1960249C1

SWITCH

- chute drive

1шт.

17

1960251C1

CLIP

- retaining

2шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

19

1976313C1

BRACKET

- switch mounting

1шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

4шт.

23

1976315C1

BREAKER

- circuit

1шт.

24

1976232C1

ELECTRICAL WIRE

WIRE - adapter

1шт.

Выбрано товаров: 23
