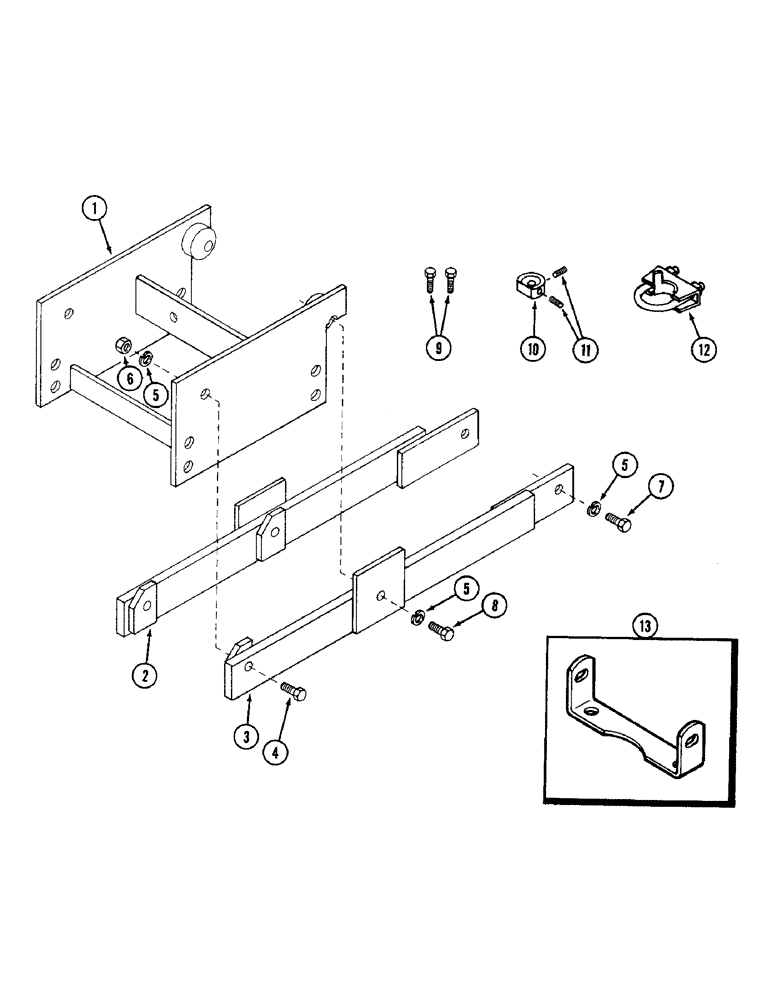

Запчасти Case IH 56FTS (44) - MOUNTING KIT, 235 TRACTORS

1

1960478C1

BRACKET

- mounting

1шт.

2

1960525C1

BRACE

- mounting, right

1шт.

3

1960526C1

BRACE

- mounting, left

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- hex special, 12 MM - 1.25 x 35 MM

2шт.

8

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

9

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

10

1954998C1

SPACER

- wheel stop

1шт.

11

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - hex socket head, 3/8 NC x 3/8 inch

2шт.

12

1954999C1

STOP

- wheel

1шт.

13

1960517C1

SUPPORT

- housing (Not used in this application)

1шт.
