Запчасти Case IH 56FTS (42) - MOUNTING BRACKETS AND PTO SHIELD

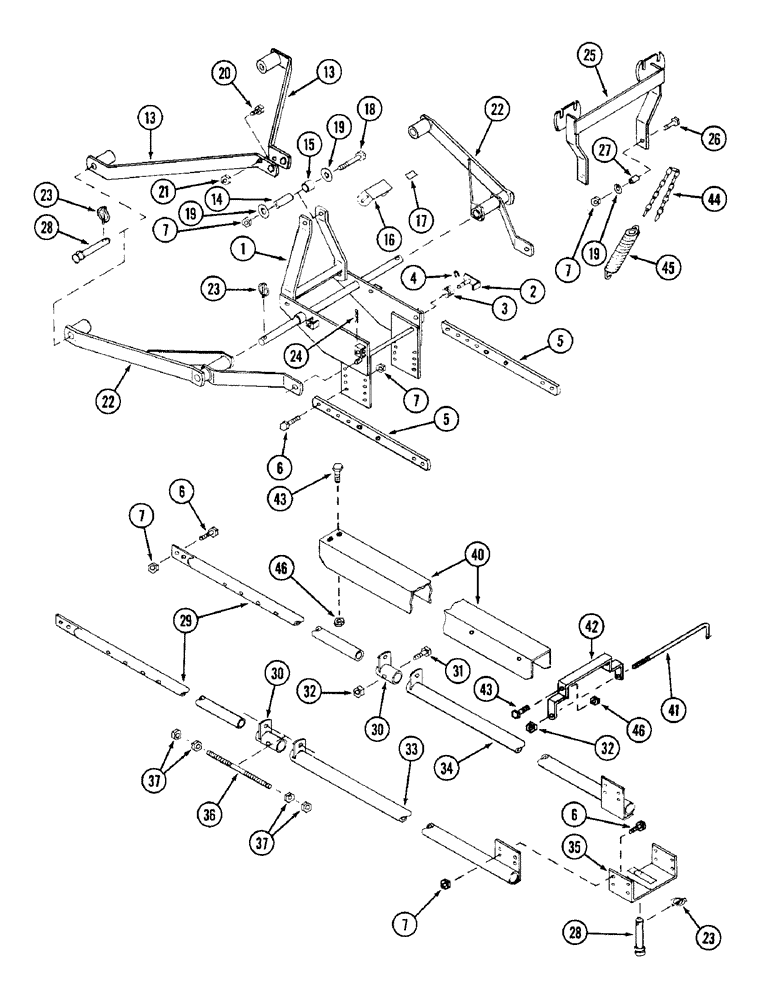

Схема запчастей Case IH 56FTS - (42) - MOUNTING BRACKETS AND PTO SHIELD

Артикул

Название

Примечание

Количество

1

1976300C1

BRACKET

ASSEMBLY - front mounting

1шт.

2

1958440C1

PIN

ASSEMBLY - quick release

4шт.

3

1958442C1

SPRING

- lock pin

4шт.

4

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

5

1958381C1

BAR

SUPPORT - shaft

2шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

12шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

15шт.

13

1346795C1

BRACKET

ARM ASSEMBLY - top mast

2шт.

14

1973217C1

SPACER

- 17/32 x 3/4 x 2-3/8 inch

1шт.

15

1346796C1

SPACER

- 53/64 x 1-3/64 x 1-5/16 inch

1шт.

16

1976305C1

BRACKET

- bumper

1шт.

17

1958352C1

PAD

- bracket

4шт.

18

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

19

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

20

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

21

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

22

1346797C1

LINK

- side mounting

2шт.

23

3057346R11

LINCH PIN

PIN - lock

7шт.

24

79005C1

PIN

- cotter, hair, 5/32 inch diameter

2шт.

25

1346798C1

SPRING

BRACKET - spring anchor

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

384678R1

SPACER

- 33/64 x 3/4 x 1/2 inch

2шт.

28

1958226C1

PIN

- locating

5шт.

29

1346799C1

SUPPORT TUBE

TUBE - front support

2шт.

30

1349500C1

BRACKET

- front support

2шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

33

1349501C1

BRACKET

- left rear support

1шт.

34

1349502C1

BRACKET

- right rear support

1шт.

35

1349503C1

BRACKET

SUPPORT - rear mounting

1шт.

36

1349504C1

ROD

STUD - 5/8 NC x 11 inch

2шт.

37

425-1010

NUT,5/8"-11, G5

8шт.

40

1349509C1

SHIELD

GUARD - PTO shaft

1шт.

41

1349511C1

BOLT

L-BOLT

1шт.

42

1349510C1

BRACKET

- PTO guard

1шт.

43

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

44

468032R1

CHAIN (AG)

CHAIN - lift

2шт.

45

1960268C1

SPRING

- tension

4шт.

46

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

4шт.

Выбрано товаров: 39
