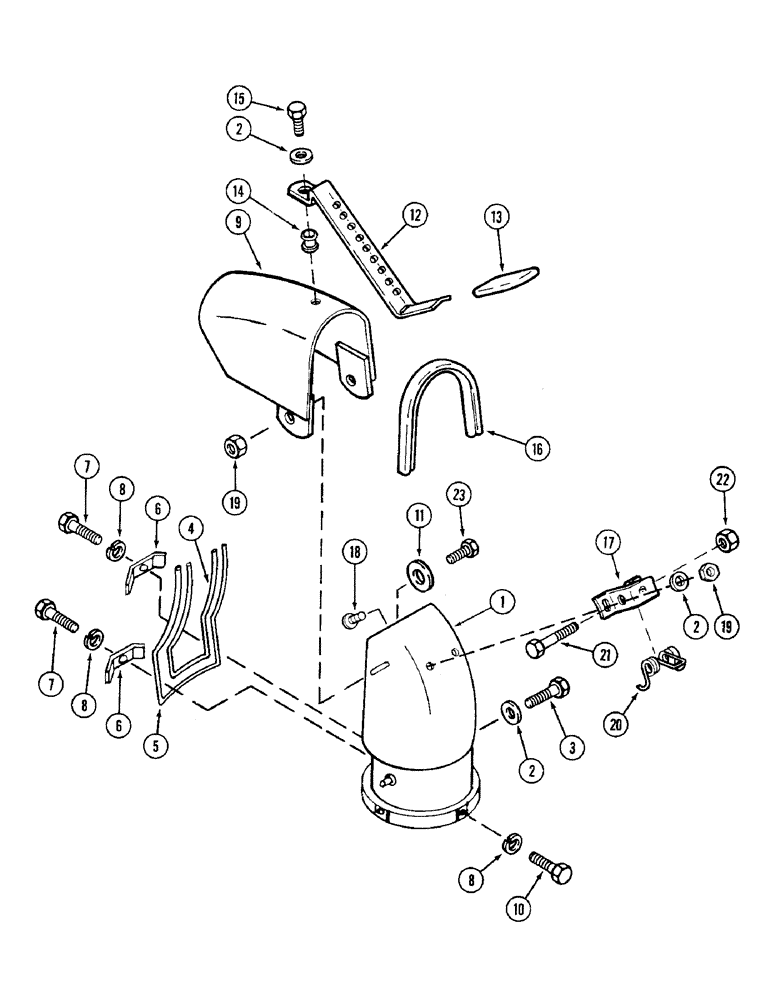

Запчасти Case IH 56FTS (32) - DISCHARGE CHUTE

1

1349518C1

SPOUT, DISCHARGE

ELBOW - discharge chute

1шт.

2

625533R1

WASHER

- flat, 9/32 x 1 x 3/64 inch

2шт.

3

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

4

1958348C1

GUARD

WIRE - guard, small

1шт.

5

1958349C1

GUARD

WIRE - guard, large

1шт.

6

1958350C1

BRACKET

- guard

2шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

1349519C1

DEFLECTOR

- discharge chute

1шт.

10

415-410

BOLT - hex, 1/4 NC x 5/8 inch, grade 2

4шт.

11

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

12

1346793C1

STRAP

- deflector lock

1шт.

13

1349573C1

HANDLE

- rubber cover

1шт.

14

1346794C1

GROMMET

- rubber

1шт.

15

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

16

1346790C1

SEAL

- deflector

1шт.

17

1346791C1

BRACKET

- locking

1шт.

18

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

2шт.

19

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

20

1346792C1

SPRING

- discharge chute

1шт.

21

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

22

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.
