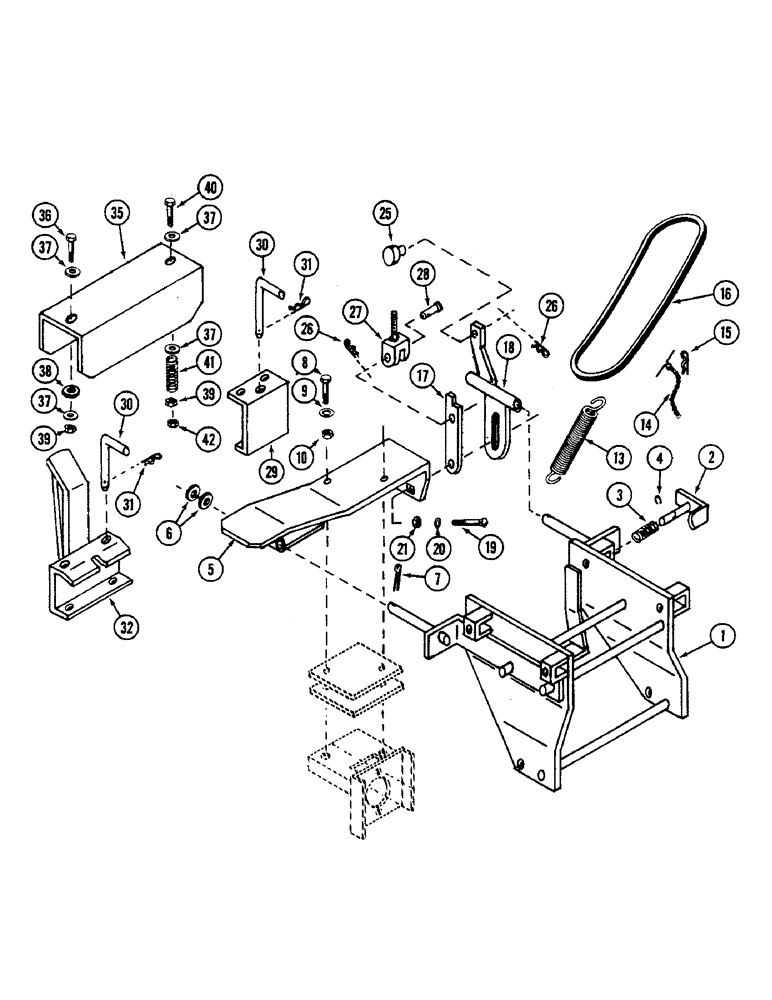

Запчасти Case IH 48FEB (12) - HEADER MOUNTING FRAME, 48 FEB SNOW THROWER

1

1958359C1

FRAME

- header mounting

1шт.

2

1958440C1

PIN

- quick release

4шт.

3

1958442C1

SPRING

- pin tension

4шт.

4

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

5

1958320C1

BRACKET

- gearbox adjusting

1шт.

6

495827R1

SPACER,1" Tube x 1/2"

- adjusting bracket

2шт.

7

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

1958333C1

SPRING

- lift

2шт.

14

1958334C1

CHAIN (AG)

CHAIN - retaining

2шт.

15

480523R1

HAIR PIN COTTER

2шт.

16

1960257C1

BELT,0.620" W x 43.16" L

V-BELT -, Drive 0.620" W x 43.16" L

1шт.

17

1958327C1

LINK

- over center

1шт.

18

1958325C1

BRACKET

- gearbox actuating

1шт.

19

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

1шт.

20

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

21

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

25

1958432C1

ANCHOR

PIN - anchor

1шт.

26

407207R1

CLIP

PIN - hair (Package of 50)

4шт.

27

1958326C1

TURNBUCKLE

- actuating bracket

1шт.

28

23066R1

CLEVIS PIN,3/8" x 1 7/16"

PIN - clevis

1шт.

29

1958332C1

BRACKET

- spring anchor

1шт.

30

1958192C1

PIN

- locating

3шт.

31

407207R1

CLIP

PIN - hair (Package of 50)

3шт.

32

1958331C1

BRACKET

- mounting

1шт.

35

1958328C1

COVER

- PTO

1шт.

36

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

37

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

1шт.

38

1958329C1

WASHER

- neoprene

1шт.

39

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

40

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

41

1958442C1

SPRING

- tension

1шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
