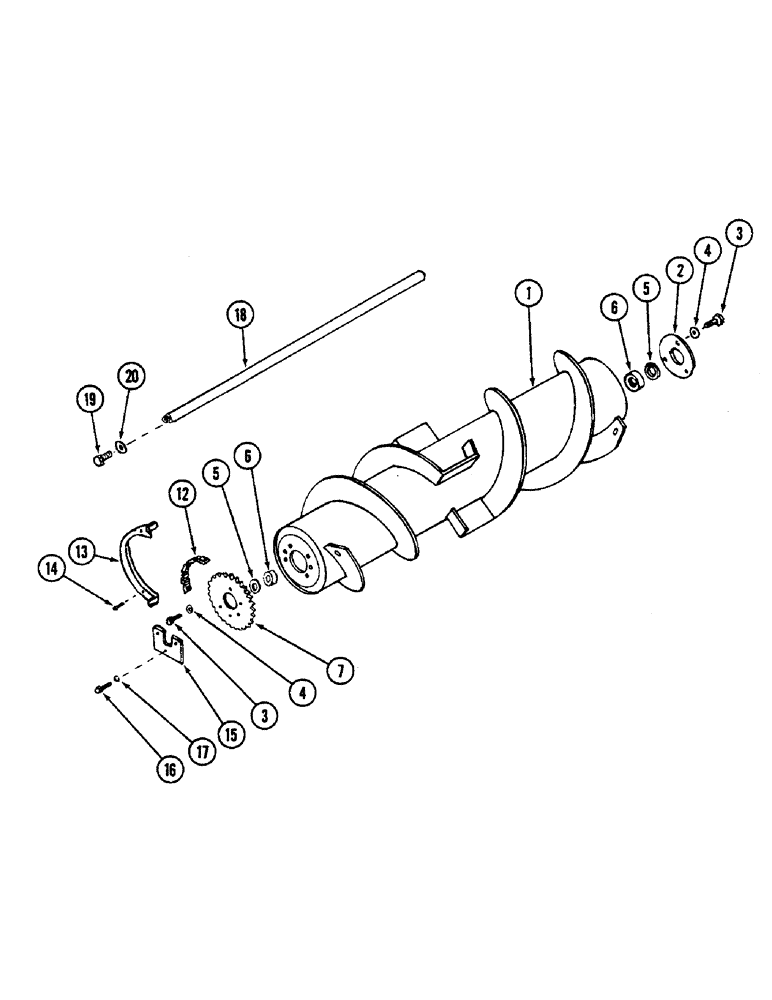

Запчасти Case IH 48FEB (10) - AUGER, 48 FEB SNOW THROWER

1

1958399C1

AUGER

- snow thrower

1шт.

2

462360R1

FLANGED BEARING

- bearing

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

1954930C1

WASHER

- backup, bearing

2шт.

6

1958383C1

BALL BEARING,1" ID x 2" OD x 1.0629"

BEARING - auger

2шт.

7

1958341C1

SPROCKET ASSY.

SPROCKET - auger

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive (See note)

1шт.

13

1958343C1

GUARD

- chain

2шт.

14

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

4шт.

15

1958342C1

PLATE

- auger mounting

1шт.

16

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 5/8 inch

3шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

18

1958340C1

SHAFT

- auger

1шт.

19

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
