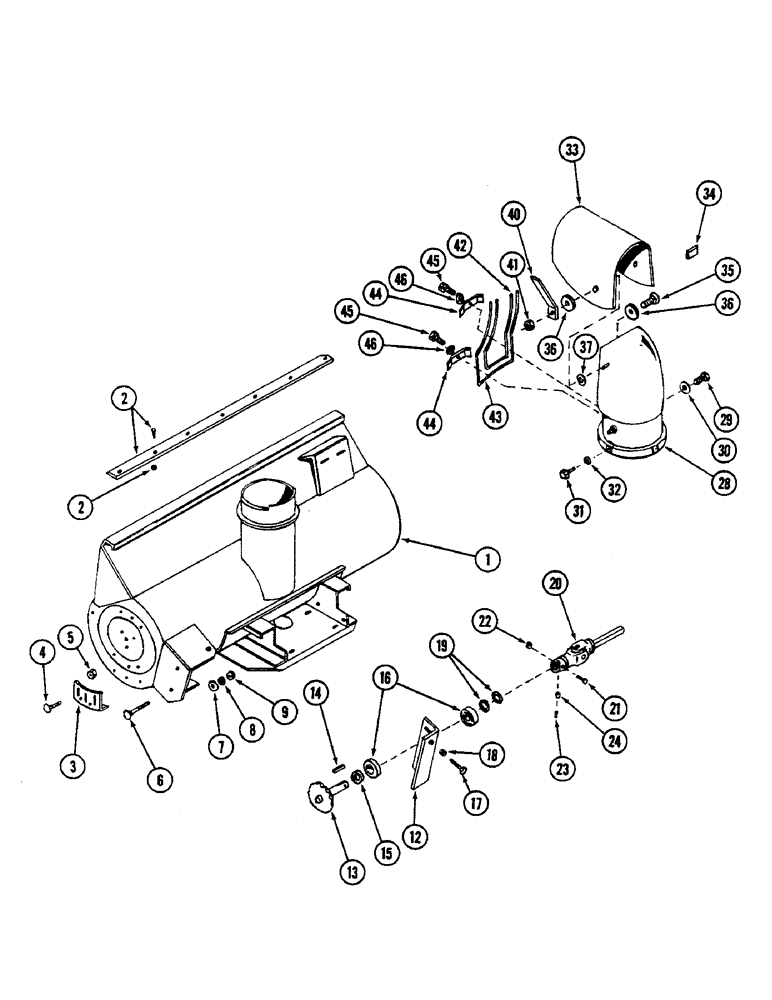

Запчасти Case IH 48FEB (08) - AUGER HOUSING AND DISCHARGE CHUTE, 48 FEB SNOW THROWER

1

1958396C1

HEAT-EXCHANGER

HOUSING - auger

1шт.

2

1960260C1

BLADE

REPAIR KIT - scraper blade

1шт.

3

1958398C1

SHOE

- skid

2шт.

4

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

6шт.

6

1958395C1

BOLT,1/2" - 13 x 3 1/2", Full Thd

- special, full thread

2шт.

7

195-105

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 1/16 inch

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

1958344C1

HOUSING ASSY.

BRACKET - jackshaft

1шт.

13

1958345C1

SPROCKET ASSY.

SPROCKET - jackshaft

1шт.

14

1958346C1

KEY

- jackshaft

1шт.

15

1958394C1

SPACER

- jackshaft

1шт.

16

475627R91

BALL BEARING,19.05mm ID x 41.27mm OD x 12.7mm W

BEARING - jackshaft

2шт.

17

718031R1

SET SCREW

- adjusting

1шт.

18

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

1шт.

19

43374D

SPRING WASHER

- bearing backup

2шт.

20

1958354C1

YOKE

JOINT ASSEMBLY - universal

1шт.

21

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

1шт.

22

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex, 1/4 inch NC

1шт.

23

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - hex socket set, 3/8 NC x 5/8 inch

1шт.

24

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

28

1958347C1

SPOUT, DISCHARGE

ELBOW - discharge chute

1шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

30

282328C1

WASHER

- cable

1шт.

31

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

33

1958351C1

DEFLECTOR

- discharge chute

1шт.

34

1958352C1

PAD

- deflector

1шт.

35

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

36

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

4шт.

37

193-72

LOCK WASHER

- internal/external lock

2шт.

40

1958353C1

STRAP

- locking

2шт.

41

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

42

1958348C1

GUARD

WIRE - guard, small

1шт.

43

1958349C1

GUARD

WIRE - guard, large

1шт.

44

1958350C1

BRACKET

- guard

2шт.

45

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
