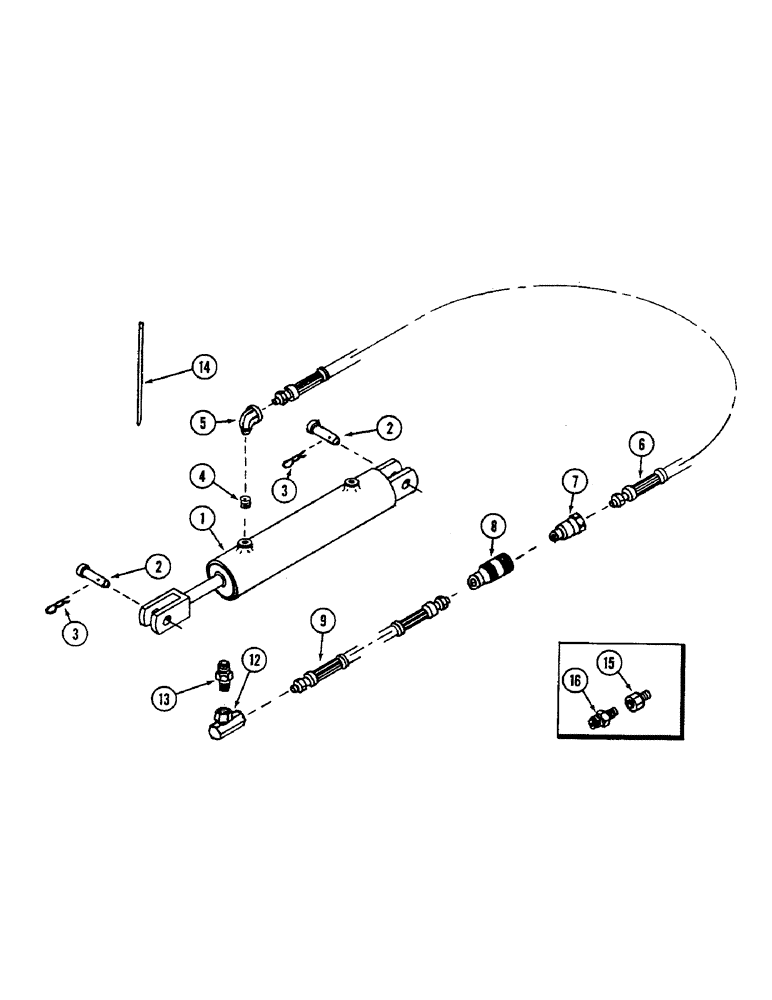

Запчасти Case IH 48FEB (06) - LIFT CYLINDER SYSTEM, 48 FEB SNOW THROWER

1

1958335C1

CYLINDER

ASSEMBLY - lift

1шт.

2

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

3

480523R1

HAIR PIN COTTER

2шт.

4

1958337C1

ORIFICE

- flow

1шт.

5

1958336C1

ELBOW

- hydraulic special

1шт.

6

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

6.35 mm ID x 2285.00 mm

1шт.

7

166123C91

COUPLING

COUPLER - male

1шт.

8

166122C92

ASSEMBLY

COUPLER - female

1шт.

9

1336714C1

HYDRAULIC HOSE

HOSE - hydraulic, 14-3/4 inch long

1шт.

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - hose (Not shown)

2шт.

12

1960241C1

ELBOW

- special

1шт.

13

443979

HYD CONNECTOR

CONNECTOR - straight

1шт.

14

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

3шт.

15

1960272C1

FITTING

ADAPTOR - male straight

1шт.

16

443991

PIPE

CONNECTOR - straight

1шт.

Note - 1346703C1 Seal Kit (for unmarked cylinders) 07/25/96

1шт.

Note - 1346704C1 Seal Kit (for Columbus cylinders) 07/25/96

1шт.
