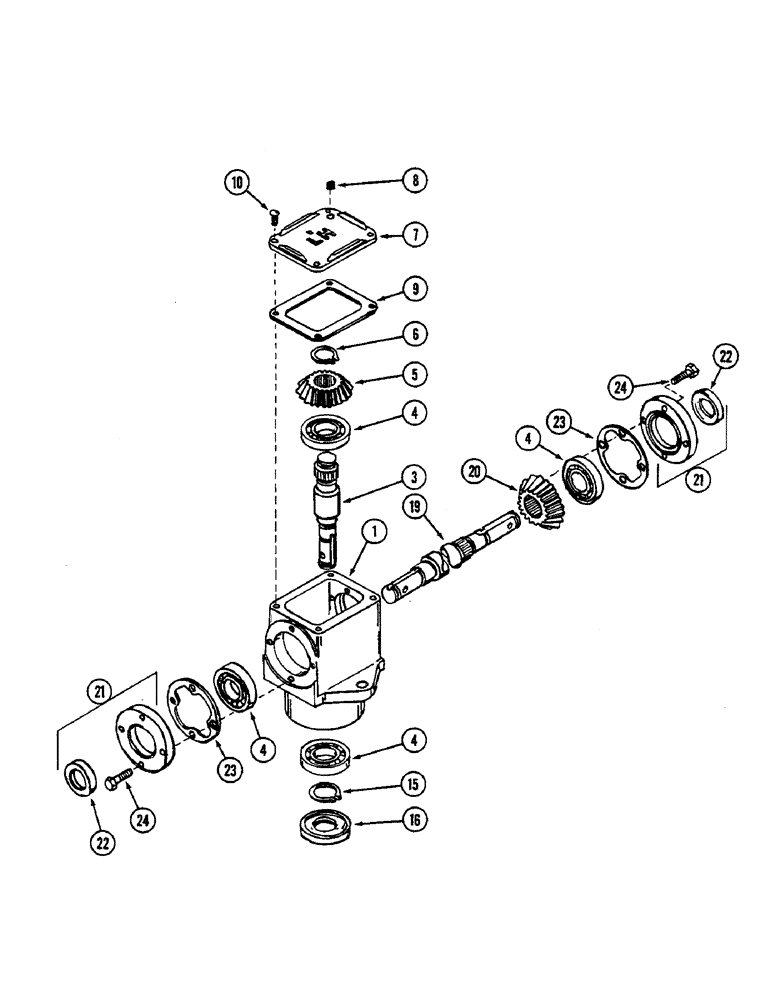

Запчасти Case IH 48FEB (16) - GEARBOX, 48 FEB SNOW THROWER

1976428C1

GEARBOX ASSY

GEARBOX ASSEMBLY - snow thrower

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gearbox (Order 1976428C1)

1шт.

3

1976431C1

SHAFT

- output

1шт.

4

1976434C1

BALL BEARING

BEARING - ball

4шт.

5

1976429C1

GEAR

- output shaft

1шт.

6

1976437C1

RING

- retaining

1шт.

7

1976432C1

COVER

- gearbox

1шт.

8

1976444C1

PLUG

- fill

1шт.

9

1976433C1

GASKET

- gearbox cover

1шт.

10

1976440C1

SELF-TAP SCREW

BOLT - gearbox cover retaining

4шт.

15

1976436C1

RING

- retaining

1шт.

16

1976438C1

OIL SEAL

- oil

1шт.

19

1976430C1

SHAFT

- input

1шт.

20

1976435C1

GEAR

- input shaft

1шт.

21

1976441C1

CAP ASSY.

CAP ASSEMBLY - side

2шт.

22

1976442C1

OIL SEAL

- oil

1шт.

23

1976439C1

GASKET

- side cap

2шт.

24

1976443C1

BOLT,Hex

- side cap retaining

8шт.
