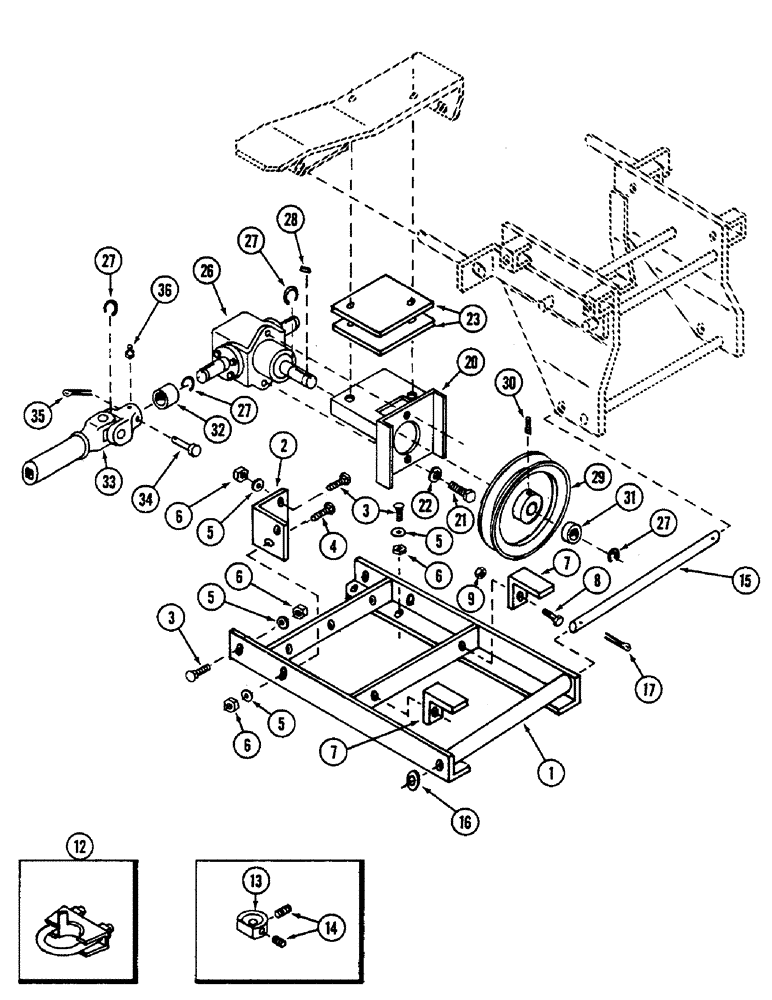

Запчасти Case IH 48FEB (14) - MAIN FRAME AND GEARBOX, 48 FEB SNOW THROWER

1

1958355C1

FRAME

- main

1шт.

2

1958356C1

BRACKET

- lift

1шт.

3

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

1шт.

4

5550796R1

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

1шт.

5

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

1шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

9шт.

7

1958357C1

BRACKET

- stop

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

12

1954999C1

STOP

- wheel, left

1шт.

13

1954998C1

SPACER

STOP - wheel, right

1шт.

14

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - hex socket set, 3/8 NC x 3/8 inch

2шт.

15

1958358C1

PIN

- tilt

1шт.

16

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 3/64 inch

2шт.

17

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

20

1960259C1

BRACKET

- gearbox mounting

1шт.

21

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

1958321C1

PLATE

- gearbox spacer

2шт.

26

REF

INSTRUCTION

GEARBOX ASSEMBLY - snow thrower (See page 16)

1шт.

27

619467R1

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

4шт.

28

1958346C1

KEY

- gearbox

1шт.

29

1958323C1

PULLEY

- belt

1шт.

30

85-58

SET SCREW

BOLT - square head, 5/16 NC x 1/2 inch

1шт.

31

1958338C1

SPACER

- pulley

1шт.

32

892736R1

SPACER,1 1/8" Tube x 5/8"

- gearbox

1шт.

33

1958324C1

YOKE

JOINT ASSEMBLY - universal

1шт.

34

1976451C1

PIN

- shear

4шт.

35

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

36

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease

1шт.
