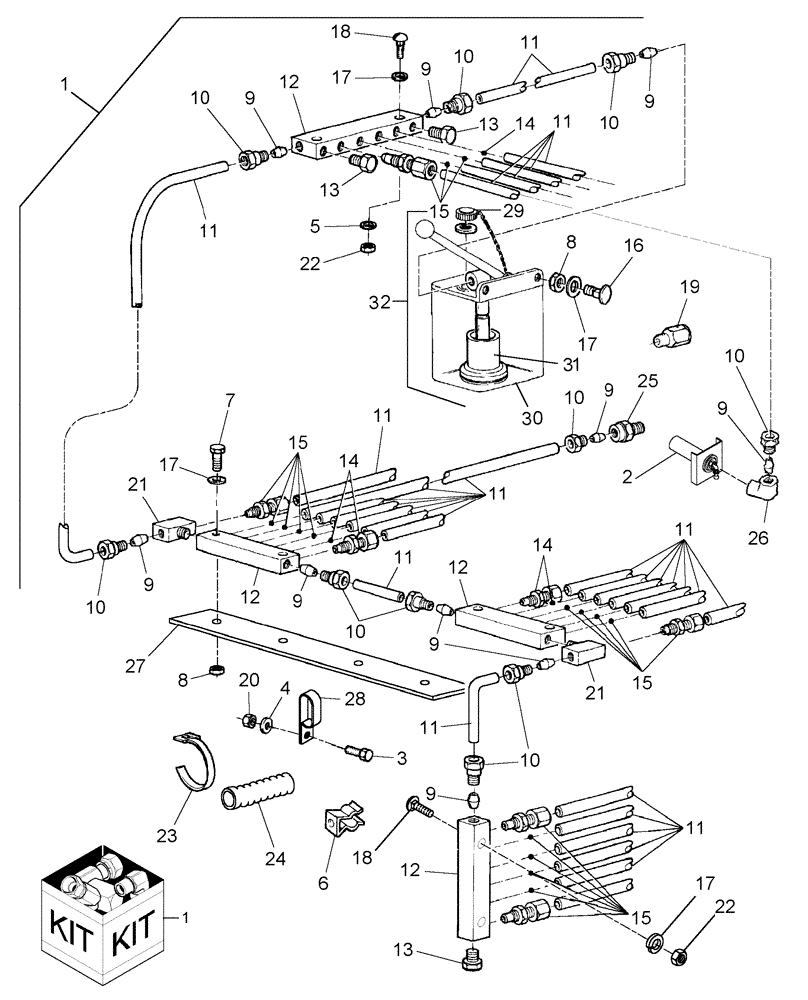

Запчасти Case IH SBX550 (045) - MANUAL OILER KIT (88) - ACCESSORIES

1

87014548

ATTACHMENT

Manual Oiler, Includes: Instructions

1шт.

2

132451

PIN

Clevis, Lube

1шт.

3

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

1шт.

4

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

5

495-11028

WASHER,1/4", SAE

4шт.

6

86629501

CLIP

Speed

3шт.

7

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

8

825-1406

NUT,M6, Cl 8

4шт.

9

576894

CONE TYPE FERRULE

32шт.

10

576895

NUT,5/16" - 24

32шт.

11

9817659

PLASTIC-RUBBER TUBE

1шт.

12

799336

DUCT

4шт.

13

576896

PLUG

1шт.

14

9602844

ADJUSTMENT SCREW

1шт.

15

86589363

ADJUSTMENT SCREW

1шт.

16

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

18

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

4шт.

19

9842504

ADAPTER

2шт.

20

825-1404

NUT,M4, Cl 8

1шт.

21

9842503

HYD CONNECTOR

2шт.

22

425-104

NUT,1/4"-20, Cl 5

6шт.

23

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

24

702648

RIGID TUBE,6.35 mm OD, 127 mm Length

Plastic

4шт.

25

86516715

HYD CONNECTOR

11шт.

26

9842502

ELBOW

90°

11шт.

27

86977508

BRACKET

1шт.

28

332401

WIRE CLAMP,7.9mm, Coat, 4.2mm Bolt Hole, P Type

5/16"

1шт.

29

87014974

FILLER CAP

1шт.

30

87014972

RESERVOIR

Oil

1шт.

31

87014973

KIT

Filter

1шт.

32

9842501

HYDRAULIC PUMP

Lube

1шт.
