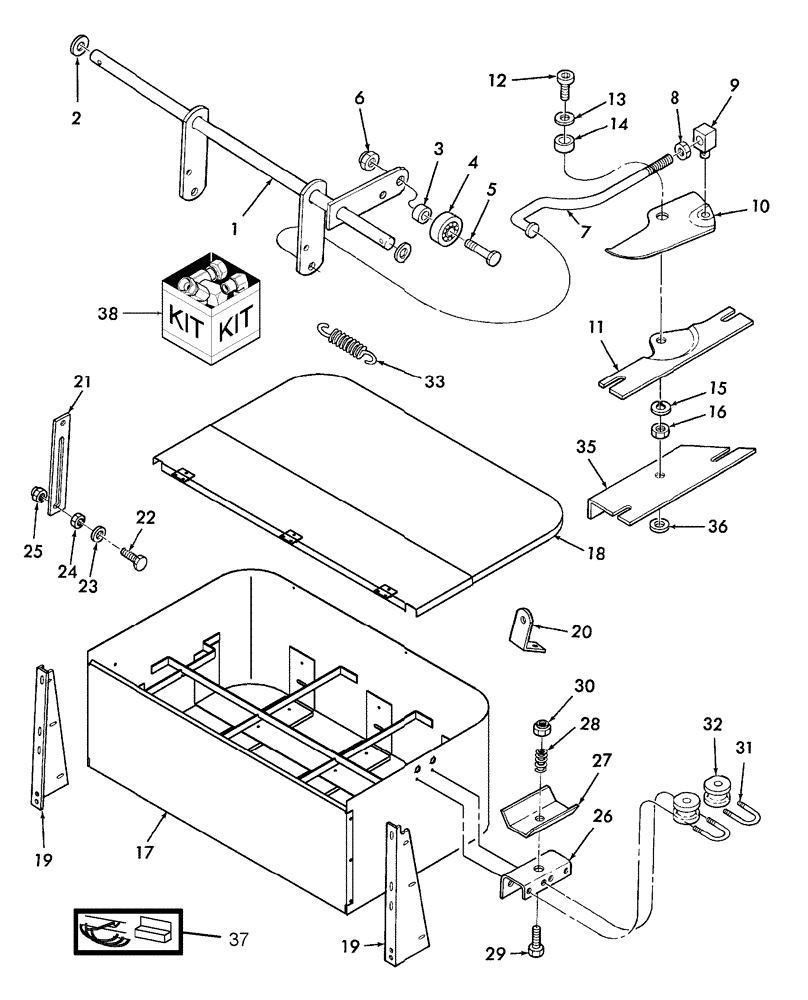

Запчасти Case IH SBX550 (027) - TWINE FINGER, LEVER & TWINE BOX (68) - TYING/WRAPPING

1

86641491

LEVER

1шт.

432-816

COTTER PIN,1/8" x 1"

2шт.

2

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

1шт.

3

854963

SPACER,10.5mm ID x 16mm OD x 8.5mm L

1шт.

4

9604557

BALL BEARING,10mm ID x 31.75mm OD x 15.9mm W

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

6

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

7

9604535

ROD

Twine

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

8

825-1408

NUT,M8, Cl 8

2шт.

9

414

BLOCK

Adjustment

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

10

86640857

FINGER

Twine

2шт.

11

86640806

FINGER

2шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

825-1408

NUT,M8, Cl 8

4шт.

12

380425

BOLT,M10 x 20mm

Button Hd, HS, CL 10.9, M 10 x 20

2шт.

13

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

14

185140

SPACER

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

16

825-1410

NUT,M10, Cl 8

2шт.

17

86635669

BOX

Twine

1шт.

18

86635671

LID

Twine Box

1шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

6шт.

42576

NUT

Speed, Dual, 1/4"-20

3шт.

19

86640839

SUPPORT

2шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

495-11034

WASHER,5/16", SAE

6шт.

492-11031

LOCK WASHER,5/16"

10шт.

425-105

NUT,5/16"-18, G5

10шт.

20

86531609

SUPPORT

RH

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

21

86629754

LATCH

1шт.

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

231-4145

NUT,5/16"-18, GB

1шт.

22

280699

HEX SOC SCREW,5/16" - 18 x 1 1/4"

1шт.

23

495-11034

WASHER,5/16", SAE

1шт.

24

425-105

NUT,5/16"-18, G5

1шт.

25

231-4145

NUT,5/16"-18, GB

1шт.

26

86640849

BASE

Twine

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

86640791

CLAMP

Twine

1шт.

28

86628550

SPRING

1шт.

30

832-46406

NUT,M6 x 1, Cl 8

1шт.

31

28114

U-BOLT

#10-24 x 1-15/16"

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

225-14110

NUT,#10-24

4шт.

32

86543545

GUIDE

Twine

2шт.

33

86622143

SPRING

1шт.

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

825-1408

NUT,M8, Cl 8

2шт.

35

NSS

NOT SOLD SEPARAT

Baffle, Needle Slot

2шт.

36

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

37

86529671

DECAL

Twine Routing

1шт.

38

86626412

KIT

Needle Slot Baffle, Includes: Ref. 35 & 36

1шт.

29

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.
