Запчасти Case IH SBX550 (025) - TWINE KNOTTER (68) - TYING/WRAPPING

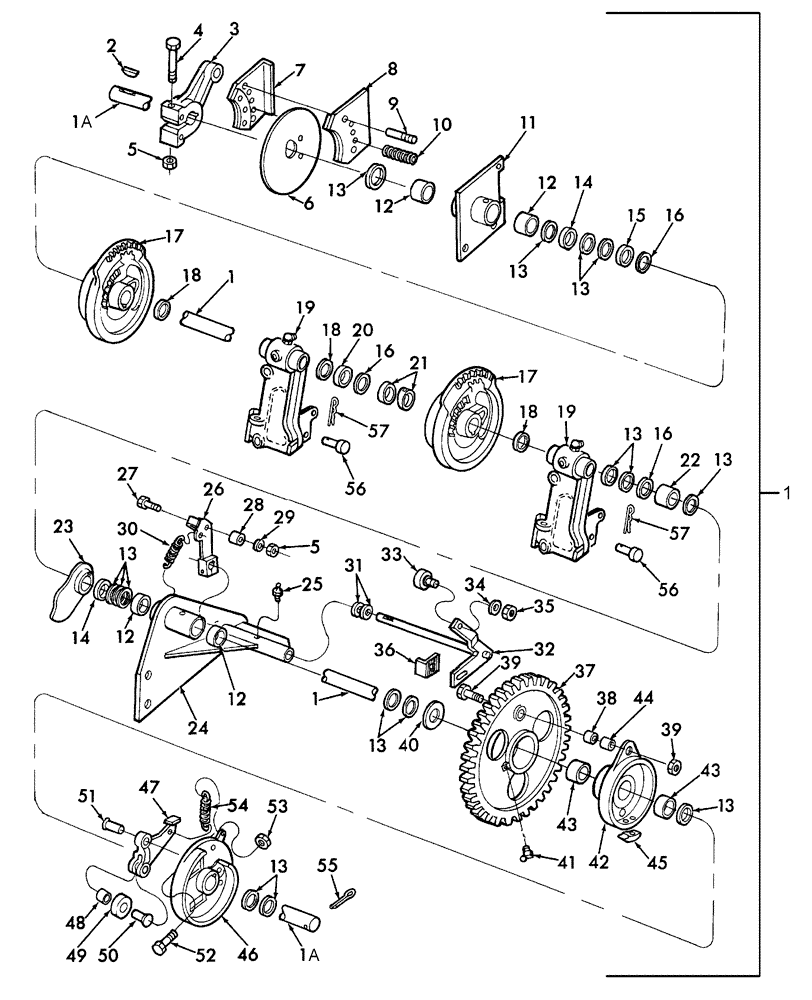

Схема запчастей Case IH SBX550 - (025) - TWINE KNOTTER (68) - TYING/WRAPPING
50
18
23
35
16
57
43
13
53
19
39
38
39
57
40
14
27
18
13
30
1
55
41
8
52
54
47
21
28
11
31
1
44
19
20
56
10
33
22
43
37
2
56
7
12
13
13
9
6
1a
16
13
5
13
1a
12
42
18
5
48
29
46
36
15
24
25
13
12
4
17
49
14
17
3
13
51
26
12
16
13
45
32
34
1

Артикул

Название

Примечание

Количество

1

86635627

SHAFT

Knotter, Includes: Ref. 1 - 57

1шт.

1a

86507986

SHAFT

Knotter, 1/4" Keyways for Cam Gears

1шт.

2

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

3

86640969

ARM

Knotter

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

232-4146

NUT,3/8"-16, GC

1шт.

6

602702

BRAKE DISC

1шт.

7

791788

BRAKE SHOE

1шт.

8

791787

BRAKE SHOE

1шт.

9

770210

PIN,9.53mm OD x 60.2mm L

2шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

10

128383

SPRING

3шт.

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3шт.

280129

NUT,1/4"-20

3шт.

495-11028

WASHER,1/4", SAE

(.065" Thk)

3шт.

11

603438

BEARING HOUSING,1.385" ID

RH, Includes: (2) Ref. 12

1шт.

571382

LUBE NIPPLE,1/4"-28 NPT x 1.62" lg

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

232-4148

NUT,1/2"-13, GC

2шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

12

222939

BUSHING,35.13mm ID x 41.34mm OD x 19.05mm L

4шт.

13

58630

WASHER,.0299" Thk

1шт.

14

86640867

SPACER

2шт.

84382

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

15

647634

SPACER

1шт.

16

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

2шт.

17

86577790

SERVICE KIT

Cam Gear, 1/4" Keyway, Includes: Bill Hook Pinion, Worm Pinion, Cam Gear, & Instructions

2шт.

87481

KEY

Square, 1/4" x 2"

2шт.

18

267571

WASHER

3шт.

19

NSS

NOT SOLD SEPARAT

Frame, Knotter , Refer to Fig. 026

2шт.

86507981

1шт.

20

620972

SPACER

1шт.

21

86640859

COLLAR

2шт.

485-13112

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

280129

NUT,1/4"-20

3шт.

570275

WASHER

3шт.

22

86640805

SPACER

1шт.

23

86640868

CAM

Twine Finger

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

24

848861

SUPPORT

LH, Includes: (2) Ref. 12

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

232-4148

NUT,1/2"-13, GC

2шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

26

86641579

LEVER

Trip

1шт.

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

86641586

SPACER,10.5mm ID x 14.3mm OD x 8mm L

1шт.

29

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

30

86640793

SPRING

1шт.

31

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

2шт.

32

86641585

KNOTTER,198mm L

Trip

1шт.

33

36800

ROLLER BEARING

Cam

1шт.

34

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

35

425-116

NUT,3/8" - 24, Gr 5

1шт.

36

86640843

STOP

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

280736

NUT,5/16"-18, GC

1шт.

37

86640965

GEAR

39T, Includes: Ref. 38

1шт.

38

58148

SLEEVE

Bolt, Shear

1шт.

39

86578266

SHEAR BOLT,12-24 x 1 1/2"

#12-24 x 1-1/2"

1шт.

40

33004

WASHER

1шт.

41

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

42

86641005

HUB

Clutch, Includes: Ref. 43 & 44

1шт.

84443

SQUARE BOLT,3/8" - 16 x 3/4", Gr 2

Sq. Hd., 3/8" x 3/4"

1шт.

Indexes Latch, Ref. 45, Head Inside Hub

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

43

222939

BUSHING,35.13mm ID x 41.34mm OD x 19.05mm L

2шт.

44

58147

SHEAR BOLT BUSHING,5.9mm ID x 17.36mm OD x 12mm L

Shear Bolt

1шт.

45

86502134

LATCH

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

46

86641005

HUB

Knotter Clutch, Includes: Ref. 47 - 51

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

47

86641708

PAWL

Knotter, Includes: Ref. 48 (1/2" Spacer) - 50

1шт.

48

86636722

SPACER,12.62mm ID x 19.05mm OD x 15.75mm L

5/8", Long

1шт.

48

86977258

SPACER

1/2", Long

1шт.

49

139881

ROLLER

1шт.

50

617446

RIVET,Csk, 1/2" x 1 3/8"

1шт.

51

617445

RIVET,Csk, 1/2" x 1 23/32"

1шт.

52

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

53

232-4148

NUT,1/2"-13, GC

1шт.

54

18

SPRING

Safety Hook

1шт.

55

32-1232

COTTER PIN,3/16" x 2"

1шт.

56

710230

RIVET,Button, 9.53mm OD x 25.4mm L

Drilled, 3/8" x 1"

2шт.

57

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

Выбрано товаров: 98
