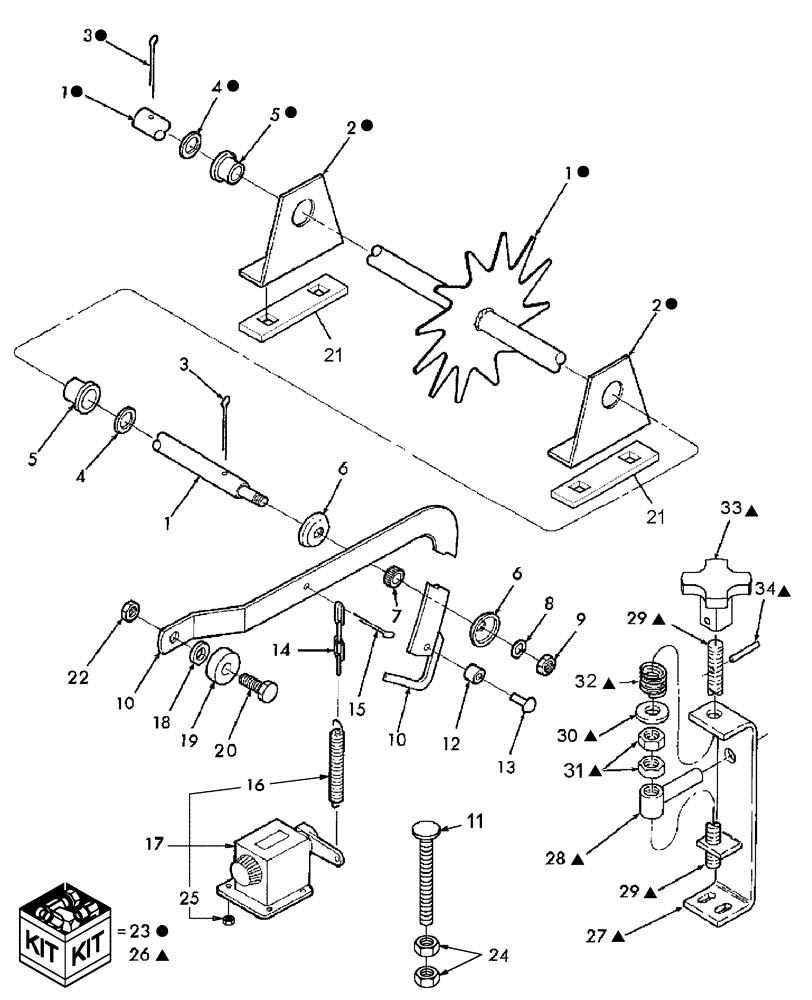

Запчасти Case IH SBX550 (028) - METERING WHEEL (62) - PRESSING - BALE FORMATION

1

86641705

WHEEL

Metering, 5/8" Shaft

1шт.

Prior to P.I.N. HBJ0003327

1шт.

1

86900746

METER

Metering, 3/4" Shaft

1шт.

P.I.N. HBJ0003327 & After

1шт.

2

86640866

SUPPORT

Bearing

2шт.

Prior to P.I.N. HBJ0003327

1шт.

2

86900747

SUPPORT

Bearing

2шт.

P.I.N. HBJ0003327 & After

1шт.

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

3

432-816

COTTER PIN,1/8" x 1"

2шт.

4

495-11066

WASHER,5/8", SAE

2шт.

5

44806

BUSHING,16.13mm ID x 31.88mm OD x 19.05mm L

2шт.

6

86641704

CUP

2шт.

7

86641701

GEAR

Disc, Trip Arm

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

86641700

TRIP ARM

1шт.

11

714808

ROD

Standard Bale Length Adjuster

1шт.

Mounts to Frame W/ Ref. 24

1шт.

12

42371

SPACER

1шт.

13

45-414

RIVET,But Hd, 1/4" x 7/8"

1шт.

14

197559

CHAIN,9" L

#16, 9" L

1шт.

15

432-1212

COTTER PIN,3/16" x 3/4"

1шт.

16

197717

SPRING

1шт.

17

86608973

BALE COUNTER

Includes: Spring & (2) #5 Nuts

1шт.

18

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

19

86641586

SPACER,10.5mm ID x 14.3mm OD x 8mm L

1шт.

20

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

22

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

21

86573397

SPACER

2шт.

Prior to P.I.N. HBJ0003327

1шт.

23

86979308

KIT

Optional Deluxe Bale Length Adjuster

1шт.

P.I.N. HBJ0003327 & After

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.

25

225-14105

NUT,#5-40

2шт.

26

9823463

KIT

Bale Adjuster

1шт.

27

9823452

SUPPORT

1шт.

28

9823455

PIN

1шт.

29

9823456

ROD

Drilled, G5, 1/2"-13 x 8-3/4"

1шт.

30

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

31

280431

NUT,1/2"-13, G5

3шт.

32

9511031

SPRING

1шт.

33

637895

KNOB

1шт.

34

280404

GROOVED PIN,4.76mm OD x 38.1mm L

1шт.
