Запчасти Case IH SBX550 (023) - NEEDLE, YOKE & GUARD (62) - PRESSING - BALE FORMATION

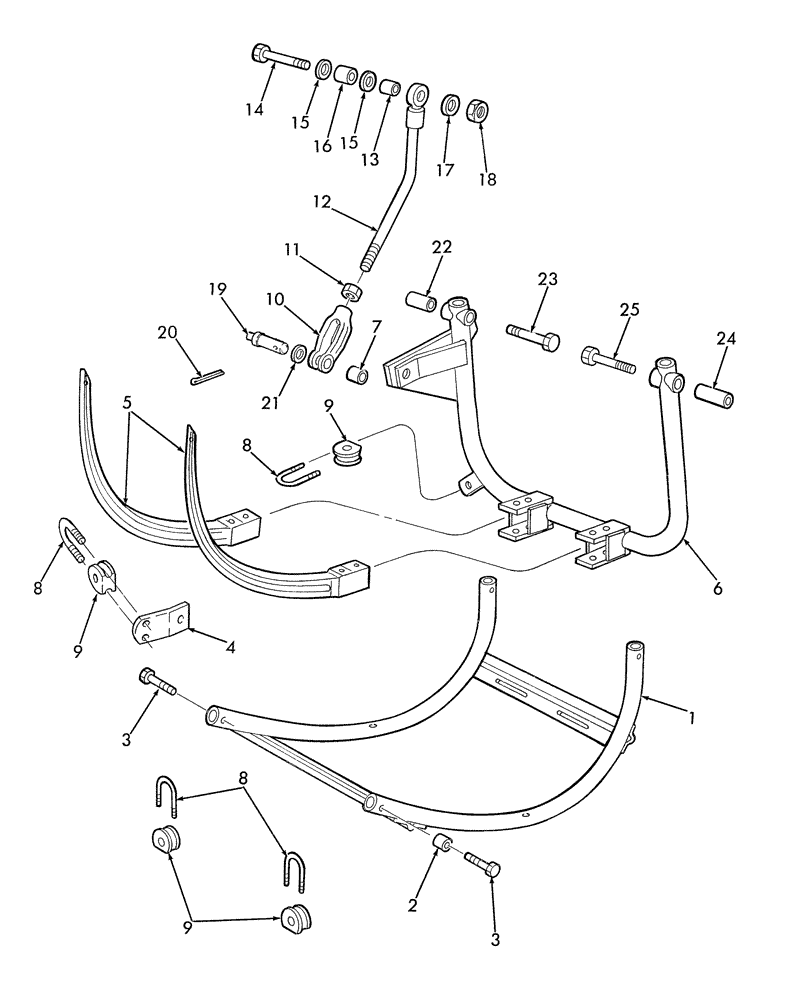

Схема запчастей Case IH SBX550 - (023) - NEEDLE, YOKE & GUARD (62) - PRESSING - BALE FORMATION
7
6
19
13
11
4
5
8
9
3
18
22
8
16
21
8
1
17
20
14
23
10
12
15
25
3
9
24
15
2
9

Артикул

Название

Примечание

Количество

1

86635649

GUARD

Needle

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

2

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

1шт.

3

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

RH

1шт.

3

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

LH

1шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

4

86641578

BRACKET

Twine Guide

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

5

86641563

NEEDLE

Eye is Hard Surfaced

2шт.

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

86566268

LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

HH, Self-Locking, CL 8.8, M12 x 1.75 x 35

4шт.

495-21044

WASHER,3/8"

12шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

829-1405

NUT,M5, Cl 10

6шт.

6

86637612

YOKE

Needle, Includes: Ref. 7

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

7

132452

SPACER

1шт.

8

28114

U-BOLT

#10-24 x 1-15/16"

3шт.

495-31025

WASHER,3/16"

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

225-14110

NUT,#10-24

6шт.

9

86543545

GUIDE

Twine

3шт.

10

86641516

CLEVIS

1шт.

11

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

12

86977225

ROD

Needle Yoke, Includes: Ref. 13

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

132447

BUSHING,22.25mm ID x 25.45mm OD x 22mm L

1шт.

14

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

15

86516680

WASHER

2шт.

16

132449

SPACER

1шт.

17

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

1шт.

18

85700693

NUT,5/8" - 11, Gr C

1шт.

19

132469

PIN

Includes: 219-87

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1шт.

21

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

1шт.

22

848470

SPACER

1шт.

23

280607

HYDRAULIC VALVE

Carriage, Short Neck, G5, 5/8"-11 x 4-1/2"

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

24

848469

SPACER

1шт.

25

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

Выбрано товаров: 48
