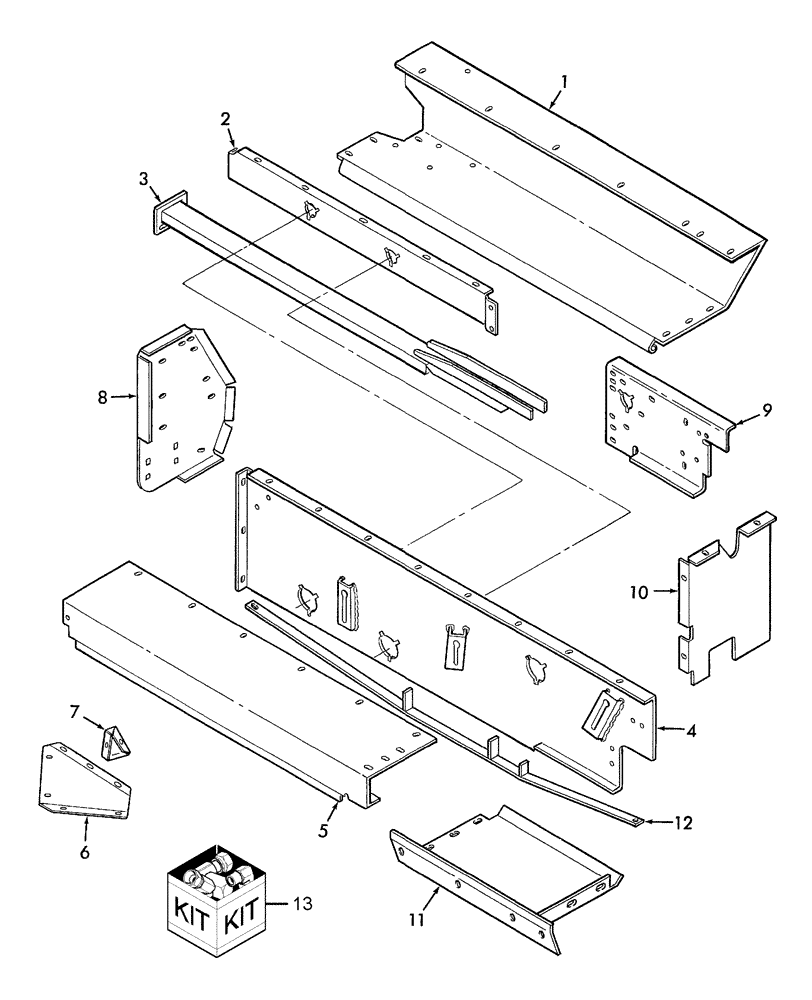

Запчасти Case IH SBX550 (021) - FEEDER SHIELDING (60) - PRODUCT FEEDING

1

86635653

FLOOR

Feeder

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

425-105

NUT,5/16"-18, G5

5шт.

2

848734

SUPPORT

Rotor

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

425-105

NUT,5/16"-18, G5

5шт.

3

86641493

GUARD

Hay

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

4

848692

STEEL PLATE

Feeder, Front, Serial Range: -HBJ0044430

1шт.

4

87711015

D PANEL

Feeder, Front, Includes: (2) Ref. 14, Start Serial: HBJ0044431

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

5

86635586

PLATE

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

6

9809344

FEEDER

Corner

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

425-105

NUT,5/16"-18, G5

6шт.

7

86977226

PIPE

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

425-105

NUT,5/16"-18, G5

3шт.

8

86635657

SUPPORT

End, Serial Range: -HBJ0044430

1шт.

8

87710684

SUPPORT

End, Includes: (2) Ref. 14, Start Serial: HBJ0044331

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

9

848697

STEEL PLATE

Feeder Back, Serial Range: -HBJ0044430

1шт.

9

87711693

D PANEL

Feeder Back, Includes: (3) Ref. 14, Start Serial: HBJ004431

1шт.

10

86641001

SHIELD

, Serial Range: -HBJ0044430

1шт.

10

87673700

PROTECTION PLATE

Includes: (2) Ref. 14, Start Serial: HBJ0044431

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

425-105

NUT,5/16"-18, G5

4шт.

11

86635655

PAN

Feeder

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

425-105

NUT,5/16"-18, G5

4шт.

12

9809944

SUPPORT

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

13

86626415

DEFLECTOR

Kit, LH, Refer to Fig. 041

1шт.

825-1408

NUT,M8, Cl 8

3шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

14

86610200

THREADED INSERT,M8 x 1.25

, Start Serial: HBJ0044431

1шт.
