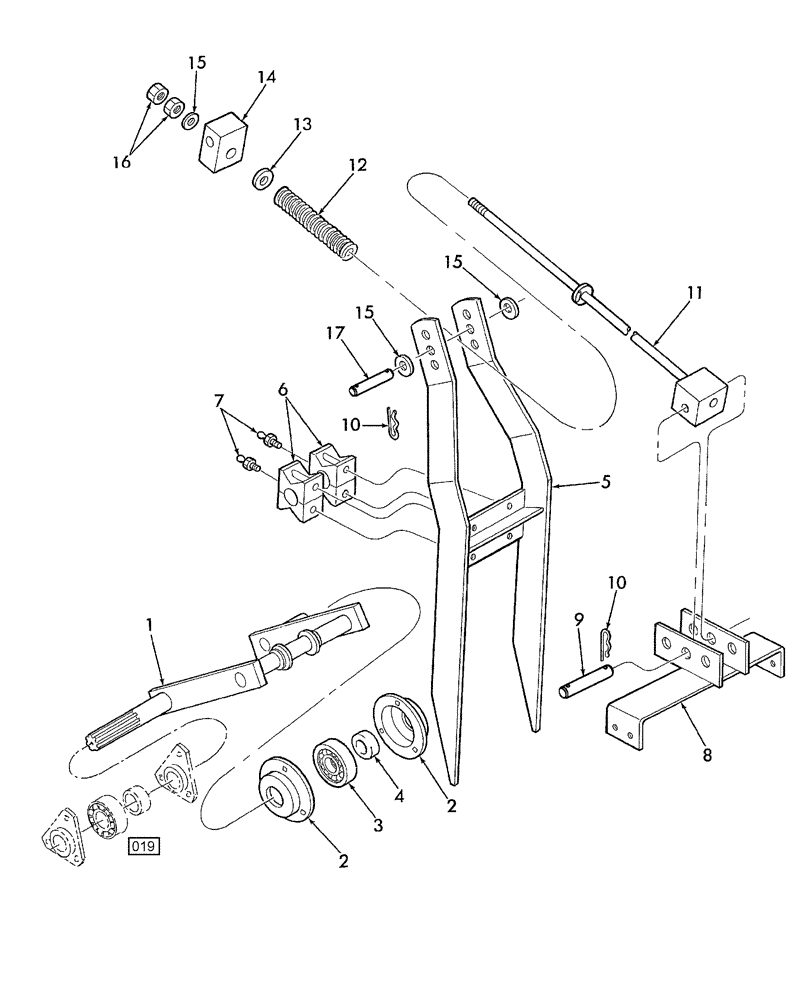

Запчасти Case IH SBX550 (020) - FEEDER, ROTARY CRANK (60) - PRODUCT FEEDING

1

86641549

SUPPORT

1шт.

2

662649R1

RETAINER

Flange, Bearing

2шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

825-1410

NUT,M10, Cl 8

3шт.

3

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

4

557995R11

COLLAR

Locking, Includes: Set Screw

1шт.

5

86635574

FINGER

1шт.

6

86641699

CRANKSHAFT BEARING

Includes: 43133, 322358, 825-1408

2шт.

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

825-1408

NUT,M8, Cl 8

4шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

86641584

BRACKET

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

9

849361

PIN

1шт.

495-11066

WASHER,5/8", SAE

1шт.

10

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

11

86640972

ROD

1шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

12

86640784

SPRING

Bale

1шт.

13

86900099

WASHER

1шт.

14

86640971

PIN

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

495-11081

WASHER,3/4", SAE

3шт.

16

825-1420

NUT,M20, Cl 8

2шт.

17

848686

CLEVIS PIN

1шт.
