Запчасти Case IH SBX550 (019) - FEEDER, 3 ROTOR (60) - PRODUCT FEEDING

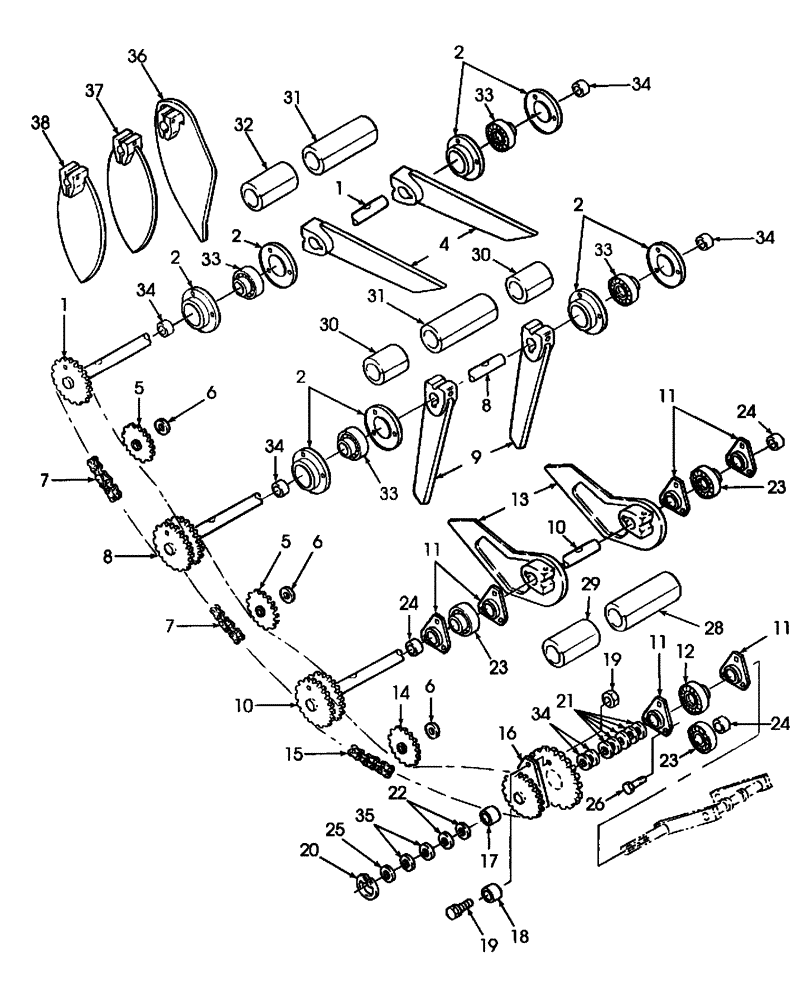

Схема запчастей Case IH SBX550 - (019) - FEEDER, 3 ROTOR (60) - PRODUCT FEEDING
10
1
17
2
2
21
22
13
38
2
11
8
32
14
31
4
11
19
6
16
9
6
15
10
30
7
8
1
24
33
6
34
33
37
12
31
11
25
29
34
28
19
11
20
26
24
33
2
34
5
30
34
2
33
23
7
23
18
35
5
24
36
23
34

Артикул

Название

Примечание

Количество

1

9807868

SHAFT

RH, 28T

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

2шт.

2

662649R1

RETAINER

Flange, Bearing

8шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

12шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

825-1410

NUT,M10, Cl 8

12шт.

4

9845283

FINGER

RH, Inch

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

5

103244

SPROCKET

Idler, RC50, 17T

2шт.

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

2шт.

495-11066

WASHER,5/8", SAE

1шт.

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

4шт.

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

1шт.

85700693

NUT,5/8" - 11, Gr C

2шт.

6

604937

WASHER,16.7mm ID x 52.4mm OD

3шт.

7

848756

CHAIN

Roller, RC50, 80 Total Pitches

2шт.

86595251

LINK,Chain, 19.05mm Pitch

Regular

1шт.

25194

CONNECTING LINK

Spring Clip

1шт.

8

9807866

SHAFT

Center, 28T / 28T

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

2шт.

9

86641567

FINGER

Inch, Center

2шт.

120071

BOLT,Hex, M10 x 65, 8.8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

10

86526406

SHAFT

LH, 23T / 28T

1шт.

126-139

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

5786620026

6шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1410

NUT,M10, Cl 8

6шт.

13

86641566

FINGER

Inch, LH

2шт.

120071

BOLT,Hex, M10 x 65, 8.8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

14

511265

SPROCKET

Idler, 15T

1шт.

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

1шт.

495-11066

WASHER,5/8", SAE

1шт.

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

15

9847046

CHAIN

Roller, RC60H, 84 Total Pitches

1шт.

187609

CONNECTING LINK

Regular

1шт.

241-4316

CHAIN LINK

Connecting, Spring Clip Type, 60

1шт.

16

86641570

ARM

23T Sprocket, Includes: Ref. 17 & 18

1шт.

17

388253

SLEEVE

1шт.

18

80046060

SLEEVE

Shear Bolt

1шт.

19

46047

BOLT AND NUT

5/16"-18 x 1-1/2"

1шт.

20

100-11137

SNAP RING,#137, Ext

1шт.

21

58630

WASHER,.0299" Thk

1шт.

22

86640786

WASHER

Spindle

2шт.

23

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

3шт.

24

517645R11

COLLAR

Locking, Includes: Set Screw

3шт.

25

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1-3/8"

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

825-1410

NUT,M10, Cl 8

3шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

28

9820205

SHIELD

1шт.

29

9822667

SHIELD

1шт.

30

9822653

SHIELD

2шт.

31

9820206

SHIELD

2шт.

32

9822654

SHIELD

1шт.

33

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

4шт.

34

557995R11

COLLAR

Locking, Includes: Set Screw

4шт.

35

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

36

86641588

FINGER

LH

2шт.

37

86641589

FINGER

Center

2шт.

38

86977255

FINGER

RH

2шт.

Выбрано товаров: 69
