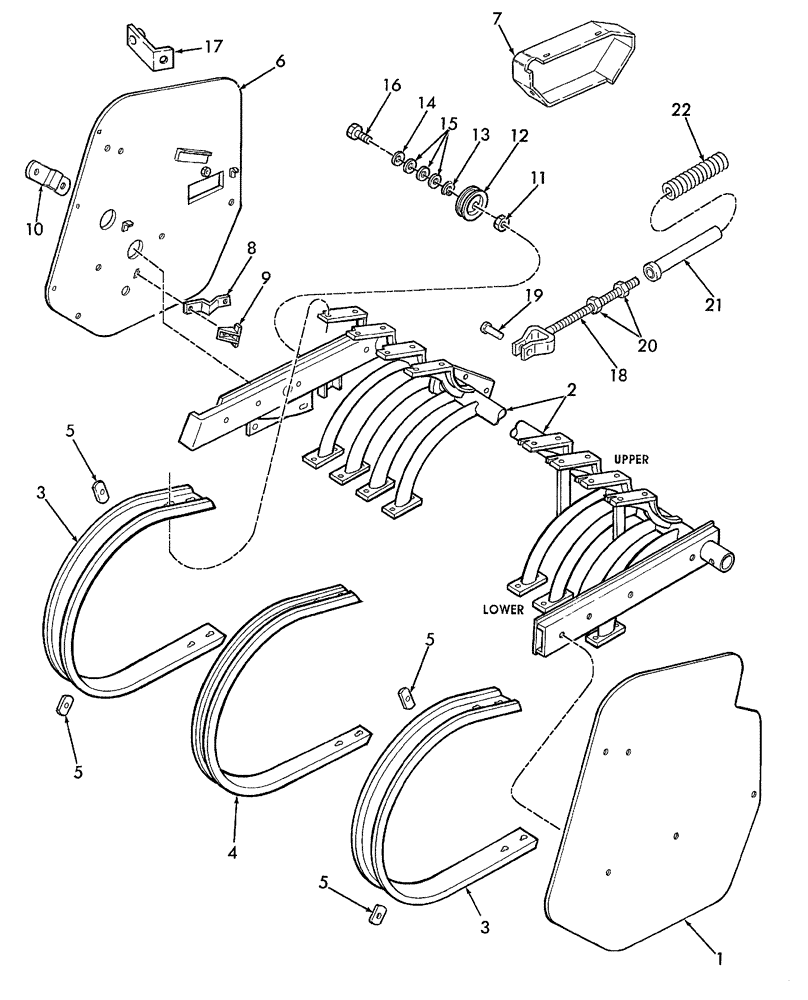

Запчасти Case IH SBX550 (017) - PICKUP PIVOT PIPE (60) - PRODUCT FEEDING

1

86635498

STEEL PLATE

Side, LH

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

2

86635619

PIPE ASSY.

Pivot, Includes: Upper & Lower Support

1шт.

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

425-108

NUT,1/2" - 13, Gr 5

3шт.

86977196

SUPPORT

Upper

1шт.

Welding Required

1шт.

86977213

SUPPORT

Lower

1шт.

Welding Required

1шт.

3

86635481

GUARD

Pickup

2шт.

380426

SCREW,Flng, M6 x 10mm

Self-Tapping, HWH, M6 x 1 x 10

8шт.

4

86635483

GUARD

Pickup

25шт.

380426

SCREW,Flng, M6 x 10mm

Self-Tapping, HWH, M6 x 1 x 10

100шт.

5

86635010

BRACKET

4шт.

84468

SCREW,Slotted Truss Hd, 1/4" - 20 x 5/8"

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

425-104

NUT,1/4"-20, Cl 5

4шт.

6

86635533

STEEL PLATE

Side, RH

1шт.

7

86626118

SHIELD

RH, Used W/ Ref. 6

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

8

86640845

SUPPORT

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

9

86640885

BRACKET

1шт.

10

86640886

COVER

1шт.

84468

SCREW,Slotted Truss Hd, 1/4" - 20 x 5/8"

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

12

86550790

IDLER WHEEL,90mm OD

Chain

1шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

14

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

15

495-11053

WASHER,1/2", SAE

1шт.

16

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

17

86641545

SUPPORT

Mount

1шт.

Mounts W/ Ref. 8 Hardware

1шт.

18

573004

CLEVIS

3шт.

19

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

3шт.

432-816

COTTER PIN,1/8" x 1"

3шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

6шт.

21

86629628

TUBE

3шт.

22

50564

SPRING

3шт.
