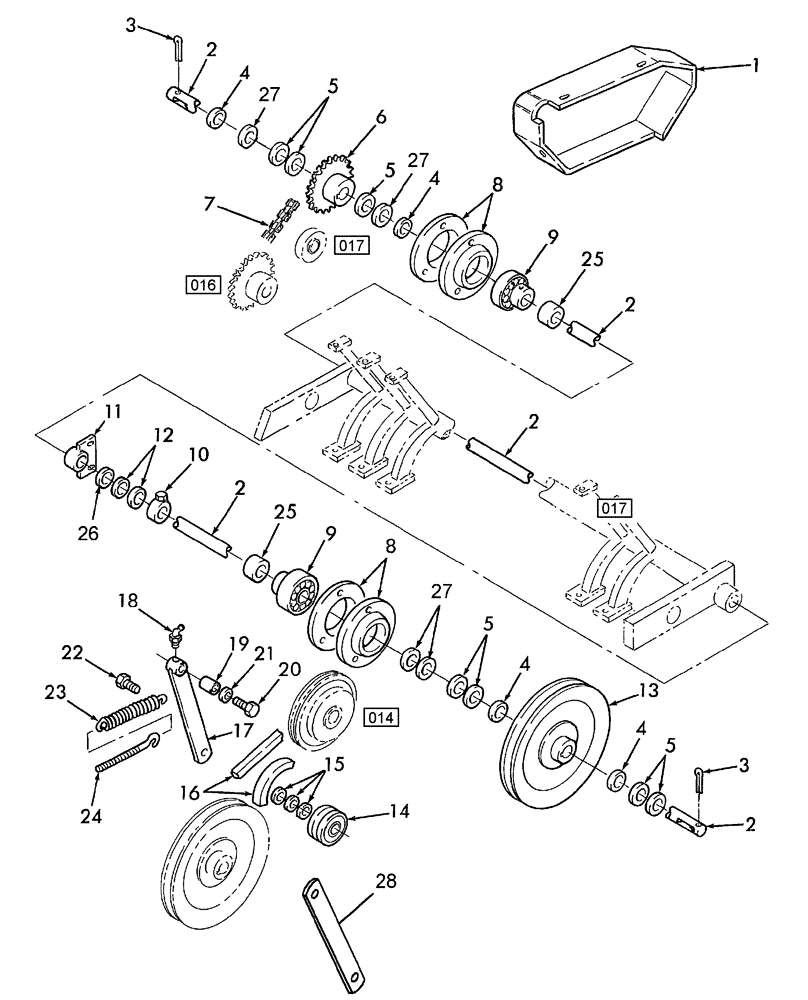

Запчасти Case IH SBX550 (015) - PICKUP DRIVE (60) - PRODUCT FEEDING

1

86626118

SHIELD

RH

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

2

9801462

SHAFT

Drive, Pickup, 1.125" OD

1шт.

3

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

4

672

WASHER

1шт.

5

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

6

86630873

DRIVING SPROCKET

17T, 1.125" ID

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

1шт.

7

9621911

CHAIN,RC 2050, 35 Links x 31.75mm = 1111.25mm

RC 2050, 35 Total Links

1шт.

25193

CONNECTING LINK

Link, Connector, Cotter Pin Type

1шт.

86595273

LINK,31.75mm Pitch

Offset, Cotter Pin Type

1шт.

8

662649R1

RETAINER

Flange, Bearing

4шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1410

NUT,M10, Cl 8

6шт.

9

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

1.125" ID

2шт.

10

165796

COLLAR

1шт.

87591

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2"

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

11

226036

TUBE

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

12

86529375

WASHER,2.44" ID x 3.5" OD x 0.24" Thk

2-3/8" ID x 3-1/2" OD, 1/4" Thick

1шт.

86529374

WASHER,2.5" ID x 3.5" OD x 0.13" Thk

2-17/32" ID x 3-1/2" OD, 1/8" Thick

1шт.

13

86633414

SHEAVE

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

1шт.

14

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

15

495-11053

WASHER,1/2", SAE

3шт.

16

86629764

V-BELT,0.66" W x 84.90" L

1шт.

17

848603

ARM

1шт.

18

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

19

334712

BUSHING,11mm ID x 20mm OD x 30mm L

1шт.

20

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

23

86633427

SPRING

Tension, Standard

1шт.

23

Optional for Overfeeding

1шт.

Not Illustrated

1шт.

24

27953

EYEBOLT

G2, 3/8"-16 x 5-1/2"

1шт.

425-105

NUT,5/16"-18, G5

2шт.

25

557115R11

COLLAR

Locking

2шт.

26

86529374

WASHER,2.5" ID x 3.5" OD x 0.13" Thk

2-1/2" x 3-1/2" x .13

1шт.

27

86629477

WASHER

1-1/8"

1шт.

28

86544355

CONNECTING LINK

Fixed, Idler Link Adjuster

1шт.
