Запчасти Case IH SBX550 (014) - FEEDER DRIVE (60) - PRODUCT FEEDING

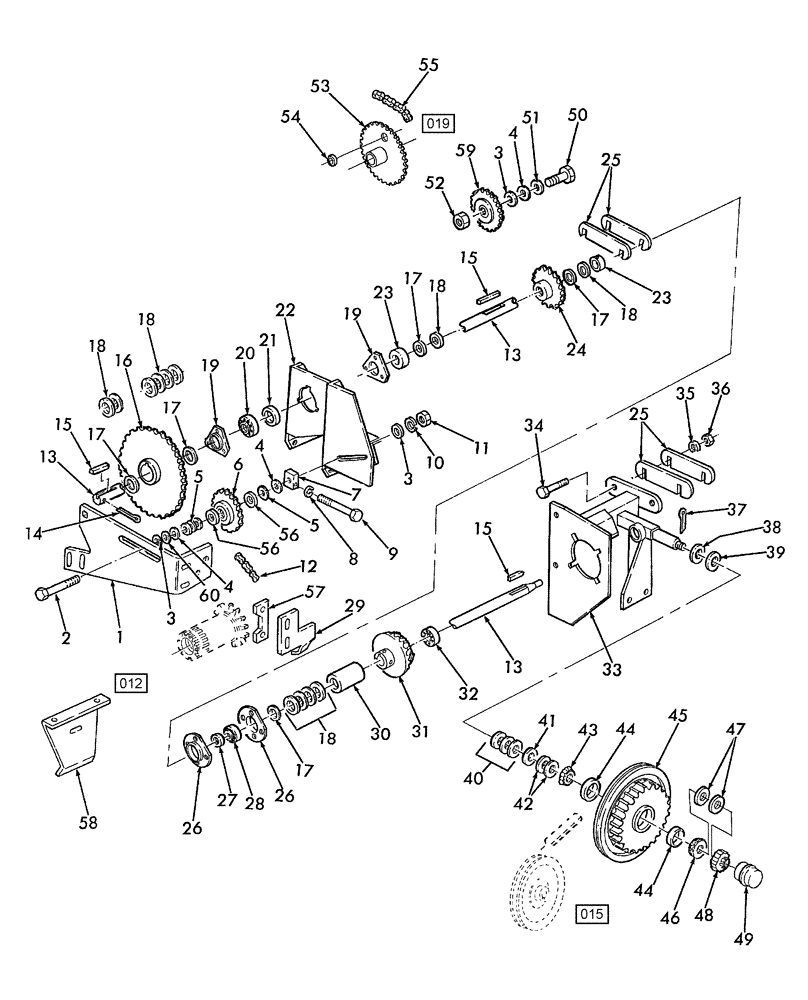

Схема запчастей Case IH SBX550 - (014) - FEEDER DRIVE (60) - PRODUCT FEEDING
17
17
28
50
42
25
13
51
18
47
24
40
46
15
3
27
31
17
5
59
15
52
54
20
17
18
12
39
45
53
18
29
35
7
37
15
23
8
23
4
21
3
49
4
18
3
60
14
9
38
36
32
22
48
56
2
1
43
18
44
5
26
10
13
17
6
4
19
26
56
11
33
30
58
41
44
13
34
19
57
16
25
55

Артикул

Название

Примечание

Количество

1

9848065

SUPPORT

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

280547

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 4", Gr 5

1шт.

3

604937

WASHER,16.7mm ID x 52.4mm OD

1шт.

4

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

1шт.

5

495-11066

WASHER,5/8", SAE

1шт.

6

66614

SPROCKET,RC80, 13T

13T, Includes: Bearing 144819C91

1шт.

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

2шт.

7

86641711

BLOCK

W/ 3/8"-16, UNC Threads

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9

86615349

BOLT,Hex Tap, 3/8" x 6"

HH, Tap, Drilled, G5, 3/8"-16 x 6"

1шт.

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

1шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

11

425-1010

NUT,5/8"-11, G5

1шт.

12

9823914

CHAIN

Roller, RC80, 59 Total Pitches

1шт.

241-1118

LINK

Regular

57шт.

86643889

CONNECTING LINK

1шт.

86977428

CONNECTING LINK

Offset

1шт.

13

9801471

SHAFT

1шт.

14

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

15

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

3шт.

16

9823911

DRIVING SPROCKET

35T

1шт.

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

17

267571

WASHER

1шт.

18

58630

WASHER,.0299" Thk

1шт.

19

86620026

FLANGED BEARING

2шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

825-1410

NUT,M10, Cl 8

3шт.

20

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

1шт.

21

517645R11

COLLAR

Locking, Includes: Set Screw

1шт.

22

848639

BRACKET

1шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

23

86640867

SPACER

2шт.

84382

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

2шт.

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

24

86641548

DRIVING SPROCKET

18T

1шт.

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

4шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

25

848616

SHIM

1шт.

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

829-1412

NUT,M12, Cl 10.9

2шт.

26

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

425-108

NUT,1/2" - 13, Gr 5

4шт.

27

45393

COLLAR

1шт.

28

B92630

BEARING

1шт.

29

9829017

GUARD

1шт.

30

86640967

SPACER

1шт.

31

86641552

DRIVE PINION

18T

1шт.

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

32

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

33

86640966

ANGLE

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

34

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

35

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

36

829-1412

NUT,M12, Cl 10.9

2шт.

37

733-4032

COTTER PIN,M4 x 32

1шт.

38

9615177

WASHER

Special

1шт.

39

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

40

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

1шт.

41

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

1шт.

42

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.

43

223796

ROLLER BEARING,25.4mm ID x 14.73mm W

1шт.

44

572564R1

BEARING CUP

2шт.

45

86640970

SHEAVE

1шт.

46

D29266

ROLLER BEARING,1" ID x 0.58"

1шт.

47

536293

WASHER

Hardened

1шт.

48

412106

SLOTTED NUT,M20 x 1.5, Cl 04

1шт.

49

200734

HUB CAP

1шт.

50

811-16060

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8

1шт.

51

495-11066

WASHER,5/8", SAE

1шт.

52

832-46416

NUT,M16 x 2, Cl 8

1шт.

53

86641571

DRIVEN SPROCKET

39T, Includes: Ref. 54

1шт.

54

80046060

SLEEVE

Bolt, Shear

1шт.

55

848630

CHAIN

Roller, RC60, 94 Total Pitches

1шт.

86595251

LINK,Chain, 19.05mm Pitch

Regular

1шт.

165590

CONNECTING LINK

Spring Clip

1шт.

56

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

2шт.

57

9829293

NUT

Tab

1шт.

58

86633484

GUARD

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

59

511265

SPROCKET

Idler, 15T

1шт.

425-108

NUT,1/2" - 13, Gr 5

4шт.

60

86640888

WASHER,.66” ID x 2.00” OD

1шт.

Выбрано товаров: 95
