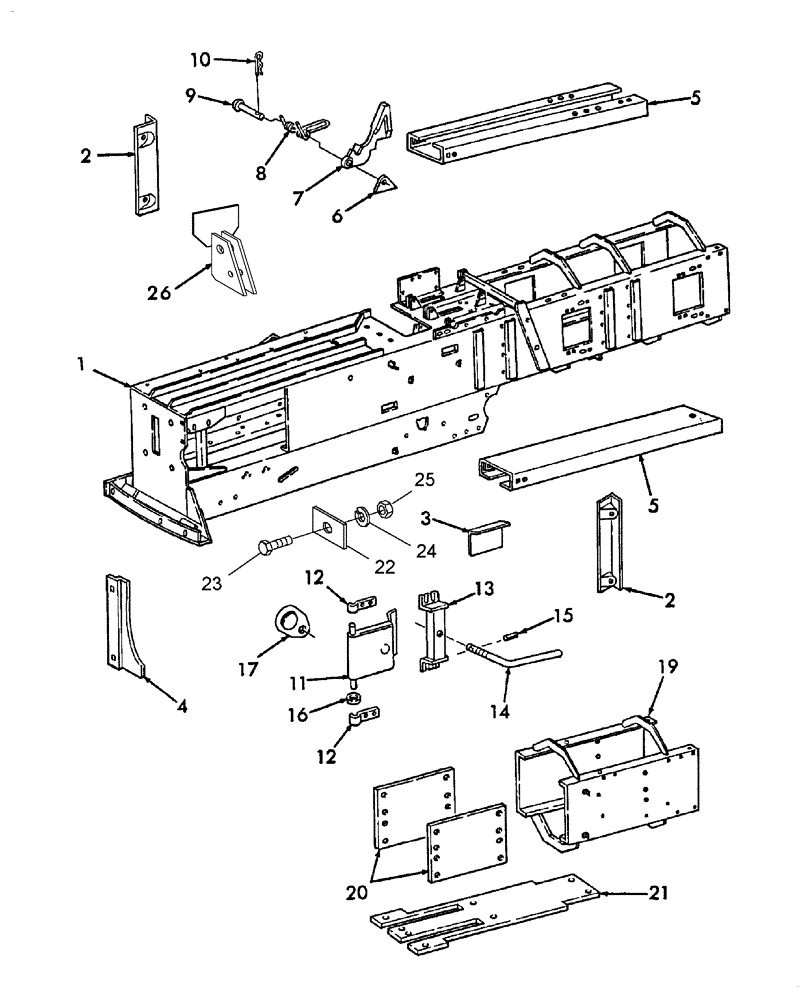

Запчасти Case IH SBX550 (005) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

86635644

BALE CHAMBER

1шт.

219-417

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

2

86626431

STOP

Hay, 12-1/4" Long

2шт.

2

86640794

STOP

Hay, 5-3/4" Long, Optional

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

3

86640954

COVER

1шт.

4

9823891

SHIELD

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

5

86626098

CHANNEL

Rail, Tension

2шт.

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

4шт.

232-4146

NUT,3/8"-16, GC

4шт.

6

854913

STOP

Dog, Plunger

6шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

280736

NUT,5/16"-18, GC

6шт.

7

86640942

DOG

Plunger

6шт.

Shown in Underside Position

1шт.

8

86505745

SPRING,Torsion

6шт.

9

771478

PIN,12.7mm OD x 86.77mm L

6шт.

10

216698

COTTER PIN,0.125" OD x 1.75" L

6шт.

11

86630801

DOOR ASSY.

Hay

2шт.

12

86977128

BRACKET

Hinge

4шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

13

86630799

SUPPORT

2шт.

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

14

849347

HANDLE

2шт.

15

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

16

244379

WASHER,13.49mm ID x 19.05mm OD x 2.67mm Thk

2шт.

17

86640862

COVER

1шт.

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

19

86633399

EXTENSION

Bale Case

1шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

16шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

825-1410

NUT,M10, Cl 8

16шт.

20

86633397

PLATE

2шт.

21

86626413

KIT

Bottom, Bale Chamber, Refer to Fig. 043

1шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

495-21044

WASHER,3/8"

8шт.

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

22

86547944

CLIP

3шт.

23

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

24

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

25

425-108

NUT,1/2" - 13, Gr 5

3шт.

26

86618577

BRACKET

Hay Dog

1шт.

Welding Required

1шт.
