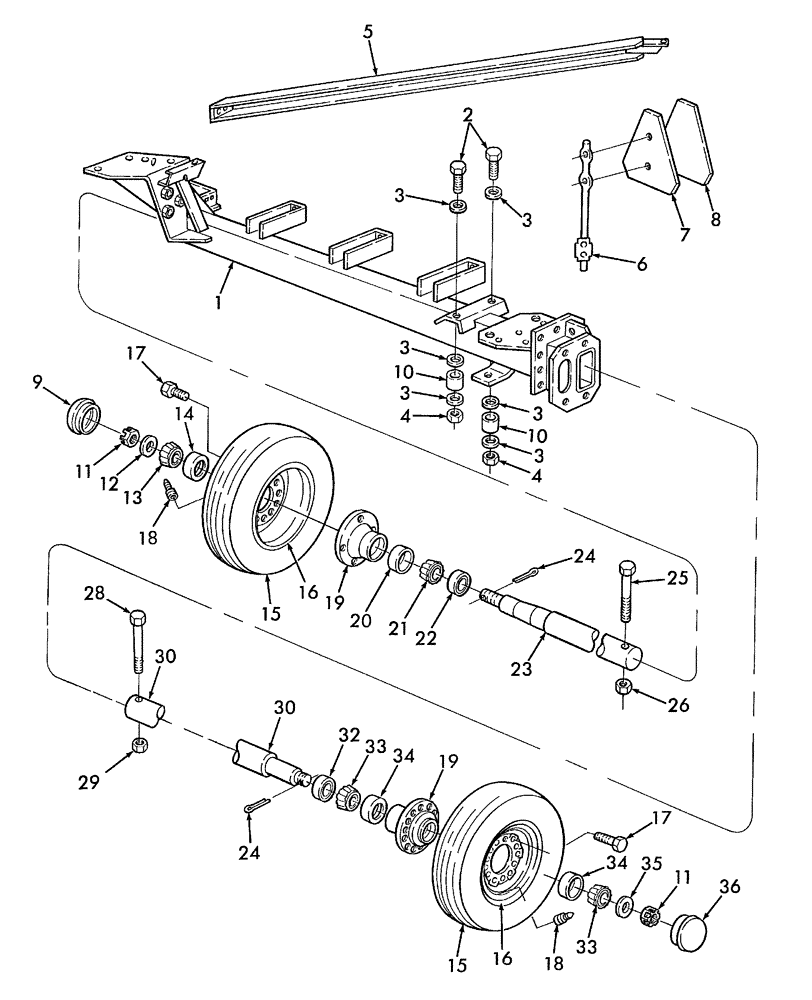

Запчасти Case IH SBX550 (004) - AXLE & WHEEL (39) - FRAMES AND BALLASTING

1

86635667

AXLE

High Flotation Tires

1шт.

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

2

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

5

86635607

BRACE

1шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

2шт.

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

825-1410

NUT,M10, Cl 8

2шт.

829-1412

NUT,M12, Cl 10.9

1шт.

6

195036

PLATE

Mount, Pole

1шт.

7

86547710

EMBLEM

KIT Mounting Plate

1шт.

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

492-11010

LOCK WASHER,#10

2шт.

225-14110

NUT,#10-24

2шт.

8

86547711

DECAL,SMV

SMV (Slow Moving Vehicle)

1шт.

9

249130

HUB CAP

Hub, RH

1шт.

10

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

2шт.

11

412106

SLOTTED NUT,M20 x 1.5, Cl 04

2шт.

12

495-11081

WASHER,3/4", SAE

1шт.

13

536056R91

ROLLER BEARING,0.8656" ID x 0.655"

Cone

1шт.

14

574810

BEARING CUP,45.26mm OD x 12.06mm W

1шт.

15

621531

TYRE/TIRE

Rib Implement, 14L - 16.1, 8 Ply, High -Flotation, LH

1шт.

15

245746

TYRE/TIRE

Rib Implement, 11L - 14, 6 Ply, High Flotation, RH

1шт.

16

86616344

WHEEL

For 14L - 16.1 Tire, High Flotation, LH

1шт.

16

86616430

WHEEL

For 11L - 14 Tire, High Flotation, RH

1шт.

17

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

18

512083

VALVE STEM

Tire, Tubeless, Use W/ 14L - 16.1 Tire

1шт.

18

86626246

VALVE STEM

Tire, Tubeless. Use W/ 11L - 14 Tire

1шт.

19

86631051

HUB

Wheel, RH

1шт.

19

86836910

HUB

Wheel, LH

1шт.

20

651817R1

BEARING CUP

1шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

22

663004R91

OIL SEAL

Oil

1шт.

23

86977228

SPINDLE

RH

1шт.

24

432-1020

COTTER PIN,5/32" x 1 1/4"

2шт.

25

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

1шт.

26

832-46416

NUT,M16 x 2, Cl 8

1шт.

28

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

29

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

30

86977195

SPINDLE

LH

1шт.

32

100412

SEAL,44.45mm ID x 69.19mm OD x 10.72mm Thk

1шт.

33

36057

BEARING CONE,38.11mm ID x 19.05mm W

2шт.

34

453012R1

BEARING CUP

2шт.

35

495-21081

WASHER,3/4"

2шт.

36

249127

HUB CAP

LH

1шт.

87298555

KIT

1шт.
