Запчасти Case IH SBX550 (003[2]) - JACK, P.I.N. HBJ0003340 & AFTER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

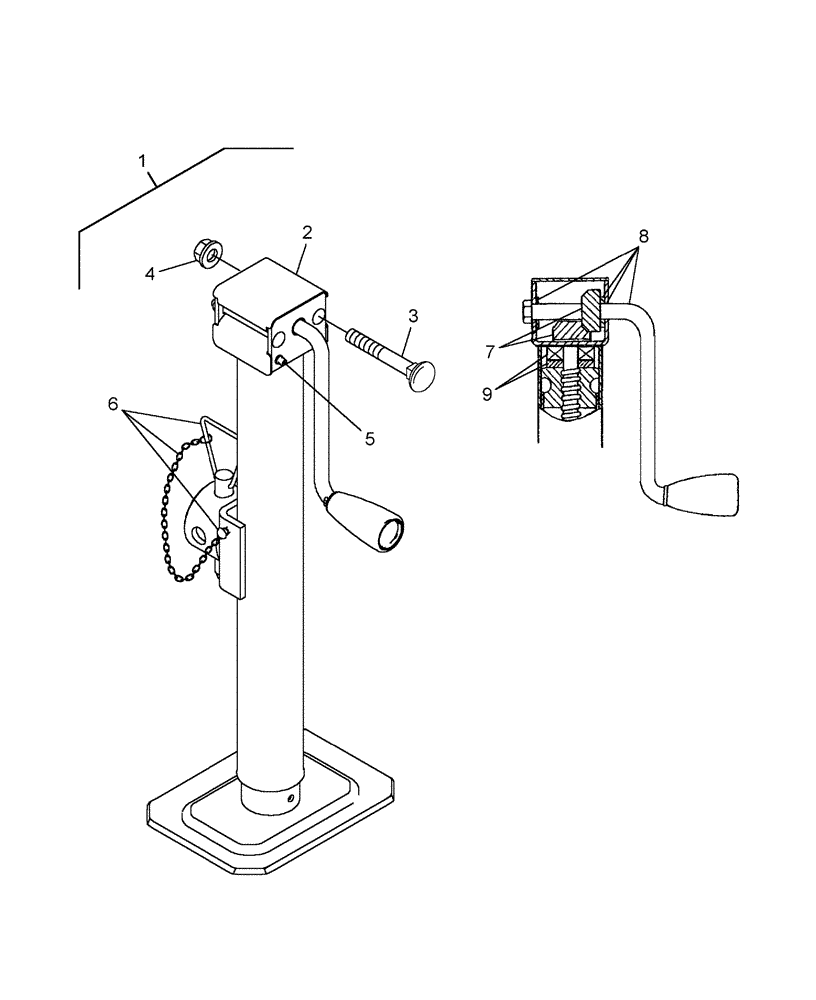

Схема запчастей Case IH SBX550 - (003[2]) - JACK, P.I.N. HBJ0003340 & AFTER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
6
8
4
1
5
9
3
7

Артикул

Название

Примечание

Количество

1

86729155

JACK

3,000 lb.

1шт.

P.I.N. HBJ0003340 & After

1шт.

2

86590816

COVER

Gearbox

1шт.

3

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

4

425-104

NUT,1/4"-20, Cl 5

1шт.

5

88775

LUBE NIPPLE,1/4"-28

1шт.

6

86729152

KIT

Pin & Chain, Includes: Pin, Chain & Drive Screw

1шт.

7

86590811

KIT

Gear, Includes: Gears & Pins

1шт.

8

86590812

KIT

Crank, Includes: Crank, Bushings & Pin

1шт.

9

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing, Includes: Thrust Bearing & Support Washer

1шт.

Выбрано товаров: 10
