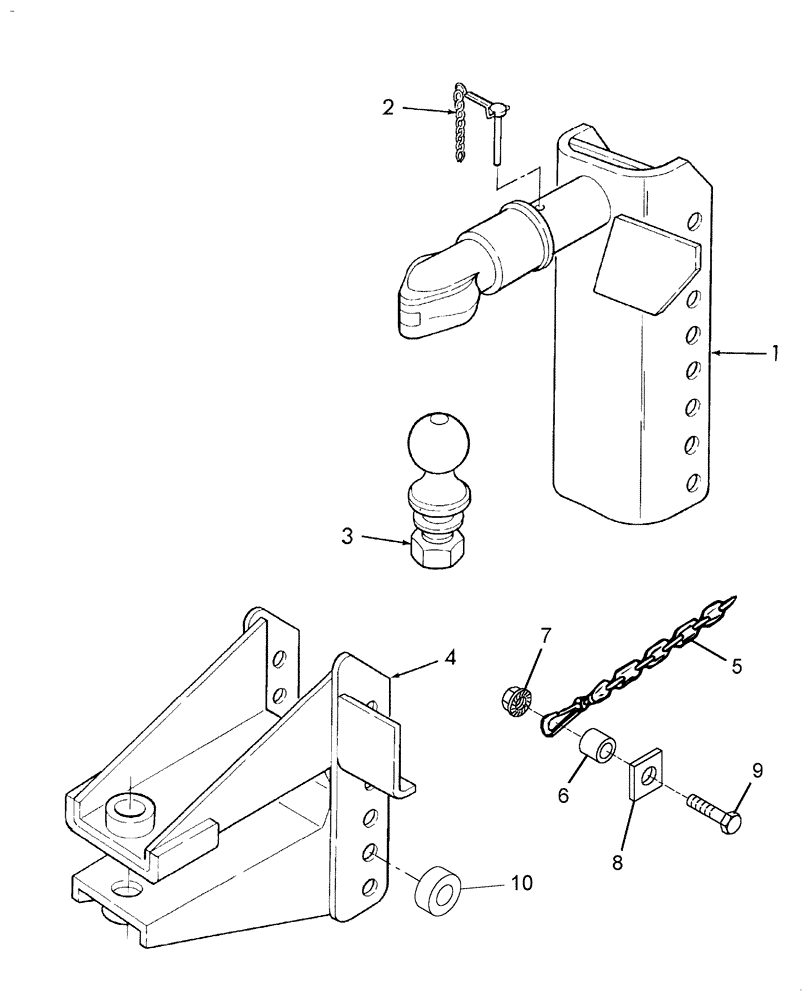

Запчасти Case IH SBX550 (001) - HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

86729786

HITCH

Includes: Decals & Ref. 2

1шт.

86626193

DECAL

CAUTION

1шт.

859047

DECAL

ATTENTION

1шт.

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

4шт.

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

2

688952

PIN

& Chain

1шт.

3

86640941

BALL

Trailer

1шт.

492-11125

LOCK WASHER,1 1/4"

1шт.

280490

NUT,1 1/4"-12, G5

1шт.

4

86630858

HITCH ASSY

Clevis

1шт.

86640836

SPACER

4шт.

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

4шт.

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

5

851086

CHAIN

Tow

1шт.

6

86618413

HUB

1шт.

7

85700693

NUT,5/8" - 11, Gr C

1шт.

8

BER714680

PLATE

1шт.

9

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

10

86640836

SPACER

4шт.
