Запчасти Case IH SBX550 (036[2]) - HYDRAULIC CYLINDER, TONGUE SWING, P.I.N. HBJ0003340 & AFTER (35) - HYDRAULIC SYSTEMS

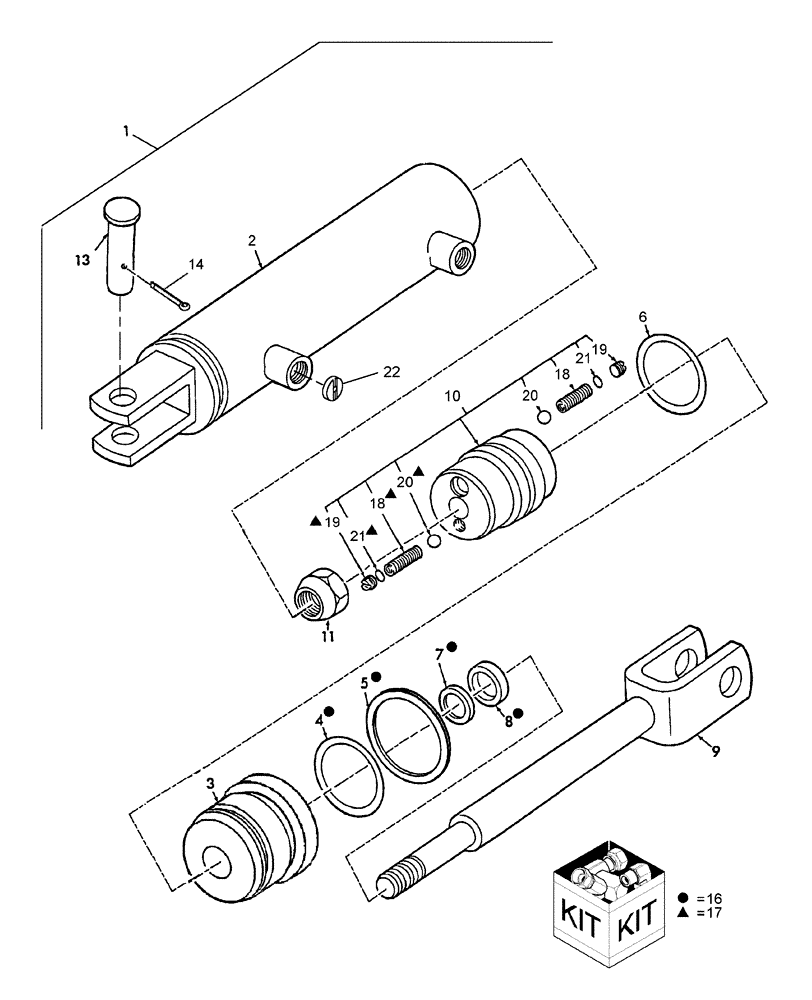

Схема запчастей Case IH SBX550 - (036[2]) - HYDRAULIC CYLINDER, TONGUE SWING, P.I.N. HBJ0003340 & AFTER (35) - HYDRAULIC SYSTEMS
22
3
21
14
19
19
1
20
2
20
18
9
17
21
5
11
13
18
10
16
6
8
7
4

Артикул

Название

Примечание

Количество

1

87018094

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 165.1mm Stroke

Tonque Swing

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

87027939

HEAD

Cylinder

1шт.

4

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

5

270114

RUBBER WASHER

2.756" ID x .043" Thk.

1шт.

6

86900100

O-RING,0.215" Thk x 2.61" ID, -334, 90 Duro

2.600" ID x .210" Thick

1шт.

7

592790

INDICATOR

1-1/8" ID x 1-3/8" OD

1шт.

8

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

9

87032293

PISTON ROD

1шт.

10

87033642

PISTON

1шт.

Relief Valve Set at 1000 PSI & Staked.

1шт.

11

280724

LOCK NUT,3/4" - 16

1шт.

13

514864

PIN

1" x 3-1/8"

2шт.

14

86511448

COTTER PIN,0.148" Dia x 3.31" L

9/64" x 3-5/16"

2шт.

16

87027951

SEAL KIT

Kit

1шт.

17

86527438

KIT

Relief Valve, Includes: Ref. 17 - 21

1шт.

18

593702

COMPRESSION SPRING

2шт.

19

NSS

NOT SOLD SEPARAT

Fitting

2шт.

20

211-9

BALL,5/16" Dia

Steel

2шт.

21

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

22

849287

ORIFICE

.0465"

1шт.

Выбрано товаров: 21
