Запчасти Case IH SBX550 (036[1]) - HYDRAULIC CYLINDER, TONGUE SWING, P.I.N. HBJ0003339 & PRIOR (35) - HYDRAULIC SYSTEMS

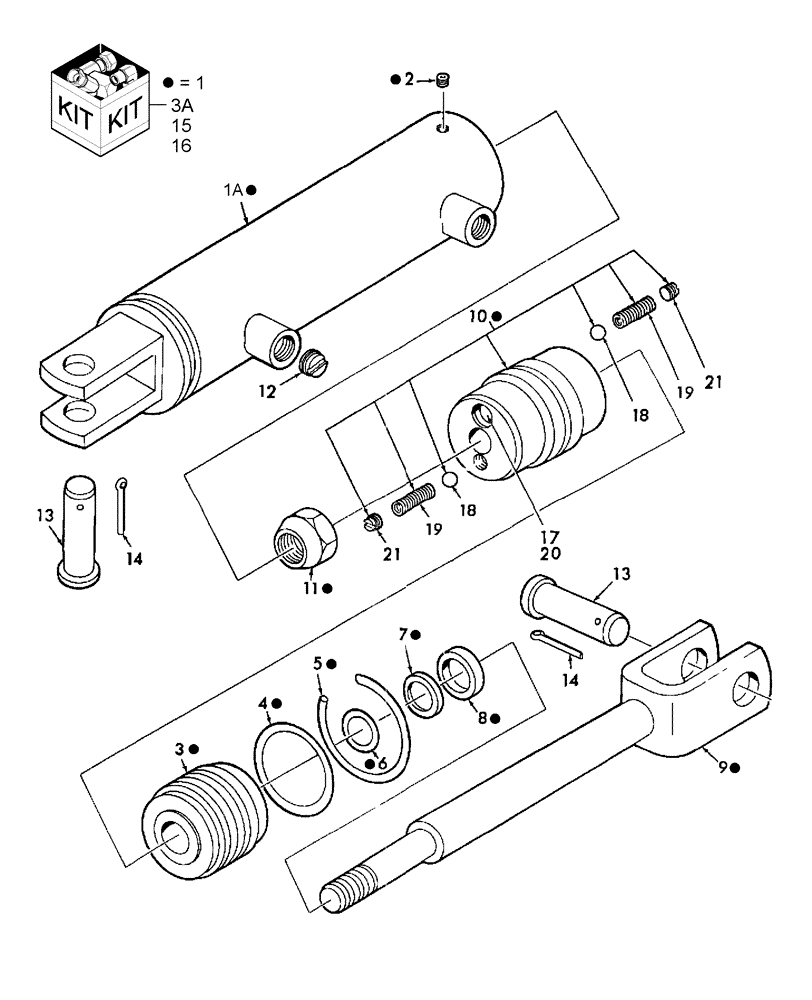

Схема запчастей Case IH SBX550 - (036[1]) - HYDRAULIC CYLINDER, TONGUE SWING, P.I.N. HBJ0003339 & PRIOR (35) - HYDRAULIC SYSTEMS
20
21
1
18
1
14
1
6
7
13
1
18
15
9
1
1
3a
1
19
11
2
8
1
1a
1
13
16
10
4
1
3
17
21
14
19
5
1
12
1

Артикул

Название

Примечание

Количество

1

86630100

HYDRAULIC CYLINDER

Tonque Swing, Includes: Ref. 1A - 11

1шт.

1a

849285

CYLINDER,76.2mm Bore Dia

1шт.

2

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

3

592890

CYLINDER HEAD

1шт.

3a

593691

SEAL KIT

Cylinder Head

1шт.

Includes: Wire Retaining Ring, O-Rings, Washer and Seal.

1шт.

4

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2шт.

4

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2шт.

5

512015

SNAP RING

Int, 3.062"

1шт.

6

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

1шт.

7

134371

SEALING WASHER

SEALRING Backup, 1.141" ID x .040" Thick

1шт.

8

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

9

849295

ROD

1шт.

10

849284

PISTON ASSY

Relief Valve Set at 1000 PSI & Staked

1шт.

11

280724

LOCK NUT,3/4" - 16

1шт.

12

849287

ORIFICE

Plate

1шт.

13

514864

PIN

1" x 3-1/8"

2шт.

14

86511448

COTTER PIN,0.148" Dia x 3.31" L

9/64" x 3-5/16"

2шт.

15

593691

SEAL KIT

Cylinder, Includes: Ref. 4 - 8

1шт.

16

86527438

KIT

Valve, Relief, Includes: Ref. 17 - 21

1шт.

17

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

18

211-9

BALL,5/16" Dia

Steel

2шт.

19

NSS

NOT SOLD SEPARAT

Spring

2шт.

20

NSS

NOT SOLD SEPARAT

Fitting

2шт.

21

NSS

NOT SOLD SEPARAT

Screw, W/ Orifice

2шт.

Выбрано товаров: 25
