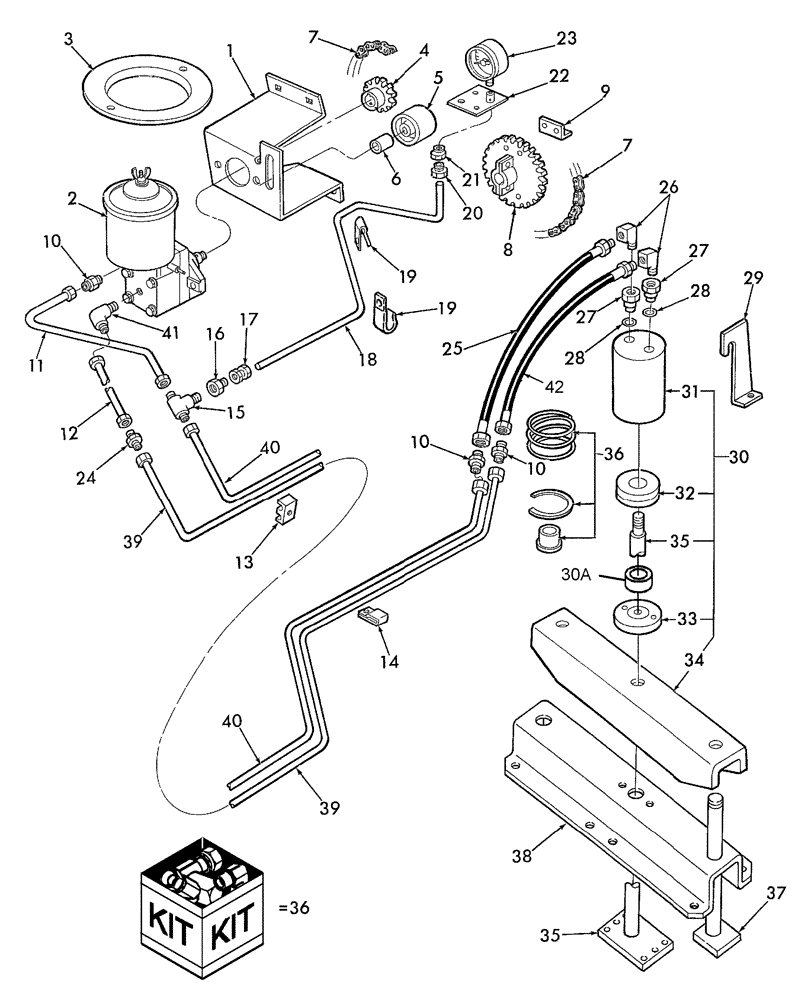

Запчасти Case IH SBX550 (033[1]) - HYDRAFORMATIC™ BALE TENSION, TY07 & PRIOR (35) - HYDRAULIC SYSTEMS

1

86629630

BRACKET

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

425-105

NUT,5/16"-18, G5

4шт.

2

86640940

HYDRAULIC PUMP,3.93 CC

Refer to Fig. 034

1шт.

86640940R

REMAN-HYD PUMP

SBX550,

1шт.

86640940C

CORE-HYDRAULIC PUMP

Return Number

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

3

86626052

COVER

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

4

86630769

DRIVING SPROCKET

11T

1шт.

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

80430

SET SCREW,1/4" - 20 x 1/4"

2шт.

495-11053

WASHER,1/2", SAE

1шт.

88130

NUT,1/2"-20, GC

1шт.

5

678571

IDLER WHEEL

Nylon

1шт.

88419

BOLT,Rd Hd, Sht Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

6

86630770

SPACER,13.01mm ID x 25.4mm OD x 31.75mm L

1шт.

495-11053

WASHER,1/2", SAE

1шт.

7

848631

CHAIN

Roller, RC41

1шт.

8

86630777

DRIVING SPROCKET

34T, Includes: Ref. 9

1шт.

80430

SET SCREW,1/4" - 20 x 1/4"

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

9

848628

ANGLE

2шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

825-1408

NUT,M8, Cl 8

4шт.

10

222-1607

HYD CONNECTOR,Flareless, 9/16"-18 Tube x 1/4" NPT

Male

3шт.

11

849141

TUBE,9.52 mm DIA

3/8" OD x 23.45" Long

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

12

849142

TUBE,9.52 mm DIA

3/8" OD x 18.08" Long

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

13

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

14

605025

CLAMP,3/8", Coated, 3/8" Bolt

2шт.

87256

SCREW,Slotted Truss Hd, 5/16" - 18 x 1"

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

15

625015

3 WAY CONNECTION

Branch, Male, 3/8" OD Tube x 1/4" NPT

1шт.

16

NLS

NO LONGER SERVICED

Adapter

1шт.

17

646429

HYD CONNECTOR

Female, 1/8" NPTF x 3/16" Tube OD

1шт.

18

86565914

HYD TUBE,4.78 mm OD

3/16" OD - Formed

1шт.

19

134579

WIRE CLAMP,J

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

20

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

1шт.

20

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

825-1406

NUT,M6, Cl 8

1шт.

21

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1шт.

22

9829285

PLATE

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

23

9807929

GAUGE

Pressure

1шт.

24

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

1шт.

25

237732

HYDRAULIC HOSE,0.25" ID x 24.00"

1шт.

26

58771

ELBOW

Street

2шт.

27

126786

ADAPTER

Includes: Ref. 28

2шт.

29

86626036

HOOK

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

30

86626103

CYLINDER

Hydraulic, Tension, Includes: Ref. 31 - 36

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

Prior to P.I.N. HBJ0003340

1шт.

30

87018201

HYDRAULIC CYLINDER

Hydraulic, Tension

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

P.I.N. HBJ0003340 & After

1шт.

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

30a

86636363

FINGER

Spacer

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

30a

87035520

SPACER

FINGER Spacer

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

31

591599

CYLINDER,101.6mm Bore Dia

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

32

591606

PISTON

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

32

87035509

PISTON

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

33

591609

HOSE,46.04 mm x 230.00 mm, SAE 100R5

Head, Cylinder

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

33

87035507

CYLINDER END CAP

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

34

86977109

BAR

Tension

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

435-11040

GROOVED PIN,5/16" x 2 1/2", Type A

2шт.

35

591604

ROD

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

35

87035511

PISTON ROD

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

88559

LOCK NUT

G8, Thin, 3/4"-14

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

280724

LOCK NUT,3/4" - 16

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

36

86517087

SEAL KIT

Seal, Includes: Washer, O-Ring, Snap Ring & Bushing

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

511296

WASHER

2шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

238-5342

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

512013

SNAP RING

Retaining

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

NSS

NOT SOLD SEPARAT

Bushing

1шт.

Component of 86626103 Bale Tension Hydraulic Cylinder

1шт.

36

87035515

SEAL KIT

Incliudes: Backup Washer & Bushing

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

511296

WASHER

Back-Up

2шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

NSS

NOT SOLD SEPARAT

Bushing

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Component of 87018201 Bale Tension Hydraulic Cylinder

1шт.

37

86626048

ROD

2шт.

232-41412

LOCK NUT,3/4"-10, GC

2шт.

38

86626030

BAR

Lower

1шт.

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

280736

NUT,5/16"-18, GC

2шт.

39

PL

PROCURE LOCALLY

Tube, Hydraulic, 3/8" OD x 87.39" Long

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

40

PL

PROCURE LOCALLY

Tube, Hydraulic, 3/8" OD x 84.77" Long

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

41

222-2106

ELBOW

Male, 90°

1шт.

42

86550672

FLEXIBLE HOSE

Hydraulic, LH

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
