Запчасти Case IH SBX550 (013) - GEARBOX, MAIN DRIVE (31) - IMPLEMENT POWER TAKE OFF

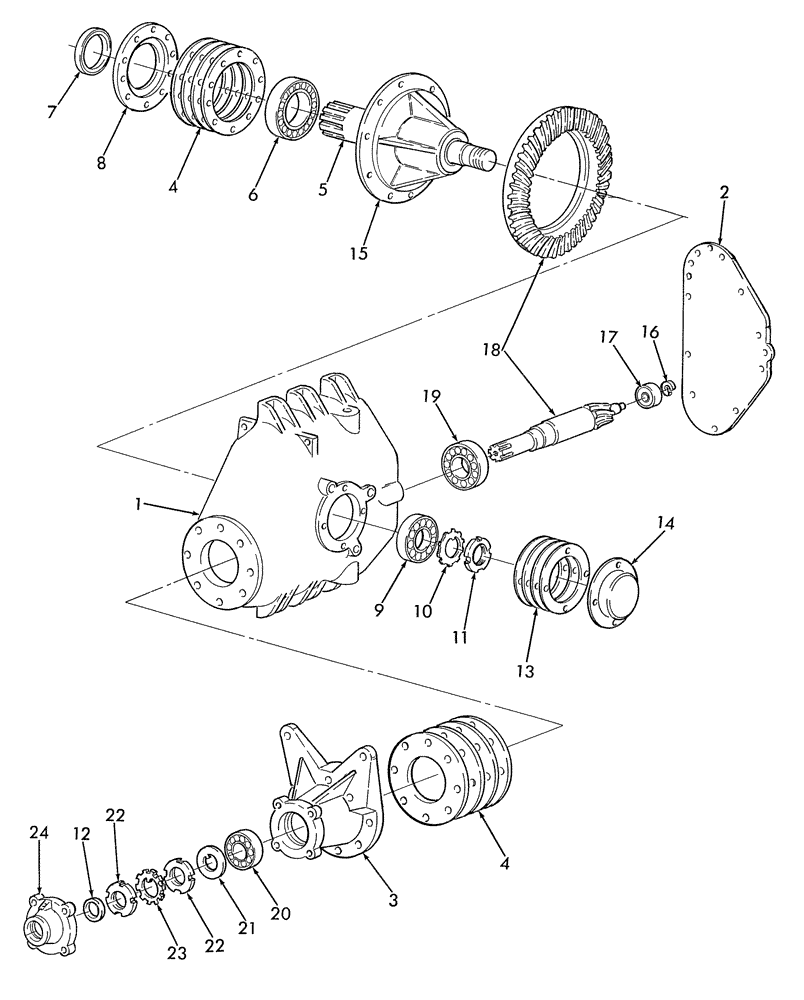

Схема запчастей Case IH SBX550 - (013) - GEARBOX, MAIN DRIVE (31) - IMPLEMENT POWER TAKE OFF
18
12
24
9
8
22
15
11
4
21
3
7
17
4
2
14
22
1
19
10
6
16
13
20
23
5

Артикул

Название

Примечание

Количество

86635659

GEARBOX

Main Drive, Includes: Ref. 1 - 24

1шт.

1

9617991

GEARBOX

Housing

1шт.

9821757

PLUG

Pipe

1шт.

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

80441

SET SCREW,3/8" - 16 x 1/2"

3шт.

2

37708

COVER

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

37-1824

DOWEL,1/2" x 1 1/2"

1шт.

37-1624

DOWEL,3/8" x 1 1/2"

2шт.

463-33112

SCREW,Hex Wash Hd, 5/16"-18 x 3/4"

12шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

492-11031

LOCK WASHER,5/16"

12шт.

3

9823885

GEARBOX

Neck

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

4

39283

SHIM,.002" Thk

1шт.

39284

SHIM,.005" Thk

1шт.

39285

SHIM,.007" Thk

1шт.

39286

SHIM,.010" Thk

1шт.

5

9823897

CRANKSHAFT

1шт.

6

37433

SCREW,3.62" ID x 5.81" OD x 1.41"

1шт.

7

37431

OIL SEAL

1шт.

8

86977041

RETAINER

Bearing

1шт.

81547

LOCK WASHER,7/16"

6шт.

9

701440R91

BEARING

1шт.

10

37343

LOCK WASHER

External Tooth

1шт.

11

37342

LOCK NUT

1шт.

12

181991

OIL SEAL

2шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

6шт.

13

39290

SHIM,.010" Thk

1шт.

13

39289

SHIM,.007" Thk

1шт.

13

39288

SHIM,.005" Thk

1шт.

13

39287

SHIM,.003" Thk

1шт.

14

9823895

BEARING ASSY,94.32 mm ID x 165.1 mm OD x 20.6 mm

Bearing

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

15

188817

RING

Gear

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

16

100-11100

SNAP RING,#100, Ext

1шт.

17

37437

BEARING, ROLLER, CYL,25mm ID x 62mm OD x 19mm W

1шт.

18

9823883

GEAR SET

Hypoid

1шт.

19

86529554

TAPERED BEARING,55.58mm ID x 96.85mm OD x 21.05mm W

Half Tolerance

1шт.

20

37436

TAPERED BEARING,55.58mm ID x 96.84mm OD x 26.26mm W

1шт.

21

222015

WASHER,55.42mm ID x 82.55mm OD x 3.96mm Thk

Keyed

1шт.

22

222007

LOCK NUT

2шт.

23

37426

LOCK WASHER,Bearing, W-11

External Tooth

1шт.

24

86977042

CAP COVER

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

Выбрано товаров: 51
