Запчасти Case IH SBX550 (011) - POWER TAKE OFF SLIP CLUTCH (31) - IMPLEMENT POWER TAKE OFF

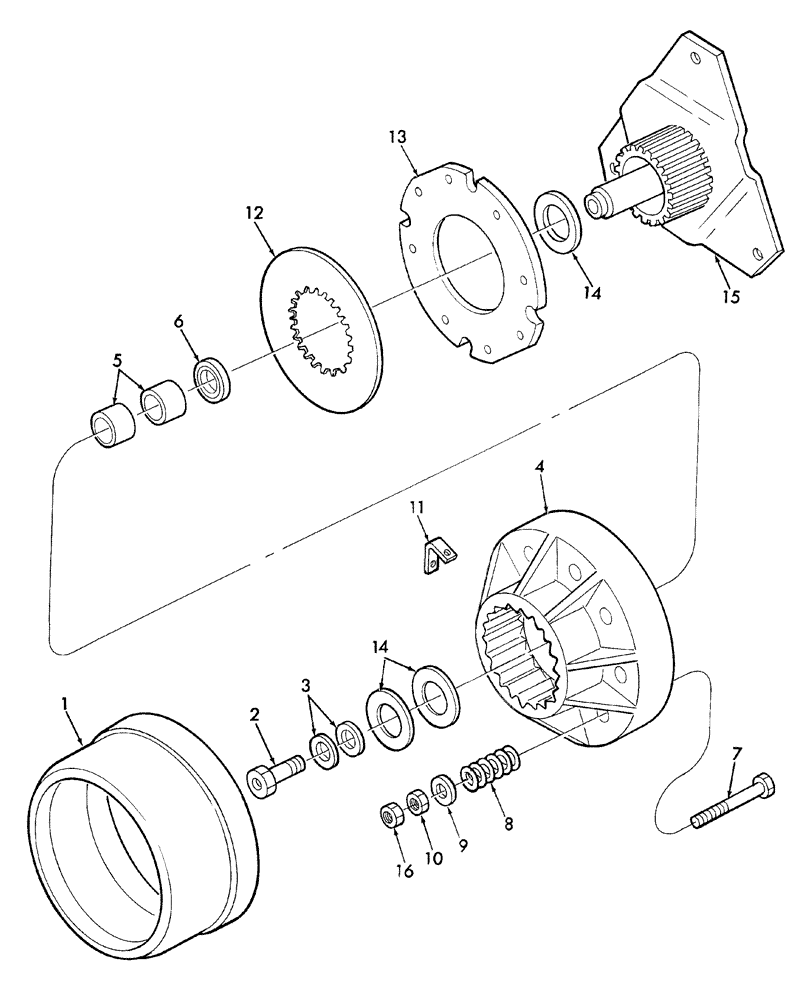

Схема запчастей Case IH SBX550 - (011) - POWER TAKE OFF SLIP CLUTCH (31) - IMPLEMENT POWER TAKE OFF
14
15
7
14
12
3
4
13
1
8
2
5
6
16
10
9
11

Артикул

Название

Примечание

Количество

1

86630327

SHIELD

1шт.

135632

SERRATED SCREW,Pan HD, 5/16" - 18 x 1/2"

THS, USR, 5/16"-18 x 1/2"

3шт.

2

221481

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-3/4"

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

86977227

HOUSING

Includes: Ref. 5 & 6

1шт.

5

184317

BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L

2шт.

6

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

1шт.

7

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

8шт.

8

86836510

SPRING

8шт.

9

9801065

WASHER

Hardened, 3/8"

8шт.

10

100016

NUT,M10 x 1.5, Cl 8

16шт.

11

645650

BRACKET

3шт.

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

825-1406

NUT,M6, Cl 8

3шт.

12

261798

CLUTCH PLATE,101.6mm ID x 174.6mm OD x 7.11mm Thk

Friction

3шт.

13

258425

CLUTCH PLATE

3шт.

14

189423

SHIM,.030" Thk

3шт.

15

849376

CLUTCH DRIVING PLATE

1шт.

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

262183

WASHER

Heat Treated

3шт.

16

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

Выбрано товаров: 23
