Запчасти Case IH SBX550 (010) - POWER TAKE OFF, REAR (31) - IMPLEMENT POWER TAKE OFF

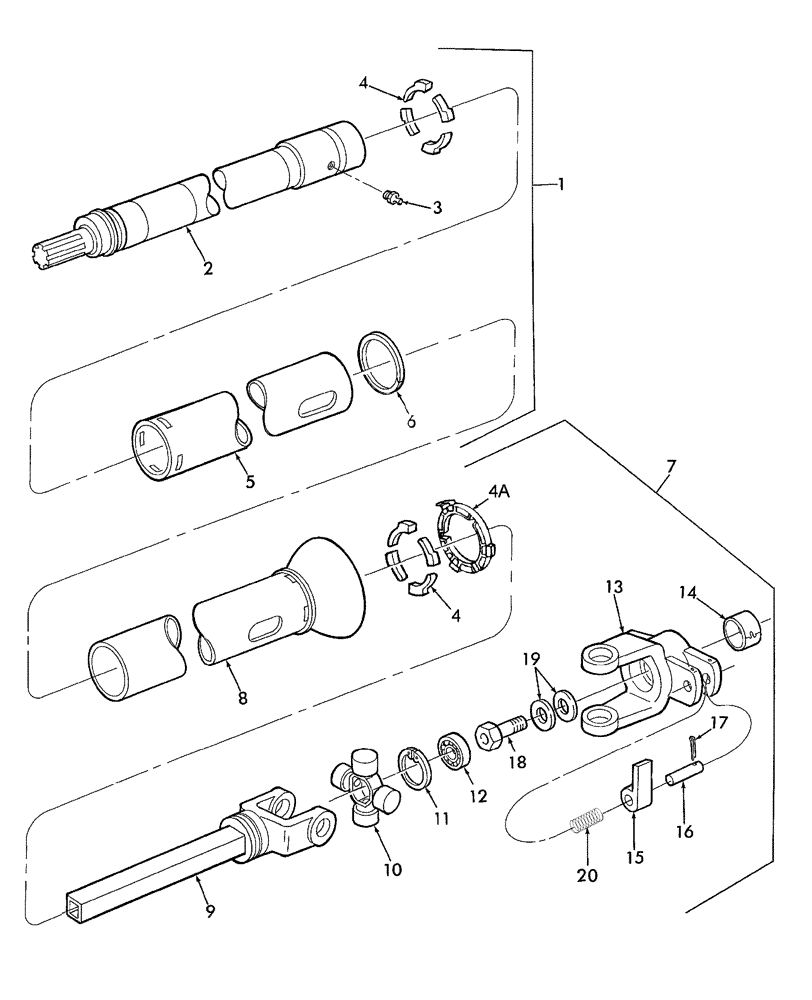

Схема запчастей Case IH SBX550 - (010) - POWER TAKE OFF, REAR (31) - IMPLEMENT POWER TAKE OFF
4
10
16
12
19
13
18
11
20
4
5
6
3
2
4a
7
8
17
1
15
14
9

Артикул

Название

Примечание

Количество

1

86509548

INNER SHIELD

Includes: Ref. 2 - 6

1шт.

2

798197

TUBE,2.75" OD, 30.5" Length

Includes: Ref. 3

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

135992C2

BEARING COVER

8шт.

4a

86509544

BEARING COVER

1шт.

5

86509550

INNER SHIELD

1шт.

6

491388R1

NYLON BEARING

1шт.

7

86509553

SHAFT

Shielded, Includes Ref. 4 & 8 - 14

1шт.

8

86509552

OUTER SHIELD

Includes: Ref. 21

1шт.

9

710445

PTO SHAFT

Yoke & Shaft

1шт.

10

913774R91

KIT

Bearing & Spider

1шт.

11

376219R1

SNAP RING,1.653, Int, #165

1шт.

12

44680

BALL BEARING,20mm ID x 42mm OD x 12mm W

1шт.

13

9845392

YOKE

& Bushing, Includes: Ref. 11, 12 & 14

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

14

184317

BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L

1шт.

15

86629486

DOG

Clutch

2шт.

16

46789

PIN,12.7mm OD x 41.27mm L

2шт.

17

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

18

221481

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-3/4"

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

19

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

20

86629502

SPRING

2шт.

21

849471

DANGER DECAL

1шт.

22

165109

DECAL

Lube Fitting

1шт.

Выбрано товаров: 25
