Запчасти Case IH SBX540 (054) - BALE LOADING CHUTE KIT & WAGON HITCH (70) - EJECTION

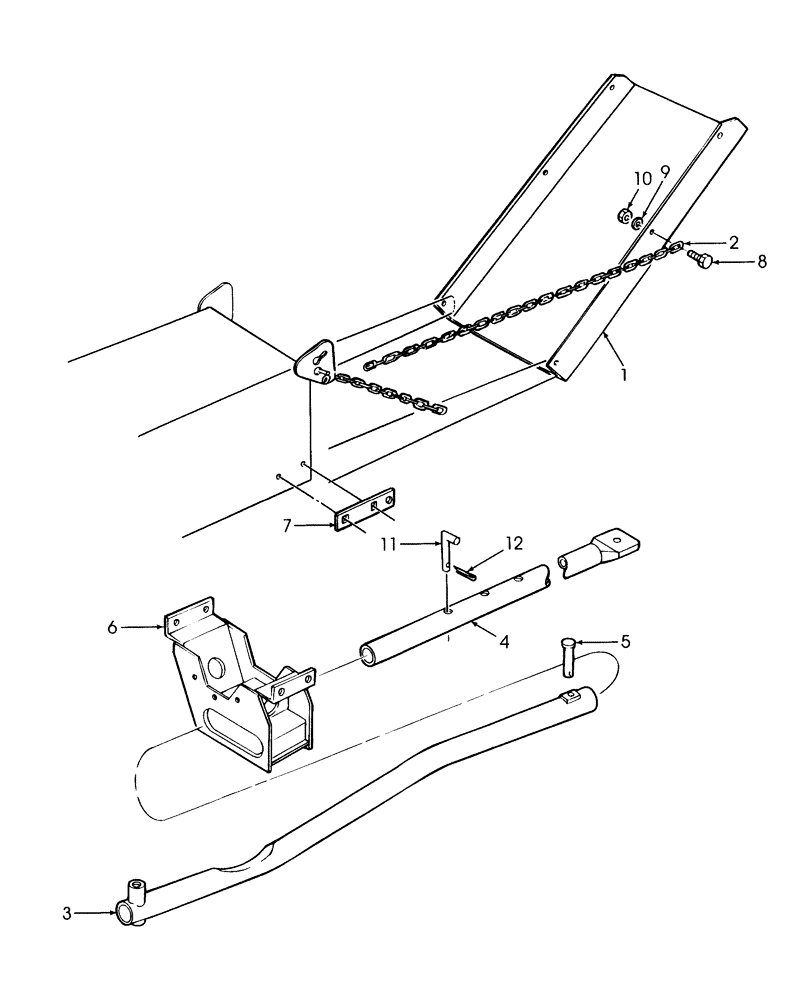

Схема запчастей Case IH SBX540 - (054) - BALE LOADING CHUTE KIT & WAGON HITCH (70) - EJECTION
6
5
4
7
10
11
9
2
3
8
12

Артикул

Название

Примечание

Количество

1

86630172

CHUTE ASSY.

48" Long

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

231-4146

NUT,3/8"-16, GB

4шт.

2

26364

CHAIN

60" Long

2шт.

3

86630169

PIPE

7/8" Dia. Wagon Hitch Pin

1шт.

3

87044850

TONGUE,63.5mm OD x 1746.2mm L

1" Dia. Wagon Hitch Pin

1шт.

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

231-42412

NUT,3/4"-10, GB

1шт.

4

86630167

TONGUE

1шт.

5

849233

PIN

5/8" x 4"

1шт.

86000109

COTTER PIN

1/8" Thick x 3-1/4" Long

1шт.

6

86630165

SUPPORT

Adjustable

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

231-4146

NUT,3/8"-16, GB

4шт.

7

86630171

EXTENSION

2шт.

Used to mount the Triple Purpose Chute. Not used with Bale Throwers

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

231-4146

NUT,3/8"-16, GB

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

10

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

11

86630164

PIN

Transport Lock, 3/4" x 5-1/2"

1шт.

12

86511448

COTTER PIN,0.148" Dia x 3.31" L

9/64" x 3-5/16"

1шт.

Выбрано товаров: 24
