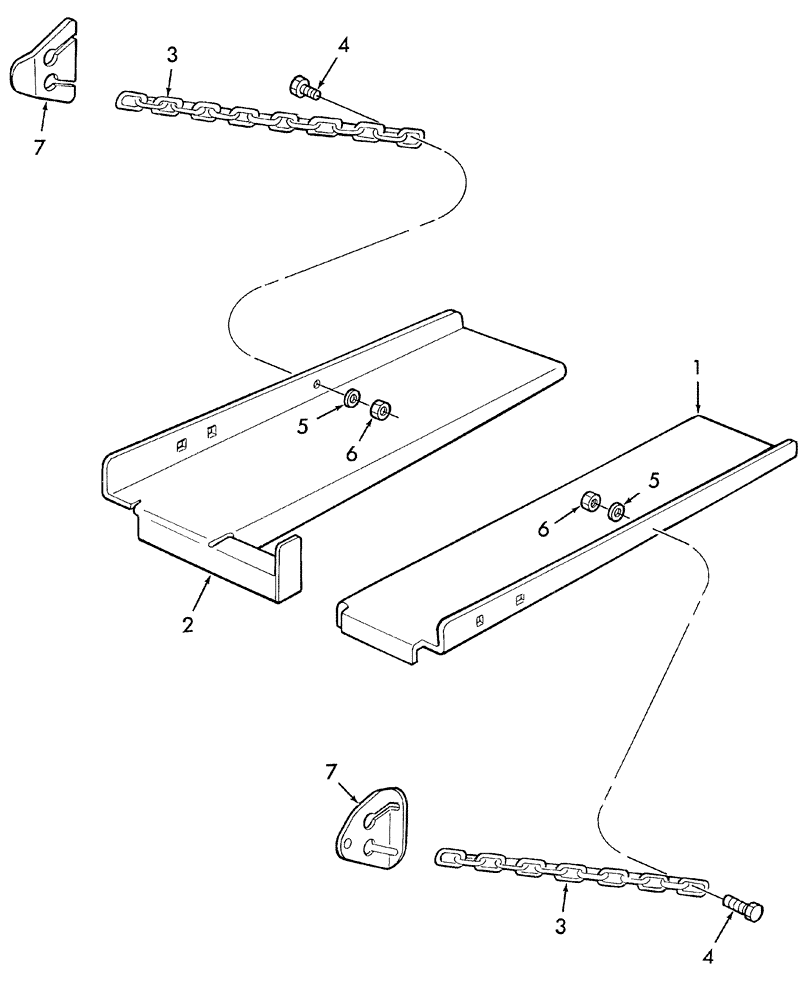

Запчасти Case IH SBX540 (052) - BALE CHUTE, TRIPLE PURPOSE (70) - EJECTION

1

86630007

CHUTE

Bale, Adapter

1шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

2

86630009

CHUTE ASSY.

Bale Rollover

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

495-21044

WASHER,3/8"

6шт.

3

196348

CHAIN,823.91mm L

Bale Chute

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

495-21044

WASHER,3/8"

2шт.

6

232-4146

NUT,3/8"-16, GC

2шт.

7

86630012

BRACKET

Chain Adjustment

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

232-4146

NUT,3/8"-16, GC

2шт.
