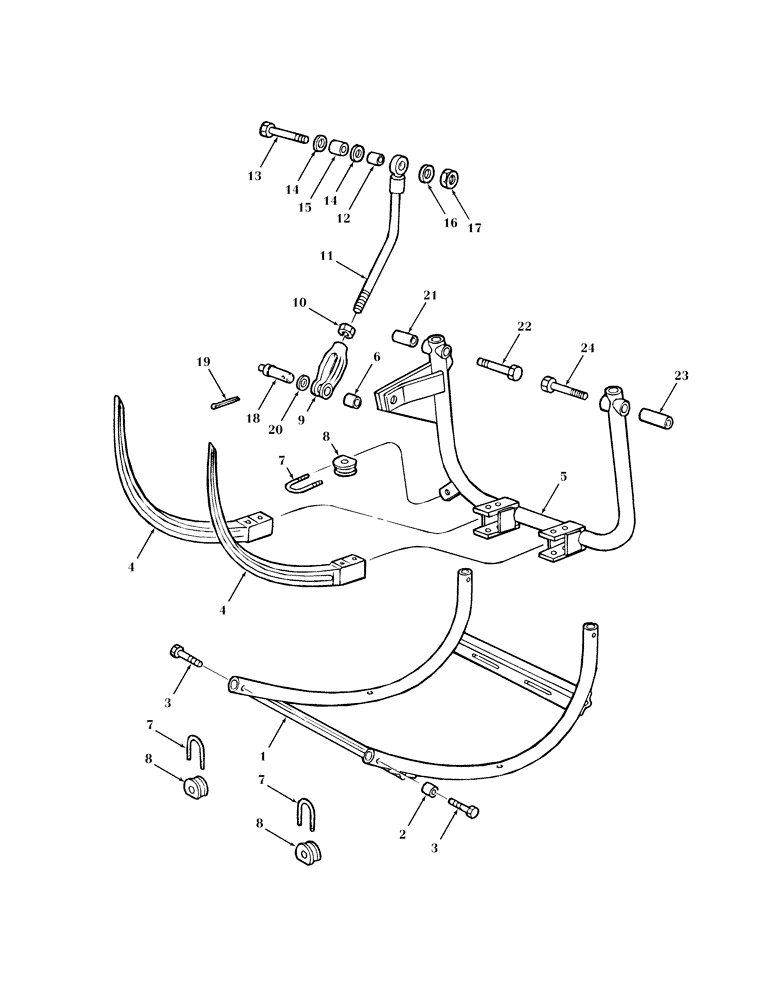

Запчасти Case IH SBX540 (070) - NEEDLE & YOKE, AUSTRALIA (68) - TYING/WRAPPING

1

86635473

GUARD

Needle

1шт.

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

Hardened, 3/8"

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

2

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

3

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

4

86641542

NEEDLE

Hardened Eye

2шт.

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

6шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

829-1405

NUT,M5, Cl 10

6шт.

5

86635491

YOKE

Needle, Includes: Ref. 6

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

6

132452

SPACER

1шт.

7

28114

U-BOLT

#10-24 x 1-15/16"

3шт.

225-14110

NUT,#10-24

6шт.

495-31025

WASHER,3/16"

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

8

86543545

GUIDE

Twine, Cast Iron

3шт.

9

86641516

CLEVIS

1шт.

10

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

11

86640956

ADJUSTMENT ROD

Needle Yoke, Includes: Ref. 12

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

132447

BUSHING,22.25mm ID x 25.45mm OD x 22mm L

1шт.

13

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

13

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

14

86516680

WASHER

2шт.

15

132449

SPACER

1шт.

16

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

1шт.

17

832-46416

NUT,M16 x 2, Cl 8

1шт.

17

85700693

NUT,5/8" - 11, Gr C

1шт.

18

132469

PIN

Includes: 219-87

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

432-816

COTTER PIN,1/8" x 1"

1шт.

20

26382

WASHER

21/32" ID x 1-3/32" OD x .060" (16 Gauge) Thick

1шт.

21

848470

SPACER

1шт.

22

280607

HYDRAULIC VALVE

Carriage, Short Neck, G5, 5/8"-11 x 4-1/2"

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

23

848469

SPACER

1шт.

24

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.
