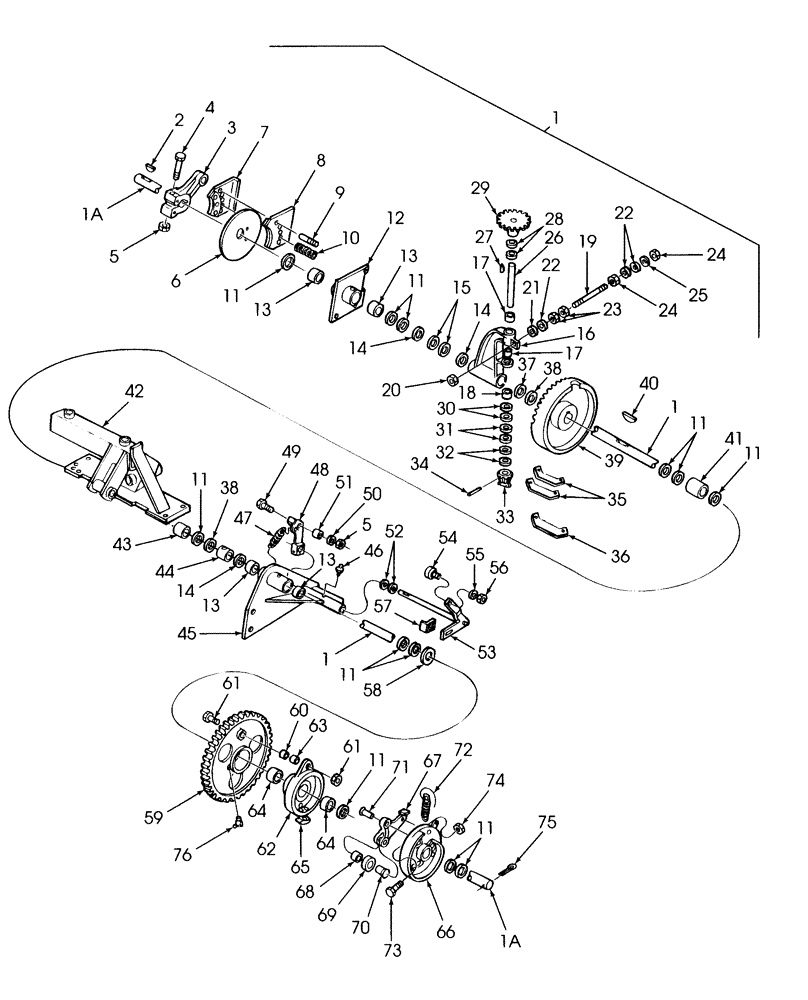

Запчасти Case IH SBX540 (048) - TWISTER, WIRE (68) - TYING/WRAPPING

1

86635590

TWISTER

Wire

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

1шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

495-11034

WASHER,5/16", SAE

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

231-4148

NUT,1/2"-13, GB

4шт.

825-1408

NUT,M8, Cl 8

1шт.

1a

9604480

SHAFT

1шт.

2

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

3

86640969

ARM

1шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

5

232-4146

NUT,3/8"-16, GC

1шт.

6

602702

BRAKE DISC

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

7

791788

BRAKE SHOE

1шт.

8

791787

BRAKE SHOE

1шт.

9

770210

PIN,9.53mm OD x 60.2mm L

Inch

2шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

4шт.

10

37945

SPRING

3шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

3шт.

280129

NUT,1/4"-20

3шт.

11

58630

WASHER,.0299" Thk

1шт.

12

603438

BEARING HOUSING,1.385" ID

Includes: (2) Ref. 13

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

232-4148

NUT,1/2"-13, GC

2шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

13

222939

BUSHING,35.13mm ID x 41.34mm OD x 19.05mm L

4шт.

14

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

15

86640859

COLLAR

2шт.

84382

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

1шт.

485-13112

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

16

NH570278

BRACKET

Pinion Gear, Includes: Ref. 17 & 18

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

17

47584

BUSHING,19.08mm ID x 22.26mm OD x 25mm L

2шт.

18

54462

BUSHING,19.15mm ID x 22.26mm OD x 15.88mm L

1шт.

84382

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

1шт.

19

198829

ADJUSTMENT SCREW,3/8" - 16 x 5 1/2"

5-1/2"

1шт.

20

232-4146

NUT,3/8"-16, GC

1шт.

21

224327

RUBBER WASHER

1шт.

22

495-21044

WASHER,3/8"

3шт.

23

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

54564

SHAFT

Pinion

1шт.

27

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

28

45960

WASHER

1шт.

29

86978504

DRIVING SPROCKET

25T

1шт.

30

187425

SHIM,.005" Thk

1шт.

31

187426

SHIM,.015" Thk

1шт.

32

195903

SHIM,.025" Thk

1шт.

33

58074

BEVEL PINION

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

34

771921

GROOVED PIN,1/4" x 1 1/4", Type E, Hardened

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

35

58076

SHIM,.010" Thk

1шт.

36

58075

WEAR PLATE

1шт.

88104

SCREW,Flat Hd, CSK, #6 - 32 x 1/2", Brass

Flat Hd, Brass, #6-32 x 1/2"

2шт.

37

570275

WASHER

1шт.

38

267571

WASHER

1шт.

39

86977126

GEAR

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

495-21044

WASHER,3/8"

1шт.

40

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

41

615996

SPACER

1шт.

42

694642

FRAME

Twister, Refer to Fig. 45

1шт.

43

620972

SPACER

1шт.

44

86640867

SPACER

1шт.

84382

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

45

848861

SUPPORT

Bearing, LH, Includes: (2) Ref. 13

1шт.

88775

LUBE NIPPLE,1/4"-28

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

825-1408

NUT,M8, Cl 8

2шт.

Screw & Nuts Fasten Spring, Ref.47

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

232-4148

NUT,1/2"-13, GC

2шт.

46

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

47

86640793

SPRING

1шт.

48

86641579

LEVER

Trip

1шт.

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

49

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

50

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

1шт.

51

86641586

SPACER,10.5mm ID x 14.3mm OD x 8mm L

1шт.

52

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

2шт.

53

86641585

KNOTTER,198mm L

Trip

1шт.

54

36800

ROLLER BEARING

Cam Roller

1шт.

55

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

56

425-116

NUT,3/8" - 24, Gr 5

1шт.

57

86640843

STOP

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

280736

NUT,5/16"-18, GC

1шт.

58

33004

WASHER

1шт.

59

86640965

GEAR

39T, Includes: Ref. 60

1шт.

60

58148

SLEEVE

Shear Bolt

1шт.

61

86578266

SHEAR BOLT,12-24 x 1 1/2"

#12-24 x 1-1/2"

1шт.

62

86641005

HUB

Clutch, Includes: Ref. 63 & 64

1шт.

84443

SQUARE BOLT,3/8" - 16 x 3/4", Gr 2

Square Hd., 3/8" x 3/4"

1шт.

Indexes Latch, Ref. 65, Head Inside Hub

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

63

58147

SHEAR BOLT BUSHING,5.9mm ID x 17.36mm OD x 12mm L

Shear Bolt

1шт.

64

222939

BUSHING,35.13mm ID x 41.34mm OD x 19.05mm L

2шт.

65

86502134

LATCH

1шт.

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

66

86977191

HUB

Twister Clutch, Includes: Ref. 67 - 71

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

67

86641708

PAWL

Includes: Ref. 68 - 70

1шт.

68

86636722

SPACER,12.62mm ID x 19.05mm OD x 15.75mm L

1шт.

69

139881

ROLLER

1шт.

70

617446

RIVET,Csk, 1/2" x 1 3/8"

1шт.

71

617445

RIVET,Csk, 1/2" x 1 23/32"

1шт.

72

18

SPRING

Safety Hook

1шт.

73

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

74

232-4148

NUT,1/2"-13, GC

1шт.

75

733-5040

COTTER PIN,M5 x 40

1шт.

76

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.
