Запчасти Case IH SBX540 (029) - PICKUP TIRE (PNEUMATIC) & WHEEL (44) - WHEELS

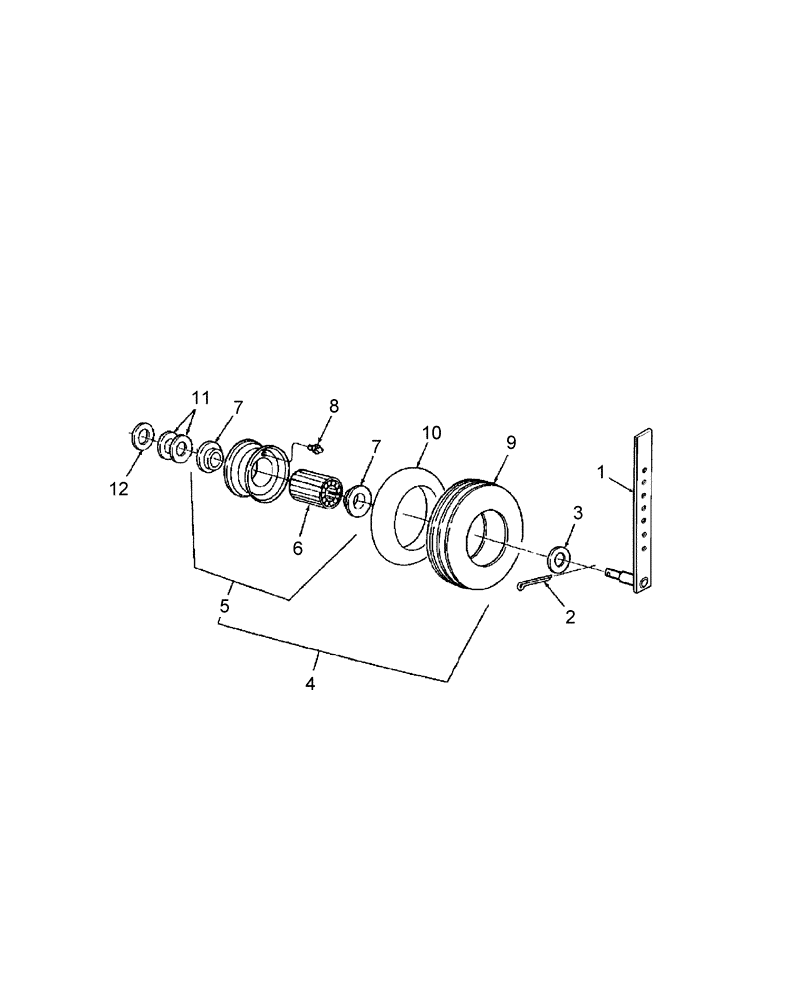

Схема запчастей Case IH SBX540 - (029) - PICKUP TIRE (PNEUMATIC) & WHEEL (44) - WHEELS
5
2
8
6
11
3
4
9
7
10
1
7
12

Артикул

Название

Примечание

Количество

1

86630890

BRACKET

for Flotation Tire & Wheel

1шт.

2

87399

COTTER PIN,1/2 x 3 Bolt

For Flotation Tire

1шт.

3

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

4

86622676

TYRE/TIRE

Pickup, Flotation Tire

1шт.

5

86622675

RIM

Pickup for Flotation Tire

1шт.

6

86509133

ROLLER BEARING,25.48mm ID x 35.05mm OD x 57.15mm W

for Flotation Tire & Wheel

1шт.

7

86516159

RETAINER

for Flotation Tire & Wheel

2шт.

8

571382

LUBE NIPPLE,1/4"-28 NPT x 1.62" lg

For Flotation Tire & Wheel

1шт.

9

279537

TYRE/TIRE

4-Ply, Rib-Flotation, 15 x 6 x 6

1шт.

10

279538

TUBE

Inner, 15 x 6 x 6, for Flotation Tire

1шт.

11

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

1шт.

11

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

1шт.

12

86529391

WASHER

Notched, For Flotation Tire

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

Выбрано товаров: 14
