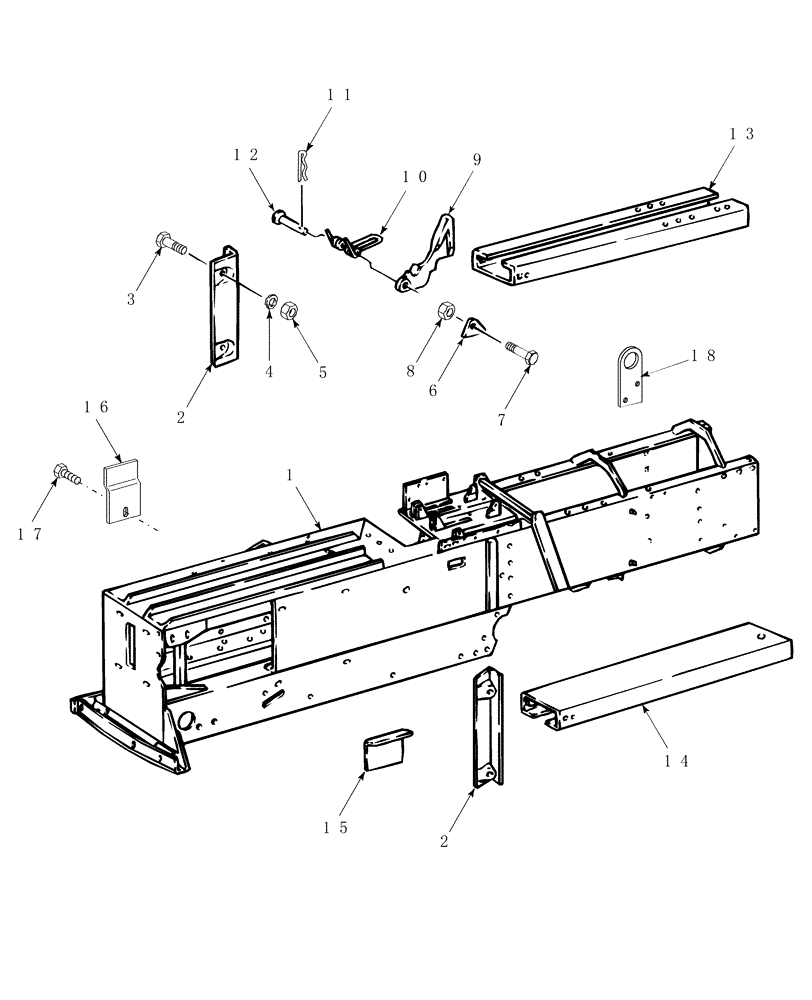

Запчасти Case IH SBX540 (065) - MAIN FRAME, AUSTRALIA (39) - FRAMES AND BALLASTING

1

86635578

CHAMBER

Bale, SBX530

1шт.

1

86635617

BALE CHAMBER

Bale, SBX540

1шт.

2

86626431

STOP

Hay Side

2шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

854913

STOP

Plunger Dog

6шт.

7

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

6шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

8

280736

NUT,5/16"-18, GC

6шт.

9

86640942

DOG

Plunger

6шт.

Shown in Underside Position

1шт.

10

86505745

SPRING,Torsion

6шт.

11

216698

COTTER PIN,0.125" OD x 1.75" L

6шт.

12

771478

PIN,12.7mm OD x 86.77mm L

6шт.

13

86626067

CHANNEL

Tension Rail, Upper

1шт.

14

86626069

CHANNEL

Tension Rail, Lower

1шт.

15

86640954

COVER

1шт.

16

86626129

SHIELD

1шт.

17

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

18

86630680

BRACKET

Slinging

3шт.

9622377

DECAL

Hook

3шт.

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.
