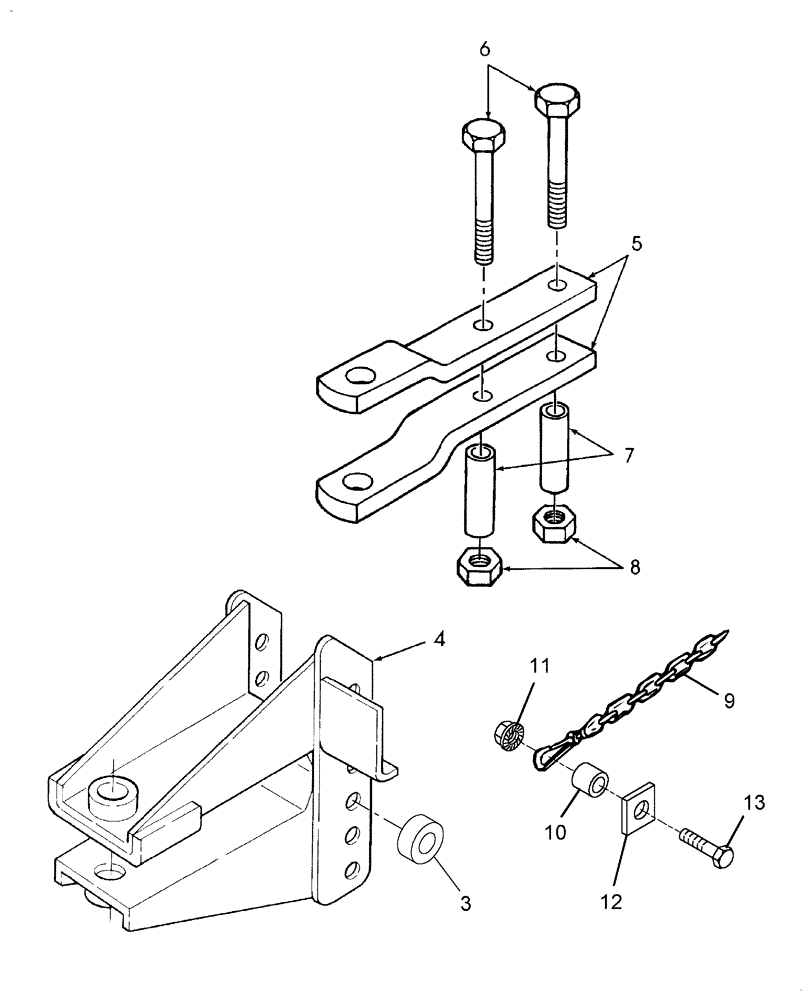

Запчасти Case IH SBX540 (001) - HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

3

86640836

SPACER

3/4" Thick

4шт.

4

86630858

HITCH ASSY

Clevis, SBX540

1шт.

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

SBX540

4шт.

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8", SBX540

8шт.

5

86626091

BAR

Clevis, SBX520, SBX530

2шт.

6

814-16190

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8

SBX520, SBX530

2шт.

7

9802046

SPACER

SBX520, SBX530

2шт.

8

832-46416

NUT,M16 x 2, Cl 8

SBX520, SBX530

2шт.

9

851086

CHAIN

Tow

1шт.

10

86618413

HUB

1шт.

11

85700693

NUT,5/8" - 11, Gr C

1шт.

12

BER714680

PLATE

1шт.

13

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.
