Запчасти Case IH SBX540 (017) - POWER TAKE OFF, REAR, SBX530 & SBX540 (31) - IMPLEMENT POWER TAKE OFF

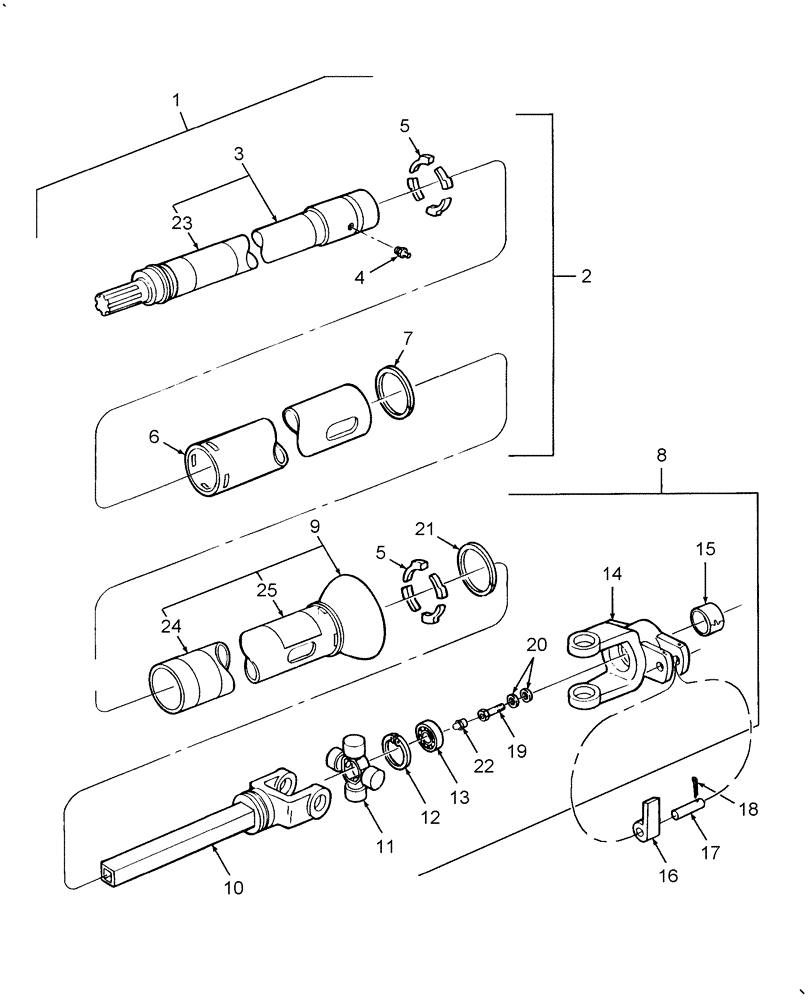

Схема запчастей Case IH SBX540 - (017) - POWER TAKE OFF, REAR, SBX530 & SBX540 (31) - IMPLEMENT POWER TAKE OFF
15
10
24
3
25
20
2
12
11
8
1
6
9
21
19
5
14
22
5
18
16
13
7
4
23
17

Артикул

Название

Примечание

Количество

1

9843080

SPARE PART

PTO, Rear

1шт.

2

86509548

INNER SHIELD

Plastic

1шт.

3

798197

TUBE,2.75" OD, 30.5" Length

Includes Ref. 3

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

185746

NYLON BEARING,0.317"

8шт.

Used for Front and Rear Metal Shields. Also Used for Plastic Front Shields.

1шт.

6

712979

SHIELD

Inner, Metal

1шт.

6

86509550

INNER SHIELD

Plastic

1шт.

7

136418

NYLON BEARING,64.95mm ID x 81.03mm OD x 6.6mm Thk

Nylon

1шт.

8

86509551

PTO

Plastic

1шт.

9

9827960

SHIELD

Outer, Metal

1шт.

9

86509552

OUTER SHIELD

Plastic

1шт.

10

710445

PTO SHAFT

1шт.

11

126761

U-JOINT SPIDER

1шт.

12

183442

SNAP RING,1.653, Int, #165

1шт.

13

86629499

BALL BEARING,20mm ID x 42mm OD x 12mm W

1шт.

14

9845392

YOKE

& Bushing, Includes Ref. 12, 13 & 15

1шт.

15

184317

BUSHING,34.88mm ID x 38.13mm OD x 33.3mm L

1шт.

16

218527

DOG

Clutch

2шт.

17

46789

PIN,12.7mm OD x 41.27mm L

1/2" x 1-5/8"

2шт.

18

87673

COTTER PIN,1/8" x 1 3/4"

2шт.

19

221481

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

Cap, HH, Drilled, G5, 1/2"-13 x 1-3/4"

1шт.

20

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

21

86509544

BEARING COVER

1шт.

Used for Plastic Rear Shields Only.

1шт.

22

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

23

849472

DANGER DECAL

English

1шт.

23

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

24

165109

DECAL

Lube

1шт.

25

849471

DANGER DECAL

English

1шт.

25

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

Выбрано товаров: 33
