Запчасти Case IH SBX540 (016) - POWER TAKE OFF, FRONT, SBX530, SBX540 (31) - IMPLEMENT POWER TAKE OFF

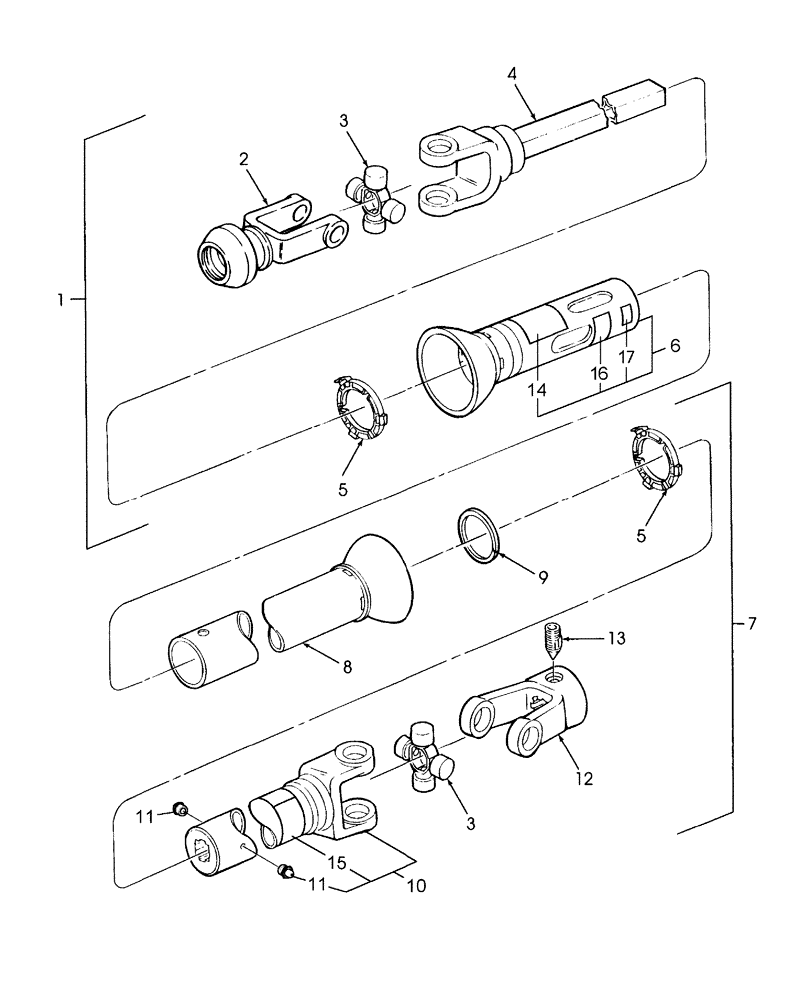

Схема запчастей Case IH SBX540 - (016) - POWER TAKE OFF, FRONT, SBX530, SBX540 (31) - IMPLEMENT POWER TAKE OFF
11
2
17
15
14
1
3
12
11
3
6
8
13
9
4
10
5
7
16
5

Артикул

Название

Примечание

Количество

1

86509541

PTO

Shielded Shaft, Heavy Duty, Includes: Ref. 2 - 6

1шт.

2

850618

YOKE

1шт.

3

913774R91

KIT

Bearing & Spider, Includes: (4) Retaining Rings & (1) Lube Fitting, Ref. 11

2шт.

4

710441

YOKE

& Shaft

1шт.

5

135992C2

BEARING COVER

8шт.

86509544

BEARING COVER

2шт.

6

86509543

OUTER SHIELD

1шт.

7

86509540

PTO

Tube, Heavy Duty, Includes: Ref. 3, 5 & 8 13

1шт.

8

86509542

INNER SHIELD

1шт.

9

491388R1

NYLON BEARING

1шт.

10

710438

PTO SHAFT

Yoke & Tube, Includes: (2) Ref. 11

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

131902

YOKE

1шт.

13

763883

SET SCREW,1/2" - 20 x 1-1/4"

HS, Self-Locking, Cone Pt, 1/2"-20 x 1-1/4"

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

14

849471

DANGER DECAL

English

1шт.

14

849482

DANGER DECAL

French

1шт.

15

849472

DANGER DECAL

English

1шт.

15

849483

DANGER DECAL

French

1шт.

16

87041061

WARNING DECAL

English

1шт.

16

87042013

DECAL

WARNING, French

1шт.

17

165109

DECAL

Lube

1шт.

Выбрано товаров: 22
