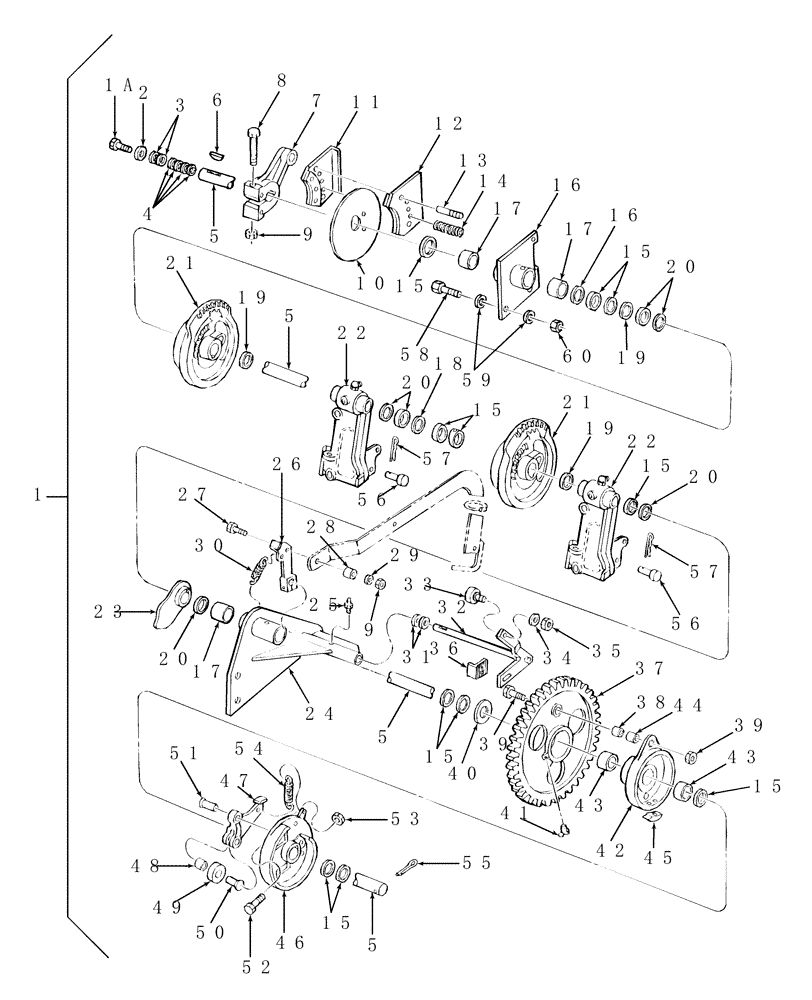

Запчасти Case IH SBX530 (041) - TWINE KNOTTER, SBX520 & SBX530 (68) - TYING/WRAPPING
№
Артикул
Название
Примечание
Количество
1
86635487
SHAFT
Twine Knotter
1шт.
1a
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
1шт.
2
264198
WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk
1шт.
3
495-21038
WASHER,5/16"
1шт.
4
29046
WASHER,11.1mm ID x 25.4mm OD x 0.457mm Thk
0.018" Thick
1шт.
5
848670
SHAFT
Knotter
1шт.
6
126-28
WOODRUFF KEY,#18, 1/4" x 1 1/8"
1шт.
7
86977129
ARM
Knotter
1шт.
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
2шт.
8
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
9
232-4146
NUT,3/8"-16, GC
1шт.
10
602702
BRAKE DISC
1шт.
11
791788
BRAKE SHOE
1шт.
12
791787
BRAKE SHOE
1шт.
13
770210
PIN,9.53mm OD x 60.2mm L
Inch, 3/8"
2шт.
425-146
JAM NUT,3/8" - 16, Gr 5
4шт.
435-1828
GROOVED PIN,1/4" x 1 3/4", Type A
1шт.
14
128383
SPRING
2шт.
413-440
BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5
2шт.
495-11028
WASHER,1/4", SAE
(.065" Thk)
2шт.
280129
NUT,1/4"-20
2шт.
15
672
WASHER
1шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
4шт.
485-13112
SET SCREW,Sq Hd, 5/16"-18 x 3/4"
2шт.
280129
NUT,1/4"-20
3шт.
570275
WASHER
3шт.
16
86977193
BEARING ASSY,28.727 mm ID
RH, Includes: (2) Ref. 17
1шт.
571382
LUBE NIPPLE,1/4"-28 NPT x 1.62" lg
1шт.
17
28280
BUSHING,28.71mm ID x 31.89mm OD x 25.4mm L
4шт.
18
634037
SPACER
2шт.
19
86629477
WASHER
1-1/8"
1шт.
20
673
WASHER,29mm ID x 41mm OD x 1.52mm Thk
1шт.
21
645744
SERVICE KIT,Knotter Cam
Gear Kit
1шт.
22
86977218
KNOTTER FRAME,Assembly
Knotter, Refer to Fig. 040 for Components, SBX520, SBX530
2шт.
23
86977194
CAM
Twine Finger
1шт.
126-17
WOODRUFF KEY,#91, 1/4" x 3/4"
1шт.
24
849010
SUPPORT
LH, Includes: (2) Ref. 17
1шт.
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
2шт.
231-4148
NUT,1/2"-13, GB
2шт.
26
86641579
LEVER
Trip
1шт.
126-12
WOODRUFF KEY,#6, 5/32" x 5/8"
1шт.
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
425-105
NUT,5/16"-18, G5
1шт.
27
88011
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
1шт.
28
86641586
SPACER,10.5mm ID x 14.3mm OD x 8mm L
1шт.
29
435-1828
GROOVED PIN,1/4" x 1 3/4", Type A
1шт.
30
86640793
SPRING
1шт.
31
27697
WASHER,16.66mm ID x 27mm OD x 1.52mm Thk
2шт.
32
86641585
KNOTTER,198mm L
Trip
1шт.
33
36800
ROLLER BEARING
Cam Roller
1шт.
34
285072
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
(3/8")
1шт.
35
425-116
NUT,3/8" - 24, Gr 5
1шт.
36
86640843
STOP
1шт.
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
285072
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
(3/8")
2шт.
280736
NUT,5/16"-18, GC
1шт.
37
86640965
GEAR
39T, Includes: Ref. 38
1шт.
38
58148
SLEEVE
Shear Bolt
1шт.
39
86578266
SHEAR BOLT,12-24 x 1 1/2"
Shear, #12-24 x 1-1/2"
1шт.
40
25097
WASHER
1шт.
41
219-90
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
1шт.
42
87707051
HUB
Clutch, Includes: Ref. 43 & 44
1шт.
84443
SQUARE BOLT,3/8" - 16 x 3/4", Gr 2
Square Hd., 3/8" x 3/4"
1шт.
492-11038
LOCK WASHER,3/8"
1шт.
425-106
NUT,3/8"-16, Cl 5
1шт.
43
86900098
BUSHING,28.7mm ID x 31.84mm OD x 19.05mm L
2шт.
44
58147
SHEAR BOLT BUSHING,5.9mm ID x 17.36mm OD x 12mm L
Shear Bolt
1шт.
45
86502134
LATCH
1шт.
414-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
1шт.
492-11038
LOCK WASHER,3/8"
1шт.
825-1410
NUT,M10, Cl 8
1шт.
425-106
NUT,3/8"-16, Cl 5
1шт.
46
86977192
CLUTCH
Knotter, Includes: Ref. 47 - 51
1шт.
126-28
WOODRUFF KEY,#18, 1/4" x 1 1/8"
1шт.
47
86641708
PAWL
Knotter Pawl, Includes: Ref. 48 - 50
1шт.
48
86636722
SPACER,12.62mm ID x 19.05mm OD x 15.75mm L
5/8" Long
1шт.
86977258
SPACER
1/2" Long
1шт.
49
139881
ROLLER
1шт.
50
617446
RIVET,Csk, 1/2" x 1 3/8"
1шт.
51
617445
RIVET,Csk, 1/2" x 1 23/32"
1шт.
53
232-4148
NUT,1/2"-13, GC
1шт.
52
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
1шт.
54
18
SPRING
Safety Hook
1шт.
55
432-1224
COTTER PIN,3/16" x 1-1/2"
1шт.
56
710230
RIVET,Button, 9.53mm OD x 25.4mm L
Drilled, 3/8" x 1"
2шт.
57
216698
COTTER PIN,0.125" OD x 1.75" L
2шт.
58
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
4шт.
60
231-4148
NUT,1/2"-13, GB
4шт.
87010995
SPECIAL TOOL
Knife Adjusting (Not Shown)
1шт.
Выбрано товаров: 94
