Запчасти Case IH SBX530 (057[3]) - HYDRAFORMATIC™ BALE TENSION, P.I.N. HBJ0044216 & AFTER (62) - PRESSING - BALE FORMATION

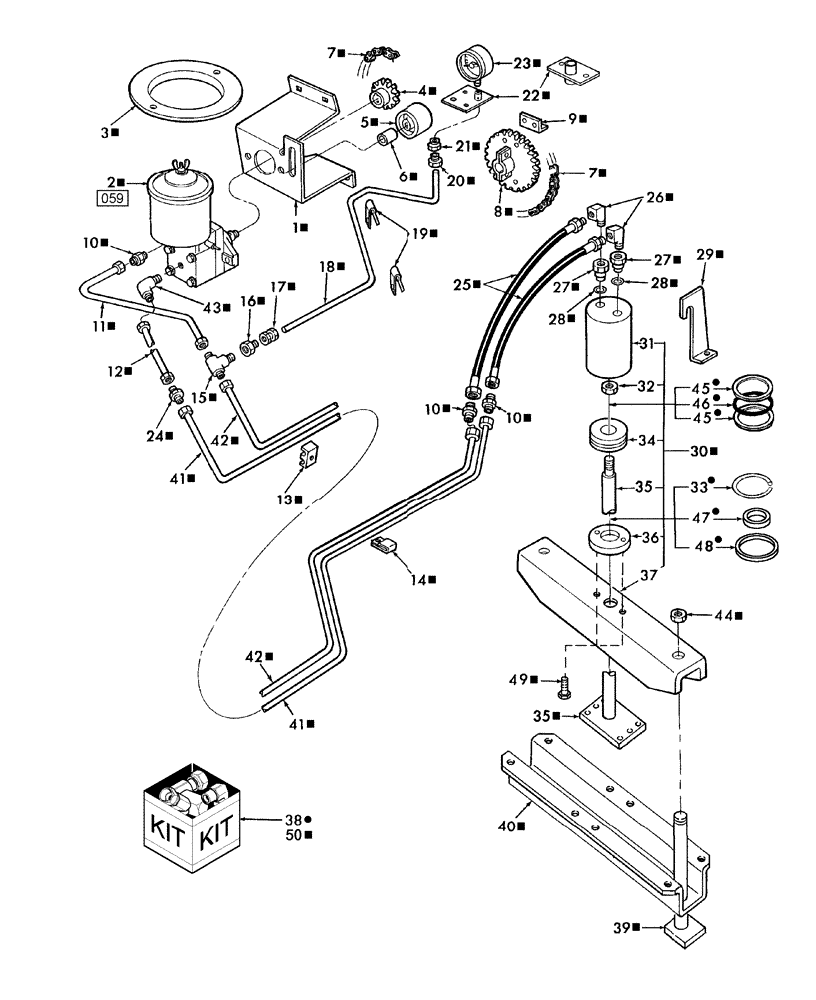

Схема запчастей Case IH SBX530 - (057[3]) - HYDRAFORMATIC™ BALE TENSION, P.I.N. HBJ0044216 & AFTER (62) - PRESSING - BALE FORMATION
31
48
35
13
41
26
39
28
4
24
36
50
1
34
11
28
19
22
40
29
32
21
12
47
35
25
16
46
42
23
059
45
30
45
37
33
15
44
3
27
5
8
7
18
43
38
41
10
27
6
49
7
10
2
42
9
20
10
14
17

Артикул

Название

Примечание

Количество

1

848629

BRACKET

SBX530 & SBX540 Only, Pump attaches to Main Frame for SBX520

1шт.

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

4шт.

89706690

NUT,M8, Cl 8

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

2

86640940

HYDRAULIC PUMP,3.93 CC

1шт.

2

86640940R

REMAN-HYD PUMP

SBX520, SBX530, SBX540, All PIN HBJ0044216 & Aft.

1шт.

2

86640940C

CORE-HYDRAULIC PUMP

Return Number

1шт.

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

3

639503

COVER

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

4

86630769

DRIVING SPROCKET

11T

1шт.

88406

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

80430

SET SCREW,1/4" - 20 x 1/4"

2шт.

88130

NUT,1/2"-20, GC

1шт.

5

678571

IDLER WHEEL

1шт.

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

88419

BOLT,Rd Hd, Sht Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

337475

NUT,M12, Cl 10

1шт.

280431

NUT,1/2"-13, G5

1шт.

6

48462

SPACER,12.852mm ID x 25.4mm OD x 31.8mm L

1шт.

7

849223

CHAIN

Roller, RC41, SBX520

1шт.

Not Includes in Ref. 49 Kit, Must be Ordered Separately.

1шт.

46234

CONNECTING LINK

Roller, RC 41

77шт.

44428

CONNECTING LINK

RC 41, Cotter Style

1шт.

7

848631

CHAIN

Roller, RC41, SBX530, SBX540

1шт.

46234

CONNECTING LINK

Roller, RC 41

73шт.

44428

CONNECTING LINK

RC 41, Cotter Style

1шт.

8

642577

DRIVING SPROCKET

40T, SBX520, Includes: Ref. 9

1шт.

Not Includes in Ref. 49 Kit, Must be Ordered Separately.

1шт.

8

848623

DRIVING SPROCKET

34T, SBX530, SBX540, Includes: Ref. 9

1шт.

80430

SET SCREW,1/4" - 20 x 1/4"

1шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

89706690

NUT,M8, Cl 8

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

642581

ANGLE

SBX520

2шт.

Not Includes in Ref. 49 Kit, Must be Ordered Separately.

1шт.

9

848628

ANGLE

SBX530 & SBX540

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

89706690

NUT,M8, Cl 8

2шт.

10

618179

HYD CONNECTOR,Flareless, 9/16"-18 Tube x 1/4" NPT

Male

3шт.

11

PL

PROCURE LOCALLY

Tube, 3/8" OD x 24.9" Lg., SBX520

1шт.

848903

1шт.

514929

FERRULE,Flareless, 3/8" Tube

2шт.

11

849141

TUBE,9.52 mm DIA

3/8" OD x 23.45" Lg. SBX530, SBX540

1шт.

514929

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

12

PL

PROCURE LOCALLY

Tube, 3/8" OD x 23.45" Lg., SBX520

1шт.

849302

1шт.

80681

LOCK WASHER,5/16"

4шт.

514929

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

12

849142

TUBE,9.52 mm DIA

3/8" OD x 18.08" Lg. SBX530, SBX540

1шт.

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

514929

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

13

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

2шт.

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

14

605025

CLAMP,3/8", Coated, 3/8" Bolt

2шт.

87256

SCREW,Slotted Truss Hd, 5/16" - 18 x 1"

Truss Hd, 5/16"-18 x 1"

2шт.

80681

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

625015

3 WAY CONNECTION

Male Branch, 3/8" OD Tube x 1/4" NPT

1шт.

16

87013887

ADAPTER

1шт.

17

708164

HYD CONNECTOR

Compression Female, 1/8" NPT x 1/8" Tube OD

1шт.

17

646429

HYD CONNECTOR

1/8" NPTF x 3/16" Tube OD

1шт.

18

59585

HYD TUBE,1.75mm ID x 144mm L

1/8" OD x 37.4" Lg., Tubing 144" Lg., Cut to Fit

1шт.

18

86565914

HYD TUBE,4.78 mm OD

3/16" OD, Formed

1шт.

19

237911

WIRE CLAMP

1шт.

19

134579

WIRE CLAMP,J

7/16" x 3/8" Bolt

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

9628503

NUT,3/8"-16, G5

1шт.

20

59735

HYD CONNECTOR

Connector, Male, 1/8" NPT x 1/8" Tube OD

1шт.

21

87938

ADAPTER,1/4" NPT x 1/8" NPT

1шт.

20

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

1шт.

22

772255

PLATE

2-7/8" x 3-1/2" , Mounted above Knotter Drive Gears

1шт.

22

9829285

PLATE

1-3/4" x 2-3/4", Mounted on Hood.

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

23

9807929

GAUGE

Pressure Liquid Filled

1шт.

47265

COVER

Plexiglass Dial, Services 13507

1шт.

47266

LOCKING RING

Cover Retaining, Services 13507

1шт.

24

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

(Union)

1шт.

25

237732

HYDRAULIC HOSE,0.25" ID x 24.00"

2шт.

26

58771

ELBOW

Fitting, Street

2шт.

27

126786

ADAPTER

Includes: Ref. 28

2шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

29

174107

HOOK

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

100016

NUT,M10 x 1.5, Cl 8

1шт.

30

87723257

HYDRAULIC CYLINDER,25.4mm Rod, 101.6mm Stroke

Tension, Includes: Ref. 31 - 38

1шт.

30

87723257R

REMAN-HYD CYLINDER

SBX520 (1/02-8/08), SBX530, SBX540, Both (12/01-8/08), All CASE IH SQUARE BALER, Tension, P.I.N. HBJ0044216 & AFTER

1шт.

30

87723257C

CORE-HYD CYLINDER

Return Number

1шт.

31

NSS

NOT SOLD SEPARAT

Cylinder, Tension

1шт.

32

280724

LOCK NUT,3/4" - 16

1шт.

33

NSS

NOT SOLD SEPARAT

1шт.

34

87027942

PISTON

1шт.

35

87723977

PISTON ROD

1шт.

36

87723976

CYLINDER END CAP

1шт.

37

87030041

BAR

Tension

1шт.

38

87723402

SEAL KIT

Kit

1шт.

39

86626059

ROD

2шт.

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

280129

NUT,1/4"-20

2шт.

40

684354

PLATE

Tension Lower

1шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

9628503

NUT,3/8"-16, G5

4шт.

41

PL

PROCURE LOCALLY

Tube, 3/8" OD x 73" Lg.,(849144)

1шт.

514929

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

42

PL

PROCURE LOCALLY

Tube, 3/8" OD x 70" Lg.(849143)

1шт.

514929

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

43

710225

ELBOW

90°, Male

1шт.

44

85700693

NUT,5/8" - 11, Gr C

2шт.

45

NSS

NOT SOLD SEPARAT

Back-Up Washer

2шт.

46

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

47

NSS

NOT SOLD SEPARAT

Bushing

1шт.

48

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.

49

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

50

715244006

DIA KIT, HARVESTER

HydraFormatic Bale Tension, Includes: Installation Instructions

1шт.
