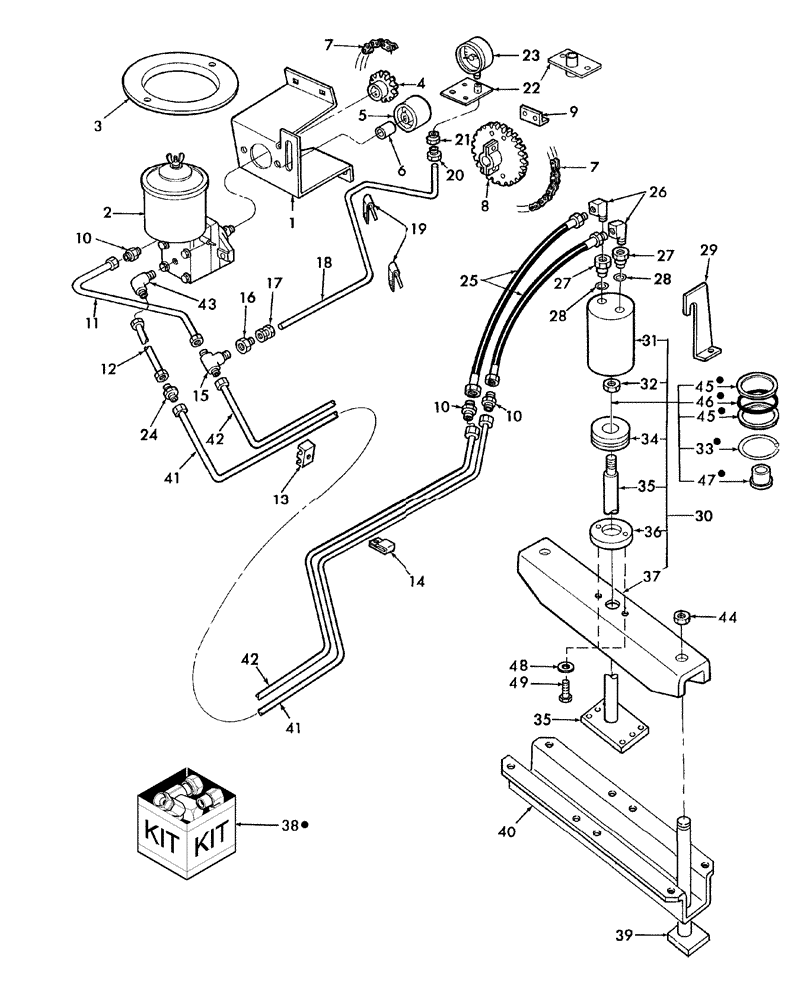

Запчасти Case IH SBX530 (057[2]) - BALE TENSION, HYDRAFORMATIC™, P.I.N. HBJ0002930 (SBX530) & HBJ0003218 (SBX540) & AFTER (62) - PRESSING - BALE FORMATION

1

86629630

BRACKET

Pump

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

425-105

NUT,5/16"-18, G5

4шт.

2

86640940

HYDRAULIC PUMP,3.93 CC

Oil, Refer to Fig. 056

1шт.

2

86640940R

REMAN-HYD PUMP

SBX530 PIN HBJ0002930 & Aft., SBX540 PIN HBJ000318 & Aft.

1шт.

2

86640940C

CORE-HYDRAULIC PUMP

Return Number

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

3

86626052

COVER

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

4

86630769

DRIVING SPROCKET

11T

1шт.

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

80430

SET SCREW,1/4" - 20 x 1/4"

2шт.

88130

NUT,1/2"-20, GC

1шт.

5

678571

IDLER WHEEL

Nylon

1шт.

88419

BOLT,Rd Hd, Sht Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

6

86630770

SPACER,13.01mm ID x 25.4mm OD x 31.75mm L

1шт.

7

848631

CHAIN

Roller, RC41

1шт.

8

86630777

DRIVING SPROCKET

34T, Includes: Ref. 9

1шт.

80430

SET SCREW,1/4" - 20 x 1/4"

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

9

848628

ANGLE

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

425-105

NUT,5/16"-18, G5

4шт.

10

222-1607

HYD CONNECTOR,Flareless, 9/16"-18 Tube x 1/4" NPT

Male

3шт.

11

849141

TUBE,9.52 mm DIA

3/8" OD x 23.45"

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

12

849142

TUBE,9.52 mm DIA

3/8" OD x 18.08"

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

13

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

14

605025

CLAMP,3/8", Coated, 3/8" Bolt

2шт.

87256

SCREW,Slotted Truss Hd, 5/16" - 18 x 1"

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

15

625015

3 WAY CONNECTION

Male Branch, 3/8" OD Tube x 1/4" NPT

1шт.

16

NLS

NO LONGER SERVICED

1шт.

17

646429

HYD CONNECTOR

1/8" NPTF x 3/16" Tube OD

1шт.

18

86565914

HYD TUBE,4.78 mm OD

3/16" OD - Formed

1шт.

19

134579

WIRE CLAMP,J

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

20

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

1шт.

20

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

1шт.

21

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1шт.

22

9829285

PLATE

1-3/4" x 2-3/4", Mounted on Hood.

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

23

9807929

GAUGE

Pressure

1шт.

24

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

1шт.

25

237732

HYDRAULIC HOSE,0.25" ID x 24.00"

2шт.

26

58771

ELBOW

Street

2шт.

27

126786

ADAPTER

Includes: Ref. 28

2шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

29

86626036

HOOK

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

825-1410

NUT,M10, Cl 8

1шт.

30

87018105

HYDRAULIC CYLINDER

Hydraformatic Bale Tension

1шт.

30

87723257R

REMAN-HYD CYLINDER

SBX530 P.I.N. HBJ0002930, SBX540 P.I.N. HBJ0003218, Both CASE IH SQUARE BALER, Hydraformatic Bale Tension & AFTER (12/01-8/08), Reman For New PN 87018105

1шт.

30

87723257C

CORE-HYD CYLINDER

Return Number

1шт.

31

NSS

NOT SOLD SEPARAT

Hydraulic Tension Cylinder

1шт.

32

280724

LOCK NUT,3/4" - 16

1шт.

33

512015

SNAP RING

Int, 3.062"

1шт.

34

87027942

PISTON

1шт.

35

87028660

PISTON ROD

1шт.

36

87025434

CYLINDER END CAP

1шт.

37

87030041

BAR

1шт.

38

87028661

SEAL KIT

1шт.

39

86626059

ROD

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

280129

NUT,1/4"-20

2шт.

40

86626062

PLATE

Rail, Tension, Lower

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

41

PL

PROCURE LOCALLY

Tube, Hydraulic, 3/8" OD x 73"

1шт.

849144

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

42

PL

PROCURE LOCALLY

Tube, Hydraulic, 3/8" OD x 70"

1шт.

849143

1шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

43

222-2106

ELBOW

90°, Male

1шт.

44

85700693

NUT,5/8" - 11, Gr C

2шт.

45

235784

WASHER,66.62mm ID x 76.43mm OD x 1.52mm Thk

Back-Up, 2.643" ID x .064" Thick

2шт.

46

86900100

O-RING,0.215" Thk x 2.61" ID, -334, 90 Duro

2.600" ID x .210" Thick

1шт.

47

NSS

NOT SOLD SEPARAT

Bushing

1шт.

48

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

Lock Washer used in old style cylinders only. New style cylinders no longer use lock washer due to stripping threads in cylinder head. Use 2 drops of Loctite 243 on cylinder head bolts instead of lock washers.

1шт.

49

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
