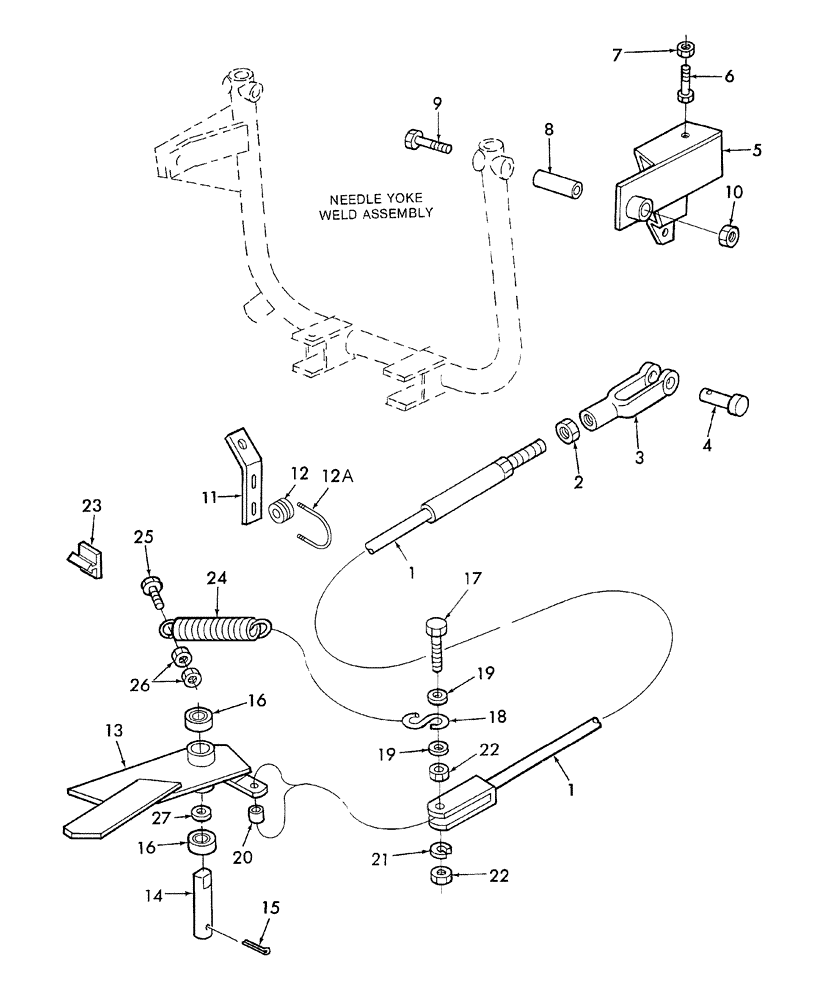

Запчасти Case IH SBX530 (040) - NEEDLE SAFETY LATCH (62) - PRESSING - BALE FORMATION

1

848939

CABLE,1355mm L

1шт.

2

425-115

NUT,5/16"-24, G5

1шт.

3

86629512

YOKE,5/16" - 24

Adjustable

1шт.

4

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

4

89512667

PIN

M2 x 20 mm

1шт.

5

86640955

ARM

1шт.

5

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

6

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

7

825-1410

NUT,M10, Cl 8

1шт.

8

848469

SPACER

1шт.

9

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

10

832-46416

NUT,M16 x 2, Cl 8

1шт.

11

86641004

SUPPORT

Mount

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

12

86543545

GUIDE

Twine, 17.5 mm x 40 mm OD

1шт.

12a

28114

U-BOLT

#10-24 x 1-15/16"

1шт.

225-14110

NUT,#10-24

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

86641594

LATCH

Includes: Ref. 16

1шт.

14

576220

PIN

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

15

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

16

121189

OIL SEAL

Grease, 1-1/4" OD x 1/8" Thick

2шт.

17

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

18

86900721

SPRING

S

1шт.

19

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

20

254146

SPACER,25/64" ID x 5/8" OD x 1/2" L

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

825-1410

NUT,M10, Cl 8

2шт.

23

216328

BUMPER

1шт.

24

86640785

SPRING,Extension, 31.75mm OD x 120.65mm L

1шт.

25

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

26

825-1410

NUT,M10, Cl 8

2шт.

27

495-11106

WASHER,1", SAE

1шт.
