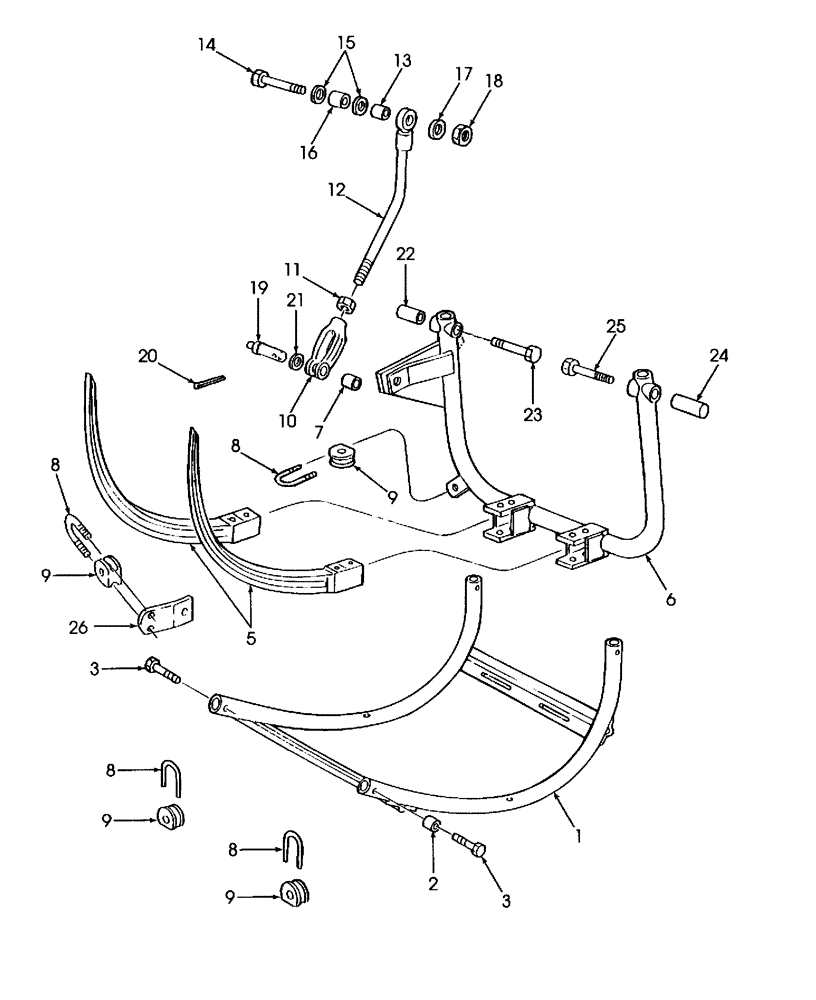

Запчасти Case IH SBX530 (039) - NEEDLE & YOKE, TWINE (62) - PRESSING - BALE FORMATION

1

86635473

GUARD

Needle

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

Hardened, 3/8"

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

2

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

1шт.

3

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

232-4146

NUT,3/8"-16, GC

2шт.

5

86641542

NEEDLE

Eye, Hard Surfaced

2шт.

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

86566268

LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

HH, Self-Locking, CL 8.8, M12 x 1.75 x 35

4шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

12шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

6

86635491

YOKE

Needle, Includes: Ref. 7

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

7

132452

SPACER

1шт.

8

28114

U-BOLT

#10-24 x 1-15/16"

1шт.

495-31025

WASHER,3/16"

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

225-14110

NUT,#10-24

6шт.

9

86543545

GUIDE

Twine

1шт.

10

86641516

CLEVIS

1шт.

11

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

12

86640956

ADJUSTMENT ROD

Needle Yoke, Includes: Ref. 13

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

132447

BUSHING,22.25mm ID x 25.45mm OD x 22mm L

1шт.

14

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

15

86516680

WASHER

2шт.

16

132449

SPACER

1шт.

17

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

1шт.

18

85700693

NUT,5/8" - 11, Gr C

1шт.

19

132469

PIN

Includes: 219-87

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1шт.

21

26382

WASHER

21/32" ID x 1-3/32" OD x .060" (16 Gauge) Thick

1шт.

22

848470

SPACER

1шт.

23

433-1072

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

24

848469

SPACER

1шт.

25

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

26

86641578

BRACKET

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.
