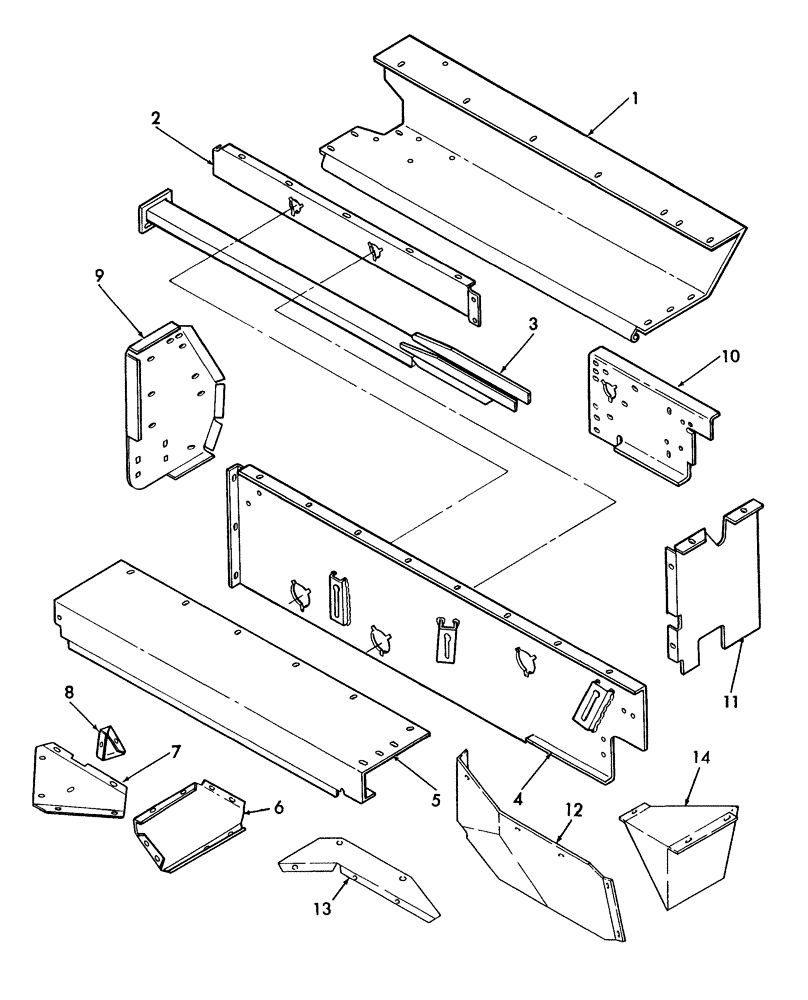

Запчасти Case IH SBX530 (036) - FEEDER SHIELDING, SBX530 (60) - PRODUCT FEEDING

1

86635547

FLOOR

Feeder

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

425-105

NUT,5/16"-18, G5

5шт.

2

848769

SUPPORT

Rotor

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

825-1410

NUT,M10, Cl 8

2шт.

425-105

NUT,5/16"-18, G5

5шт.

3

86641494

GUARD

Hay

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

4

848766

STEEL PLATE

Feeder Front, Serial Range: -HBJ004430

1шт.

4

87711014

D PANEL

Feeder Front, Includes: (10) Ref. 15, Start Serial: HBJ004431

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

5

86635552

PLATE

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

6

86626122

PANEL SUPPORT

Filler

1шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

8шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

825-1410

NUT,M10, Cl 8

8шт.

7

86635545

SUPPORT

Corner, Feeder

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

425-105

NUT,5/16"-18, G5

6шт.

8

848739

FILLER

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

425-105

NUT,5/16"-18, G5

3шт.

9

86635561

SUPPORT

End, Serial Range: -HBJ004430

1шт.

9

87673705

SUPPORT

End, Includes: (3) Ref. 15, Start Serial: HBJ004431

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

10

848697

STEEL PLATE

Feeder Back, Serial Range: -HBJ004430

1шт.

10

87711693

D PANEL

Includes: (3) Ref. 15, Start Serial: HBJ004431

1шт.

11

86641001

SHIELD

Feeder Back, Serial Range: -HBJ004430

1шт.

11

87673700

PROTECTION PLATE

Includes: (2) Ref. 15, Start Serial: HBJ004431

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

425-105

NUT,5/16"-18, G5

4шт.

12

86626122

PANEL SUPPORT

Corner

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

87255

SCREW,Slotted Truss Hd, 5/16" - 18 x 5/8"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

2шт.

13

86626125

SUPPORT

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

492-11031

LOCK WASHER,5/16"

5шт.

14

86626415

DEFLECTOR

Kit, LH, Includes:

1шт.

NSS

NOT SOLD SEPARAT

DEFLECTOR

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

825-1408

NUT,M8, Cl 8

, Start Serial: HBJ004431

3шт.
