Запчасти Case IH SBX530 (032) - FEEDER, 2 ROTOR (60) - PRODUCT FEEDING

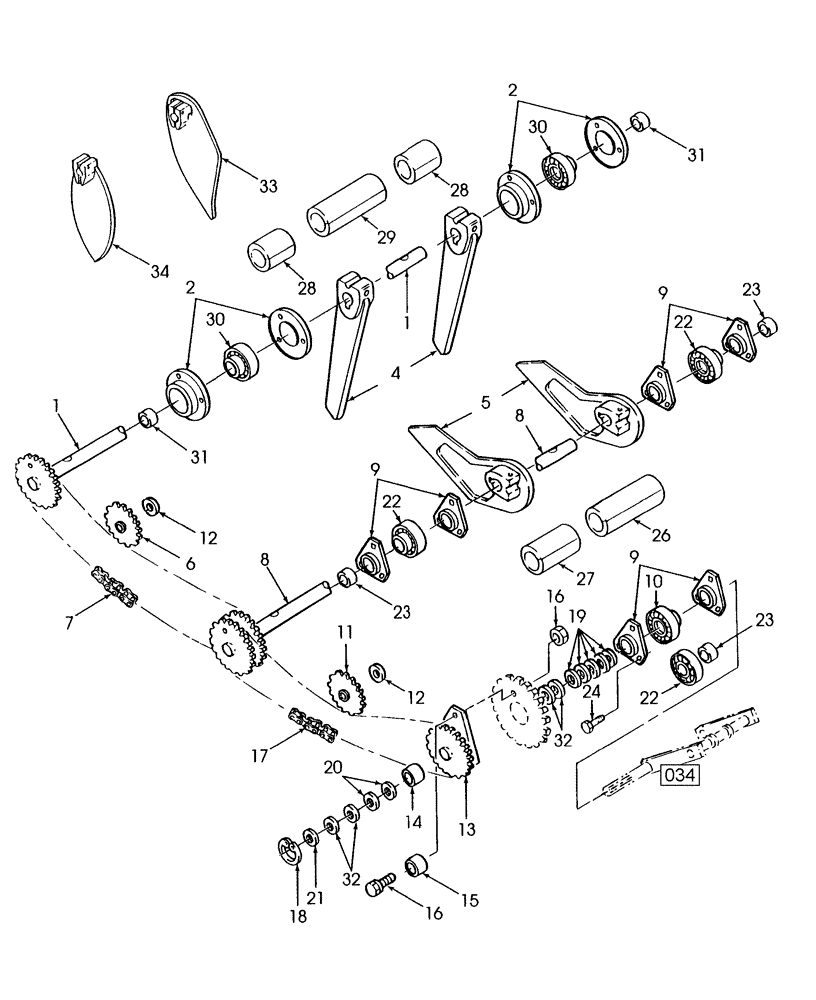

Схема запчастей Case IH SBX530 - (032) - FEEDER, 2 ROTOR (60) - PRODUCT FEEDING
23
31
16
11
2
32
30
5
30
33
20
28
2
9
18
034
23
31
21
22
8
13
29
1
28
22
15
24
34
9
14
12
12
8
16
6
17
22
1
4
19
26
27
7
10
23
9
32

Артикул

Название

Примечание

Количество

1

86641565

SHAFT

RH

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

2шт.

2

662649R1

RETAINER

Flange, Bearing

4шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1410

NUT,M10, Cl 8

6шт.

4

86641567

FINGER

Inch

2шт.

120071

BOLT,Hex, M10 x 65, 8.8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

5

86641566

FINGER

Inch

2шт.

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

6

103244

SPROCKET

Idler, RC50, 17T

1шт.

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

2шт.

495-11066

WASHER,5/8", SAE

1шт.

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

7

848756

CHAIN

Roller, R606 10A1, 80 Total Pitches

1шт.

25194

CONNECTING LINK

Spring Clip

1шт.

8

86526406

SHAFT

LH, 23T / 28T

1шт.

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

9

86620026

FLANGED BEARING

6шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1410

NUT,M10, Cl 8

6шт.

10

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

11

511265

SPROCKET

Idler, 15T

1шт.

280466

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

49637

WASHER,16.5mm ID x 30mm OD x 2.99mm Thk

Special, 5/8"

2шт.

495-11066

WASHER,5/8", SAE

1шт.

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

1шт.

85700693

NUT,5/8" - 11, Gr C

1шт.

12

604937

WASHER,16.7mm ID x 52.4mm OD

2шт.

13

86641570

ARM

23T Sprocket, Includes: Ref. 14 & 15

1шт.

14

388253

SLEEVE

1шт.

15

80046060

SLEEVE

Shear Bolt

1шт.

16

46047

BOLT AND NUT

5/16"-18 x 1-1/2"

1шт.

17

9847046

CHAIN

Roller, RC60H, 84 Total Pitches

1шт.

187609

CONNECTING LINK

Regular, RC60

1шт.

241-4316

CHAIN LINK

Connecting, Spring Clip Type, 60

1шт.

18

100-11137

SNAP RING,#137, Ext

1шт.

19

58630

WASHER,.0299" Thk

1шт.

20

86640786

WASHER

Spindle

2шт.

21

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1-3/8"

1шт.

22

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

3шт.

23

517645R11

COLLAR

Locking, Includes: Set Screw

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

825-1410

NUT,M10, Cl 8

3шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

26

9820205

SHIELD

1шт.

27

9822667

SHIELD

1шт.

28

9822653

SHIELD

2шт.

29

9820206

SHIELD

2шт.

30

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

2шт.

31

557995R11

COLLAR

Locking, Includes: Set Screw

2шт.

32

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

33

86641588

FINGER

LH

2шт.

34

86641589

FINGER

Center

2шт.

Выбрано товаров: 61
