Запчасти Case IH SBX530 (023) - PICKUP DRIVE (60) - PRODUCT FEEDING

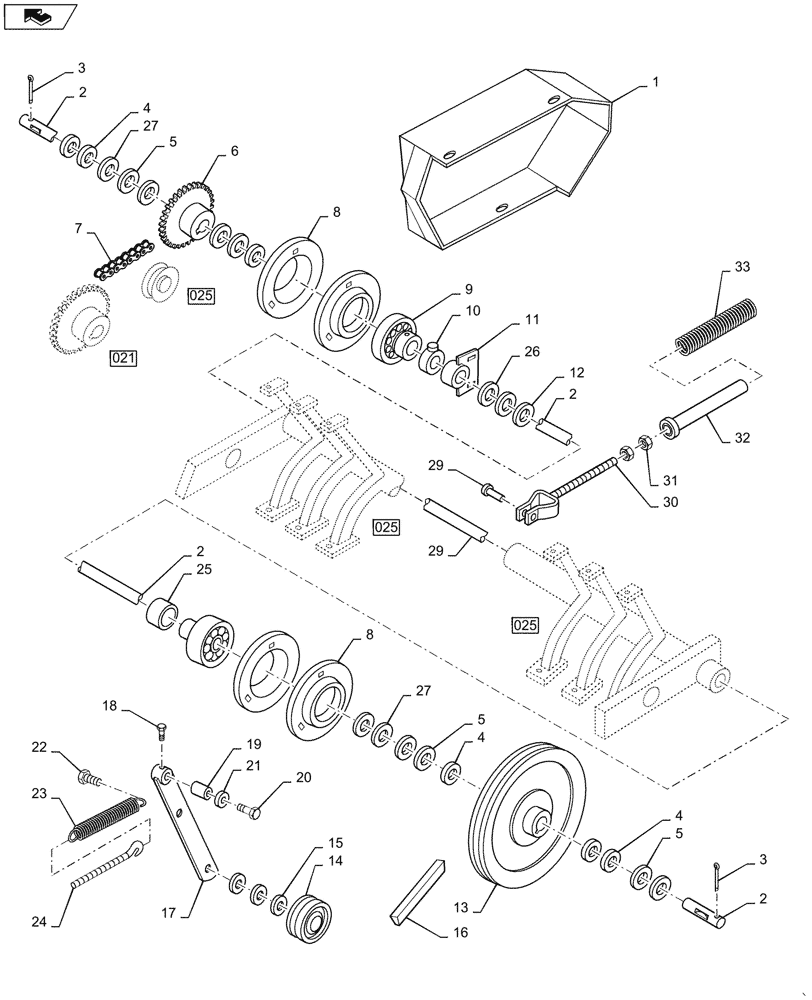

Схема запчастей Case IH SBX530 - (023) - PICKUP DRIVE (60) - PRODUCT FEEDING
021
3
16
2
29
29
24
5
2
21
5
17
18
14
23
27
5
13
4
26
4
27
12
3
2
10
20
4
31
30
8
19
22
8
home
7
1
11
32
33
25
15
2
6
9
025
025
025

Артикул

Название

Примечание

Количество

1

86626118

SHIELD

RH

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

492-11031

LOCK WASHER,5/16"

3шт.

2

9801457

SHAFT

Pickup Drive, SBX520, SBX530, 1.000" OD

1шт.

2

9801462

SHAFT

Pickup Drive, SBX540, 1.125" OD

1шт.

3

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

4

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

4

140108

WASHER,31mm ID x 37mm OD x 1mm Thk

Shim, M1, SBX530

1шт.

4

672

WASHER

SBX540

1шт.

5

26301

WASHER

SBX520, SBX530

1шт.

5

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

SBX540

1шт.

6

86629624

DRIVING SPROCKET

21T, SBX520, 1.000" ID

1шт.

6

86630312

DRIVING SPROCKET

17T, SBX530, 1.000" ID

1шт.

6

86630873

DRIVING SPROCKET

17T , SBX540, 1.125" ID

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

SBX520, SBX540

1шт.

126-24

WOODRUFF KEY,#15, 1/4" x 1"

SBX530

1шт.

7

9621910

CHAIN,2050, 36 Links x 31.75mm = 1143mm

RC2050, 36 Total Pitches, SBX520

1шт.

7

9621911

CHAIN,RC 2050, 35 Links x 31.75mm = 1111.25mm

RC2050, 35 Total Pitches, SBX530, SBX540

1шт.

80025193

CONNECTING LINK

Coupler, Cotter Pin Type

1шт.

86595273

LINK,31.75mm Pitch

Offset, Cotter Pin Type, SBX530, SBX540

1шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

8

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

SBX520, SBX530

4шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

825-1408

NUT,M8, Cl 8

6шт.

8

662649R1

RETAINER

Flange, Bearing, SBX540

4шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1410

NUT,M10, Cl 8

6шт.

9

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

SBX520, SBX530, 1.000" ID

2шт.

9

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

SBX540, 1.125" ID

2шт.

10

165796

COLLAR

1шт.

87591

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/2"

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

11

226036

TUBE

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

12

86529375

WASHER,2.44" ID x 3.5" OD x 0.24" Thk

1шт.

13

86629583

SHEAVE

SBX520, SBX530

1шт.

13

86633414

SHEAVE

SBX540

1шт.

126-24

WOODRUFF KEY,#15, 1/4" x 1"

SBX520, SBX530

1шт.

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

SBX540

1шт.

14

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

15

495-11053

WASHER,1/2", SAE

3шт.

16

86629763

V-BELT,0.66" W x 82.90" L

1шт.

17

848603

ARM

1шт.

18

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

19

334712

BUSHING,11mm ID x 20mm OD x 30mm L

1шт.

20

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

23

86633427

SPRING

Tension, Standard

1шт.

23

86544355

CONNECTING LINK

Optional for Overfeeding

1шт.

Not Illustrated

1шт.

24

27953

EYEBOLT

G2, 3/8"-16 x 5-1/2"

1шт.

425-105

NUT,5/16"-18, G5

2шт.

25

455102R21

COLLAR

Locking, SBX520, SBX530

2шт.

25

557115R11

COLLAR

Locking, SBX540

2шт.

26

86529374

WASHER,2.5" ID x 3.5" OD x 0.13" Thk

2-1/2" ID, 3-1/2" OD x .13" Thick

1шт.

27

86629477

WASHER

1-1/8"

1шт.

28

86544355

CONNECTING LINK

Fixed, Pickup Idler Link Adjustment

1шт.

29

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

1шт.

30

573004

CLEVIS

1шт.

31

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

32

86629628

TUBE

1шт.

33

50564

SPRING

1шт.

Выбрано товаров: 72
