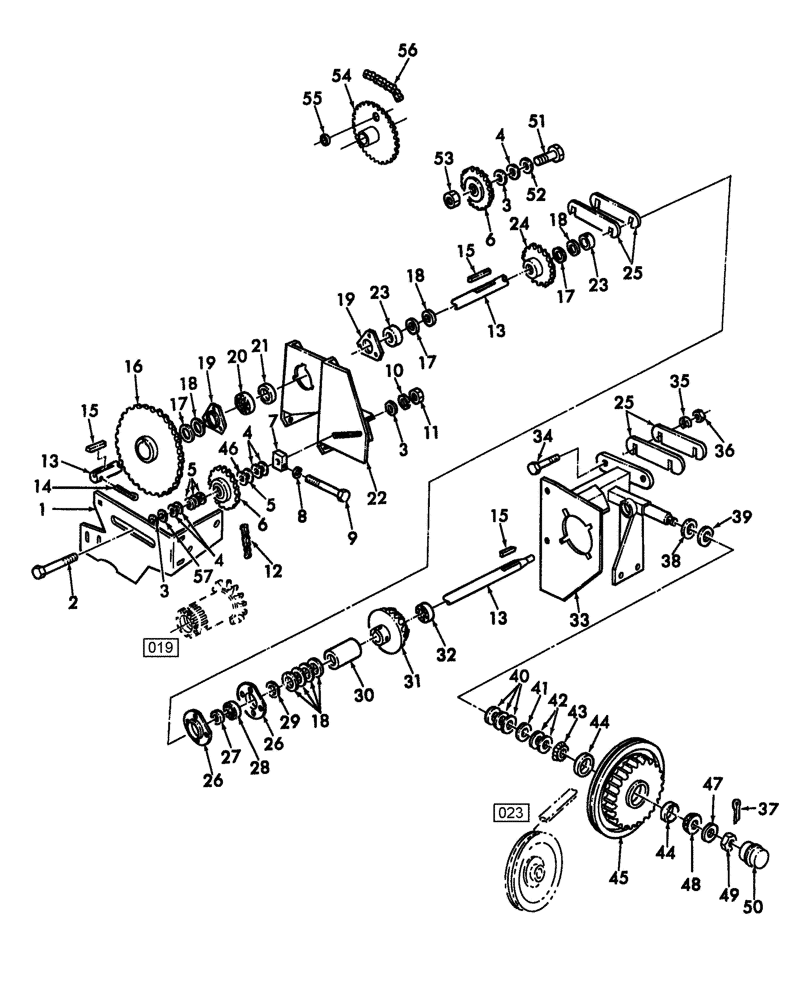

Запчасти Case IH SBX530 (022) - FEEDER DRIVE, SBX530 & SBX540 (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
9848065
SUPPORT
1шт.
88682
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
2шт.
425-106
NUT,3/8"-16, Cl 5
2шт.
2
280547
CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 4", Gr 5
1шт.
3
604937
WASHER,16.7mm ID x 52.4mm OD
3шт.
4
47407
WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk
1шт.
5
495-11066
WASHER,5/8", SAE
1шт.
6
511265
SPROCKET
Idler, 15T
2шт.
7
86641711
BLOCK
3/8"-16 UNC Threads
1шт.
9
280650
BOLT,Hex, 3/8"-16 x 6", G5, Full Thd
1шт.
10
140048
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
1шт.
11
425-1010
NUT,5/8"-11, G5
1шт.
12
848638
CHAIN
Roller, RC60, 66 Total Pitches
1шт.
86595251
LINK,Chain, 19.05mm Pitch
Regular
1шт.
13
9801471
SHAFT
1шт.
14
432-1232
COTTER PIN,3/16" OD x 2" L
1шт.
15
126-47
WOODRUFF KEY,#28, 5/16" x 2 1/8"
3шт.
16
9801473
SPROCKET
35T
1шт.
485-13116
SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt
2шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
2шт.
17
267571
WASHER
1шт.
18
58630
WASHER,.0299" Thk
1шт.
88682
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
3шт.
425-106
NUT,3/8"-16, Cl 5
3шт.
20
470597R91
BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"
1шт.
21
517645R11
COLLAR
Locking, Includes: Set Screw
1шт.
22
848639
BRACKET
1шт.
433-612
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
6шт.
425-106
NUT,3/8"-16, Cl 5
6шт.
23
86640867
SPACER
2шт.
84382
SET SCREW,Hex Soc, 5/16"-18 x 5/8"
2шт.
24
86641548
DRIVING SPROCKET
18T
1шт.
485-13116
SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt
2шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
2шт.
25
848616
SHIM
1шт.
614-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
2шт.
86513238
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
Belleville, 1/2"
4шт.
829-1412
NUT,M12, Cl 10.9
2шт.
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
4шт.
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
4шт.
27
45393
COLLAR
1шт.
28
B92630
BEARING
1шт.
29
130357
WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk
Hardened, M35
1шт.
30
86640967
SPACER
1шт.
485-13116
SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt
2шт.
31
86641552
DRIVE PINION
18T
1шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
2шт.
32
86629503
BALL BEARING,17mm ID x 35mm OD x 10mm W
1шт.
33
86640966
ANGLE
1шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
2шт.
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
2шт.
425-108
NUT,1/2" - 13, Gr 5
2шт.
34
614-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
2шт.
35
86513238
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
Belleville, 1/2"
2шт.
36
829-1412
NUT,M12, Cl 10.9
2шт.
37
733-4032
COTTER PIN,M4 x 32
1шт.
37
432-1020
COTTER PIN,5/32" x 1 1/4"
1шт.
38
9615177
WASHER
Special
1шт.
39
673
WASHER,29mm ID x 41mm OD x 1.52mm Thk
1шт.
40
80245530
WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk
1шт.
41
245532
WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk
1шт.
42
245531
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
1шт.
43
223796
ROLLER BEARING,25.4mm ID x 14.73mm W
1шт.
44
572564R1
BEARING CUP
2шт.
45
86640970
SHEAVE
1шт.
46
86640888
WASHER,.66” ID x 2.00” OD
SBX540
1шт.
47
536293
WASHER
Hardened
1шт.
48
D29266
ROLLER BEARING,1" ID x 0.58"
1шт.
49
412106
SLOTTED NUT,M20 x 1.5, Cl 04
1шт.
50
200734
HUB CAP
1шт.
51
280466
CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 2 1/2", Gr 5
1шт.
52
495-11066
WASHER,5/8", SAE
1шт.
52
49637
WASHER,16.5mm ID x 30mm OD x 2.99mm Thk
Hardened, 5/8"
1шт.
53
85700693
NUT,5/8" - 11, Gr C
1шт.
55
80046060
SLEEVE
Shear Bolt
1шт.
54
86641571
DRIVEN SPROCKET
39T, Includes: Ref. 55
1шт.
56
848630
CHAIN
Roller, RC60, 94 Total Pitches
1шт.
86595251
LINK,Chain, 19.05mm Pitch
Regular
1шт.
57
86640888
WASHER,.66” ID x 2.00” OD
1шт.
Выбрано товаров: 86
