Запчасти Case IH SBX530 (061) - LIGHTING (55) - ELECTRICAL SYSTEMS

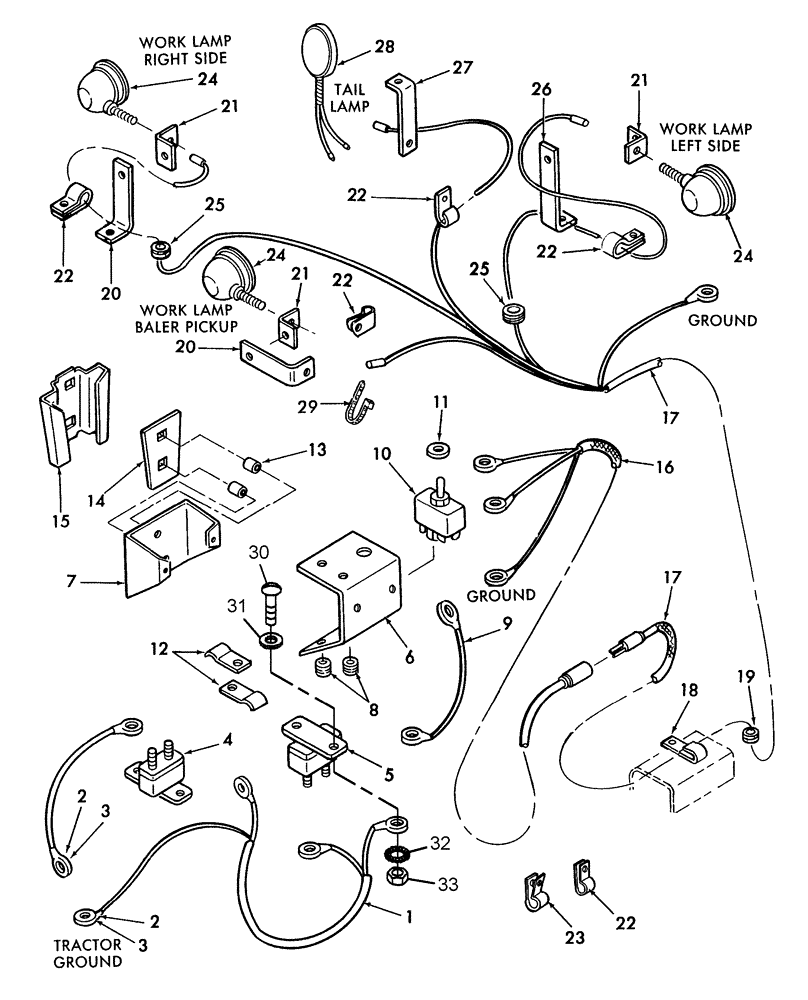

Схема запчастей Case IH SBX530 - (061) - LIGHTING (55) - ELECTRICAL SYSTEMS
23
12
7
32
30
22
17
20
33
18
2
17
31
1
9
16
24
11
13
22
26
10
3
9
25
5
3
21
8
19
22
2
24
22
28
21
21
24
22
14
15
29
27
4
20
25

Артикул

Название

Примечание

Количество

1

603721

WIRE HARNESS

134", Tractor to Control Box

1шт.

2

46431

TERMINAL CONNECTOR,16 - 14 SAE

#10 Stud, 4.8 mm

1шт.

3

76770

TERMINAL CONNECTOR,14 - 16 GA

1/4" Stud, 6.4 mm

1шт.

3

76771

TERMINAL CONNECTOR,14 - 16 GA

3/8" Stud, 9.5 mm

1шт.

4

768115

CIRCUIT BREAKER

15 amp, Between Power Source and Control Box

1шт.

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

492-11010

LOCK WASHER,#10

2шт.

225-14110

NUT,#10-24

2шт.

5

768110

CIRCUIT BREAKER

10 Amp, Auto Reset

1шт.

81743

SCREW,Slotted Truss Hd, #8 - 32 x 1/2"

2шт.

492-11008

LOCK WASHER,#8

2шт.

225-14108

NUT,#8-32

1шт.

6

86633391

PANEL

Control

1шт.

There is no Decal used to Indicate Light Selection.

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

7

86633392

COVER

1шт.

8

46288

GROMMET

2шт.

9

PL

PROCURE LOCALLY

WIRE, 5", 16 Gauge, Switch to Circuit Breaker

1шт.

10

627237

FAN SWITCH

Toggle, SPDT

1шт.

11

619099

WASHER

1шт.

12

44429

CLAMP,9.6mm ID, 10.3mm Bolt Hole, J Type

2шт.

87101

SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

13

86633393

SPACER

2шт.

14

9801636

BRACKET

Mounting

1шт.

15

847590

BRACKET

Bracket

1шт.

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

16

858847

WIRE HARNESS

104", Control, Serial Range: Box-Lamps

1шт.

17

858848

WIRE HARNESS

216"

1шт.

18

134579

WIRE CLAMP,J

10шт.

19

682052

GROMMET

1-3/4" OD x 1" ID

1шт.

Prior to P.I.N. HBJ_______

1шт.

19

708115

GROMMET

2" OD x 1-3/8" ID

1шт.

P.I.N. HBJ_______ & After

1шт.

20

86633380

ANGLE

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

825-1410

NUT,M10, Cl 8

2шт.

21

86620769

BRACKET

3шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

825-1410

NUT,M10, Cl 8

3шт.

22

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

19шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

87256

SCREW,Slotted Truss Hd, 5/16" - 18 x 1"

4шт.

425-105

NUT,5/16"-18, G5

4шт.

24

310516A1

HEADLIGHT

Sealed Beam Trade #4411

3шт.

25

136256

GROMMET

2шт.

26

86633382

SUPPORT

Lamp

1шт.

27

86633378

BRACKET

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

825-1410

NUT,M10, Cl 8

1шт.

28

86514198

TAIL LAMP

Includes:

1шт.

T34857

BULB,C6, #1157, 12.8V

1шт.

86537132

KIT

Lens, Black

1шт.

853711

LENS

Lens, Red

1шт.

853709

GASKET,1.65mm Thk

2шт.

29

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

30

280633

SCREW,Sl Truss Hd, #6 - 32 x 1/2"

2шт.

31

495-31016

WASHER,#6

1шт.

32

493-41014

LOCK WASHER,Ext, #6

1шт.

33

193-1003

NUT,Keps, w/LW,#6-32

1шт.

Выбрано товаров: 68
